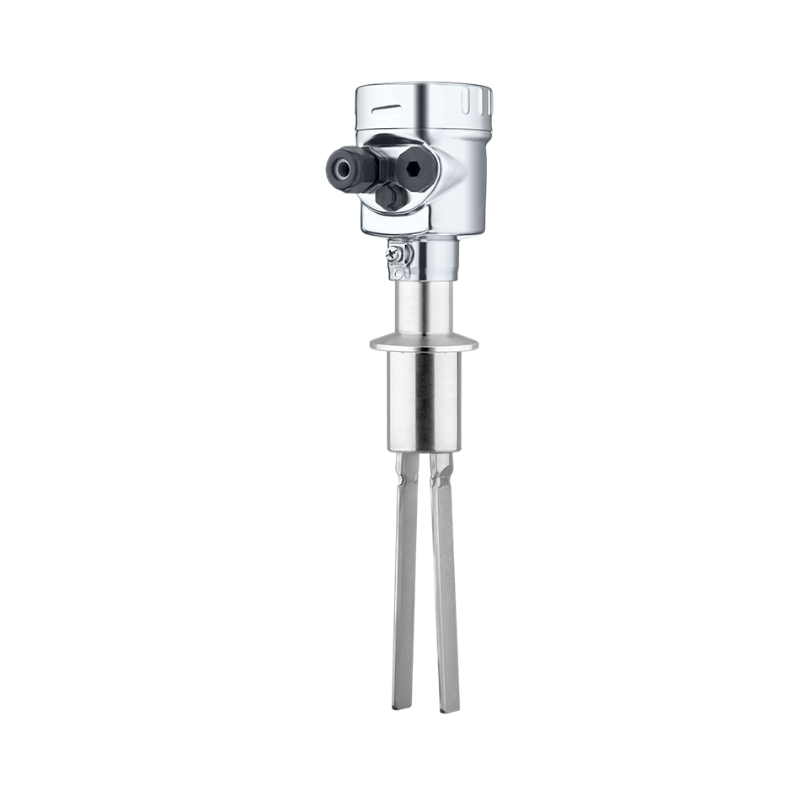

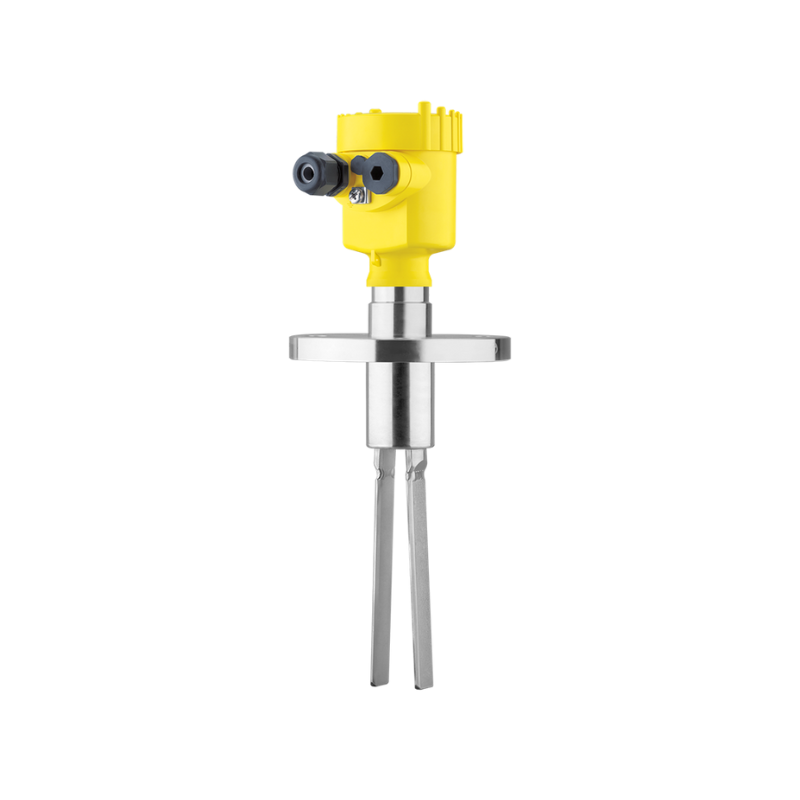

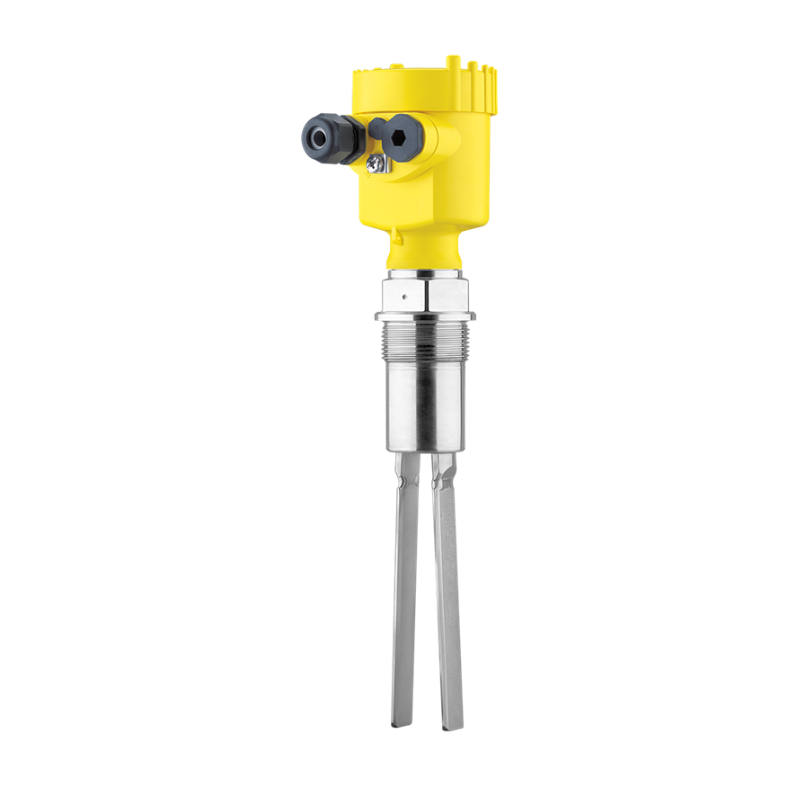

VEGA WAVE61 VEGAWAVE 61 Vibrating level switch for powders
$228.00
The VEGAWAVE 61 vibrating level switch is specifically engineered for reliable point level detection of fine powders and dust-like materials. Its advanced tuning-fork design with optimized vibration characteristics ensures exceptional performance in challenging powder applications where material buildup and false signals are common concerns. Ideal for use in silos, hoppers, and processing equipment, it effectively prevents overfilling and indicates empty conditions. The self-cleaning vibration mechanism minimizes material adhesion, making it perfect for cohesive powders like flour, cement, titanium dioxide, and other fine chemicals. With robust construction and maintenance-free operation, the VEGAWAVE 61 provides dependable performance in demanding industrial environments. Easy to install and suitable for various mounting positions, this versatile switch offers a cost-effective solution for improving process safety and efficiency in powder handling operations across food, pharmaceutical, chemical, and building materials industries.
Application area
Your benefit
- Low costs for maintenance through robust design
- Minimum time and cost expenditure thanks to simple setup without medium
- Reliable function through product-independent switching point
| Measuring range - Distance | – [Meter – Foot] |
|---|---|
| Process temperature | -50 … 250 °C [°C – °F] |
| Process pressure | -1 … 25 bar [Bar – kPa – psi] |
| Version | Standard |
| Materials, wetted parts | 316L |
| Threaded connection | ≥ G1½, ≥ 1½ NPT |
| Flange connection | ≥ DN50, ≥ 2" |
| Seal material | no media contact |
| Hygenic fittings | Clamp ≥ 2", DN50 – DIN32676, ISO2852 |
| Housing material | Plastic |
| Protection rating | IP66/IP68 (0,2 bar) |
| Output | Relay (DPDT) |
| Ambient temperature | -40 … 80 °C |
| Scope | ATEX / Europe |
| Explosion protection | Intrinsic safety "i" |
| SIL qualification | SIL2 |
| Indication | Pluggable display module PLICSLED |
