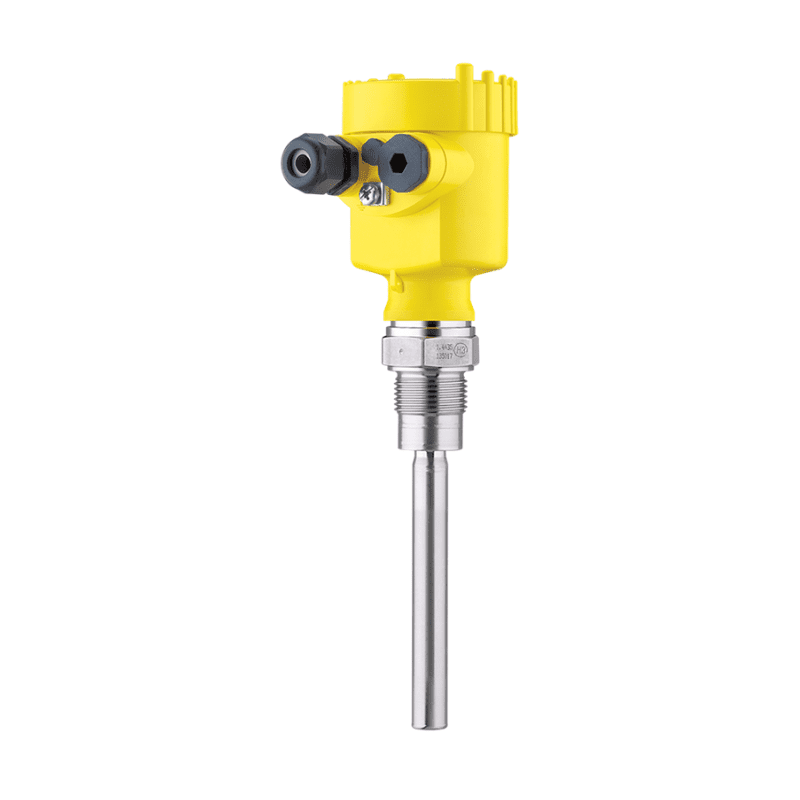

VEGA VIB61 Vibrating level switch for granular bulk solids

VEGA VIB61 Vibrating level switch for granular bulk solids

$500.00

The VEGAVIB 61 is a robust vibrating level switch designed specifically for reliable point level detection of granular and powdery bulk solids. It is the ideal solution for preventing overfilling or ensuring empty detection in silos, hoppers, and conveyors. Its heavy-duty tuning fork is resistant to material buildup and effectively handles challenges like fine powders or coarse granules. The self-cleaning vibration mechanism ensures minimal maintenance and reliable operation, even in dusty industrial environments. Easy to install and calibrate, the VEGAVIB 61 provides a cost-effective and durable solution for industries such as plastics, food, cement, and chemicals. This versatile switch helps optimize your processes by preventing material blockages and ensuring continuous material flow, safeguarding your equipment and enhancing operational efficiency.

VEGA VIB61 Vibrating level switch for granular bulk solids

Category: Tags: , Brand:

Application area

It detects the limit level reliably and with millimetre accuracy directly at the mounting position. The smooth surface of the vibrating rod, without sharp corners or edges, prevents bulk material from getting stuck or jammed and is easy to clean.
The VEGAVIB 61 is a level switch for granular and coarse-grained bulk solids. The VEGAVIB 61 detects reliably and accurately the min. or max. limit level. The smooth surface of the vibrating rod, without corners and edges, avoids jamming of the bulk solid and is easy to clean.

Your benefit

  • Low maintenance costs
  • Minimum time and cost expenditure thanks to simple setup without medium
  • Reliable function through product-independent switching point
Measuring range - Distance

– [Meter – Foot]
Process temperature

-50 … 250 °C [°C – °F]
Process pressure

-1 … 16 bar [Bar – kPa – psi]
Version

Standard
Detection of solids in water
Materials, wetted parts

316L
Threaded connection

≥ G1, ≥ 1 NPT
Flange connection

≥ DN 32, ≥ 1½"
Hygenic fittings

Clamp ≥ 1½" – DIN32676, ISO2852
Slotted nut ≥ 2", DN50 – DIN 11851
hygienic fitting F40 with compression nut
Hygienic screw connections ≥ DN50 tube ø53 – DIN11864-1-A
Hygienic fittings ≥ DN25 – DIN11864-1-A
Hyg. clamp connection DIN11864-3-A; DN50 Rohr ø53
Hygienic fittings ≥ DN50 pipe ø70 – DIN11864-1-A
Seal material

no media contact
Housing material

Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)
Protection rating

IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)
Output

Relay (DPDT)
Contactless electronic switch
Transistor (NPN/PNP)
Two-wire
NAMUR
Ambient temperature

-40 … 80 °C
Scope

ATEX / Europe
CSA / Canada
FM / USA
EAC (GOST) / Belarus
EAC (GOST) / Kazakhstan
EAC (GOST) / Russia
IEC / worldwide
KOSHA / Korea
NEPSI / China
UKR Sepro / Ukraine
INMETRO / Brazil
CCOE / India
Explosion protection

Intrinsic safety "i"
Flameproof enclosure "d"
Dust ignition protection "t"
Foodstuffs/Pharma

3A
EHEDG
FDA
SIL qualification

SIL2
Indication

Pluggable display module PLICSLED
