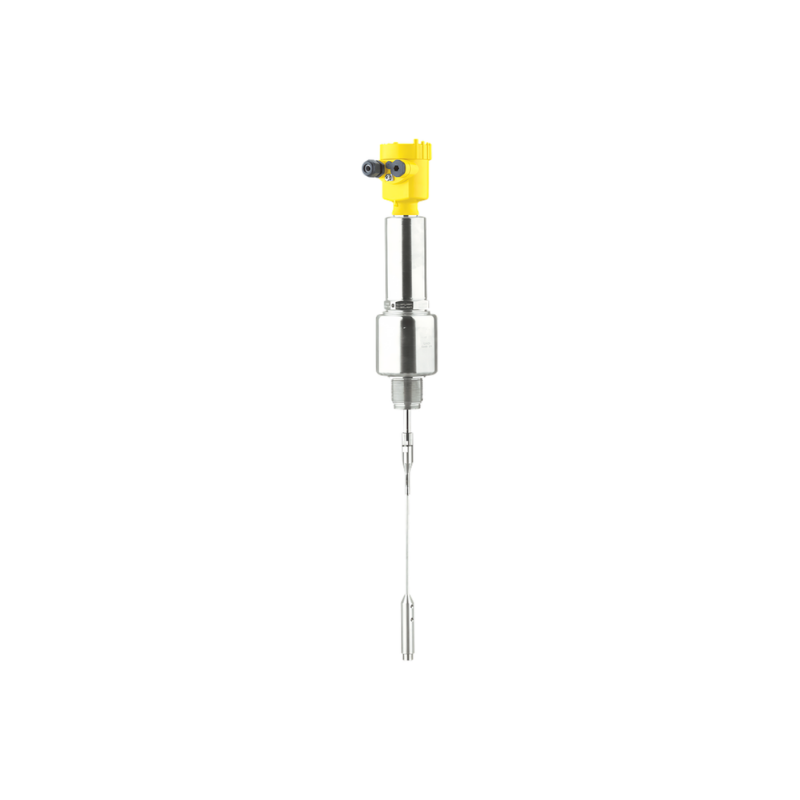

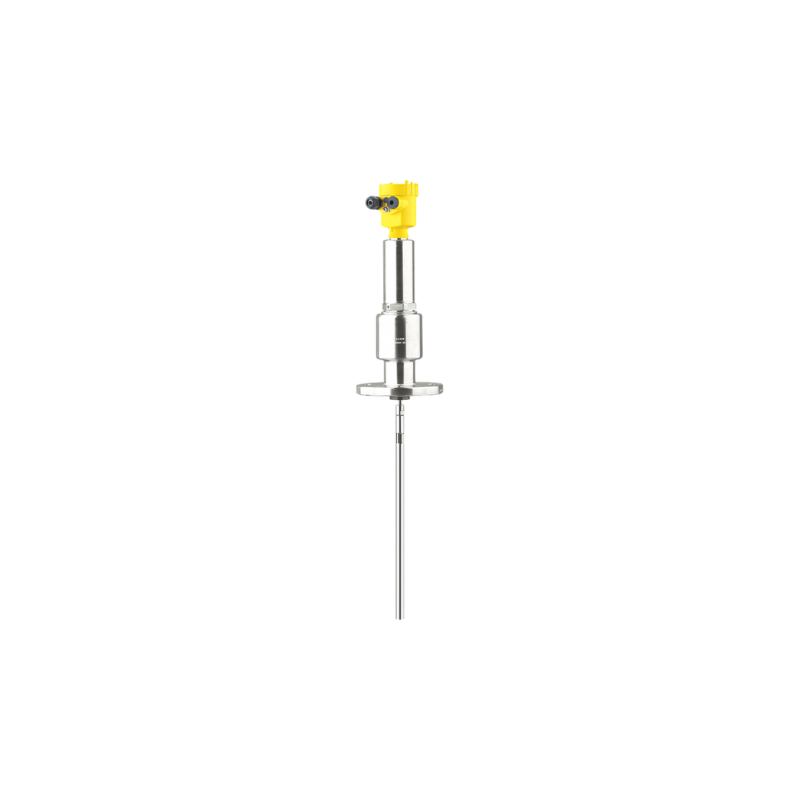

VEGAFLEX 86 TDR sensor for continuous level and interface measurement of liquids

VEGA FLEX 86 VEGAFLEX 86 TDR sensor for continuous level and interface measurement of liquids

$700.00

The VEGAFLEX 86 TDR sensor utilizes robust guided wave radar technology for reliable continuous level and interface measurement in demanding liquid applications. This durable instrument provides accurate detection of both main liquid levels and interfaces between immiscible liquids, even under challenging conditions. Designed for harsh industrial environments in chemical, petrochemical, and pharmaceutical industries, it maintains stable performance despite foam, turbulence, or aggressive media. With rugged construction and minimal maintenance requirements, the VEGAFLEX 86 delivers dependable monitoring for critical liquid measurement applications where operational reliability is essential for process safety and efficiency.

VEGAFLEX 86 TDR sensor for continuous level and interface measurement of liquids

Category: Tags: , Brand:

Application area

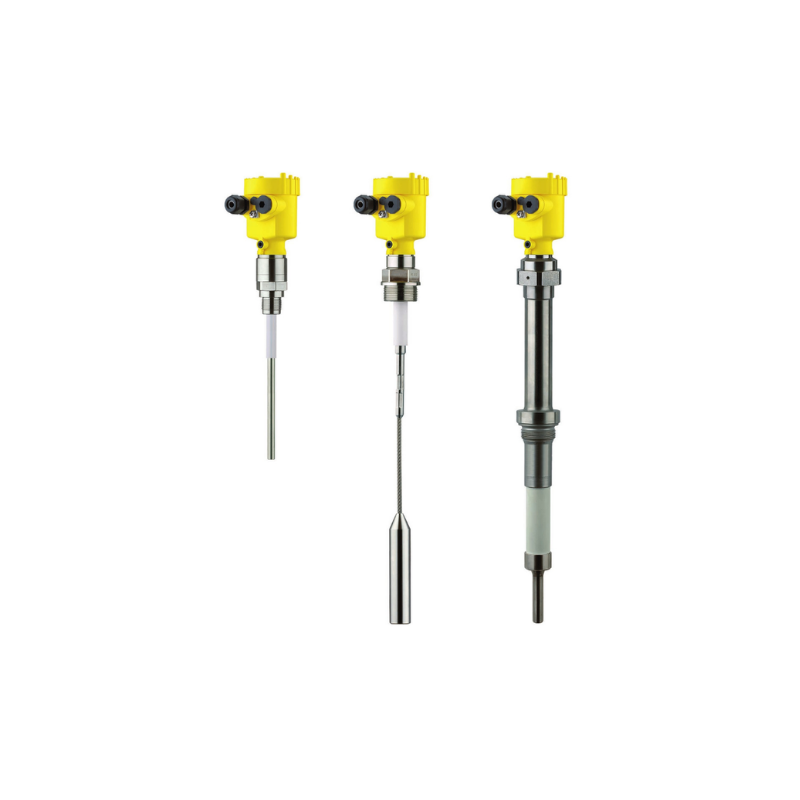

Cable, rod or coaxial sensor. Its robust, mechanical design and the second process seal, the Second Line of Defense, protect the sensor for demanding measurement tasks. Process temperature: -196 … 450° C; process pressure: -1 … 400 bar
The VEGAFLEX 86 level sensor measures maintenance-free all liquids under extreme pressure and temperature conditions. Even in applications with buildup, foam generation and condensation, the sensor delivers precise and reliable measured values. In saturated steam applications, a special reference probe ensures a density-independent measurement. The VEGAFLEX 86 offers an economical level and interface measurement for your application.

Your benefit

  • The guided adjustment enables a simple, time-saving and reliable setup
  • Shortenable probes offer a simple standardisation and highest flexibility in the planning
  • Comprehensive diagnostic possibilities ensure a maintenance-free operation and hence a high plant availability
Measuring range - Distance

75 m [Meter – Foot]
Process temperature

-196 … 450 °C [°C – °F]
Process pressure

-1 … 400 bar [Bar – kPa – psi]
Accuracy

± 2 mm
Version

Coax version ø 21.3 mm with multiple hole
Coax version ø 42.2 mm with single hole
Coax version ø 42.2 mm with multiple hole
Exchangeable rod ø 16 mm
Exchangeable cable ø 2 mm with gravity weight
Exchangeable cable ø 4 mm with gravity weight
Exchangeable cable ø 2 mm with centering weight
Exchangeable cable ø 4 mm with centering weight
Materials, wetted parts

316L
Alloy C22 (2.4602)
316
Flange connection

≥ DN25, ≥ 1"
Seal material

FFKM
graphit and ceramic
Housing material

Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)
Protection rating

IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)
Output

Profibus PA
Foundation Fieldbus
Two-wire: 4 … 20 mA/HART
Modbus
Four-wire: 4 … 20 mA/HART
Ambient temperature

-40 … 80 °C
Scope

ATEX / Europe
CSA / Canada
FM / USA
EAC (GOST) / Belarus
EAC (GOST) / Kazakhstan
EAC (GOST) / Russia
IEC / worldwide
NEPSI / China
UKR Sepro / Ukraine
INMETRO / Brazil
CCOE / India
UKEX
Explosion protection

Intrinsic safety "i"
Flameproof enclosure "d"
Dust ignition protection "t"
Ship approval

ABS
BV
CCS
DNV
LR
NK
RINA
Overfill protection

WHG
VLAREM II
SIL qualification

SIL2
Adjustment

PLICSCOM
PC, PACTware and DTM
HART-Communicator
Software (e. g. AMS™, PDM)
Steam boiler approval

EN12952-11, EN12953-9
Threaded connection

≥ G¾, ≥ ¾ NPT
Indication

Display/adjustment module PLICSCOM
VEGADIS 81
VEGADIS 82
