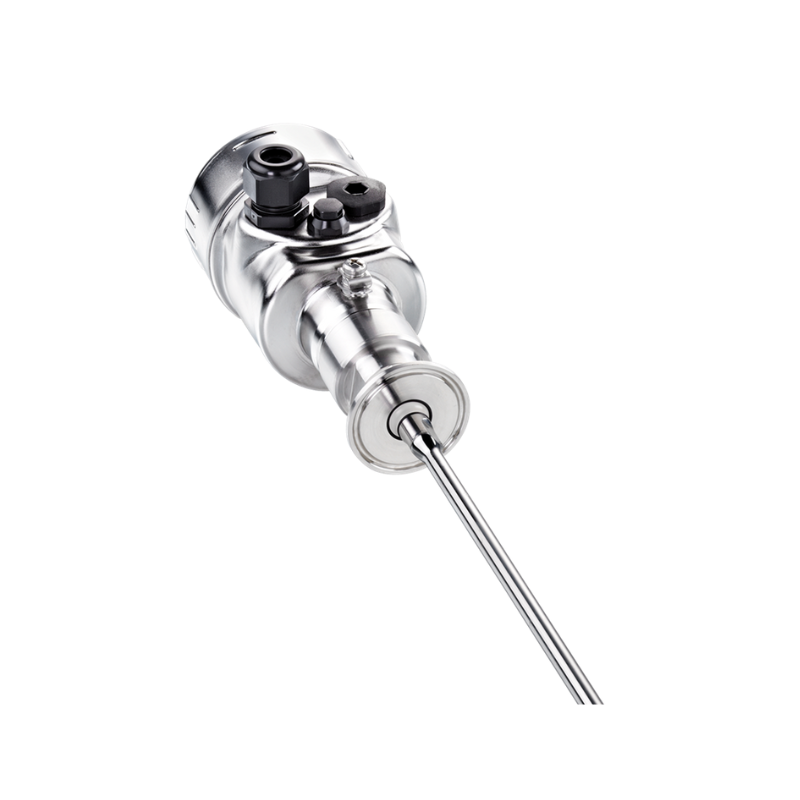

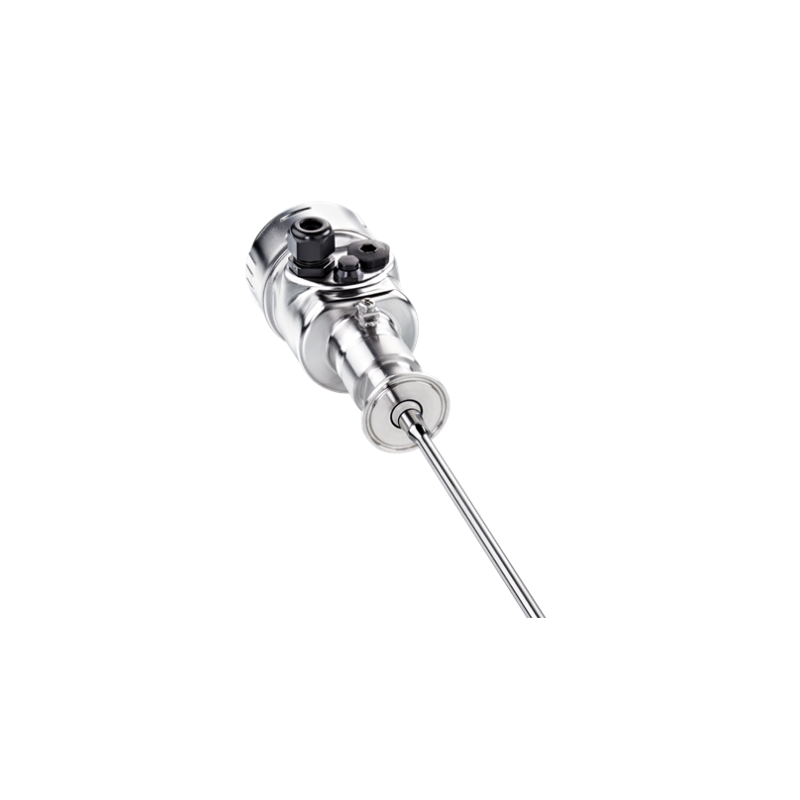

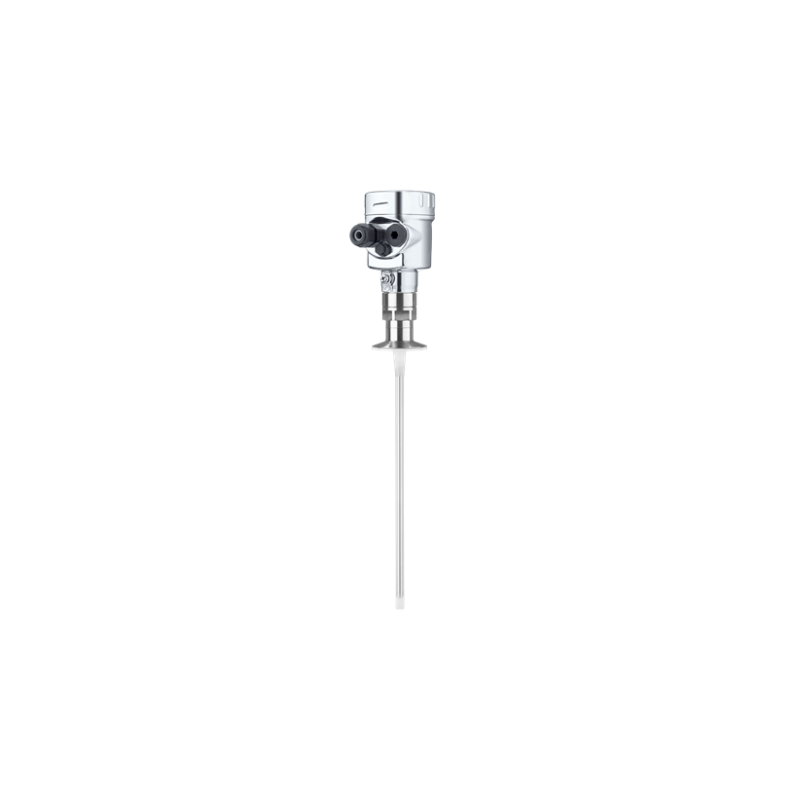

VEGA FLEX 83 VEGAFLEX 83 TDR sensor for continuous level and interface measurement of liquids
$1,780.00
The VEGAFLEX 83 TDR sensor employs advanced guided wave radar technology for precise continuous level and interface measurement in liquid applications. This sophisticated instrument accurately detects both the primary liquid level and the interface between two immiscible liquids, even in challenging process conditions. Ideal for chemical processing, petroleum, and pharmaceutical industries, it delivers reliable performance despite foam, turbulence, or low dielectric constants. With robust construction and minimal maintenance needs, the VEGAFLEX 83 provides dependable continuous monitoring for complex liquid measurement tasks where accuracy and reliability are critical for process efficiency.
VEGAFLEX 83 TDR sensor for continuous level and interface measurement of liquids
Application area
Your benefit
- The gap-free hygienic design ensures simple and reliable cleanability
- The maintenance-free operation increases the plant efficiency
- The guided adjustment enables a simple, time-saving and reliable setup
| Measuring range - Distance | 75 m [Meter – Foot] |
|---|---|
| Process temperature | -196 … 450 °C [°C – °F] |
| Process pressure | -1 … 400 bar [Bar – kPa – psi] |
| Accuracy | ± 2 mm |
| Version | Coax version ø 21.3 mm with multiple hole |
| Materials, wetted parts | 316L |
| Flange connection | ≥ DN25, ≥ 1" |
| Seal material | FFKM |
| Housing material | Plastic |
| Protection rating | IP66/IP68 (0,2 bar) |
| Output | Profibus PA |
| Ambient temperature | -40 … 80 °C |
| Scope | ATEX / Europe |
| Explosion protection | Intrinsic safety "i" |
| Ship approval | ABS |
| Overfill protection | WHG |
| SIL qualification | SIL2 |
| Adjustment | PLICSCOM |
| Steam boiler approval | EN12952-11, EN12953-9 |
| Threaded connection | ≥ G¾, ≥ ¾ NPT |
| Indication | Display/adjustment module PLICSCOM |
