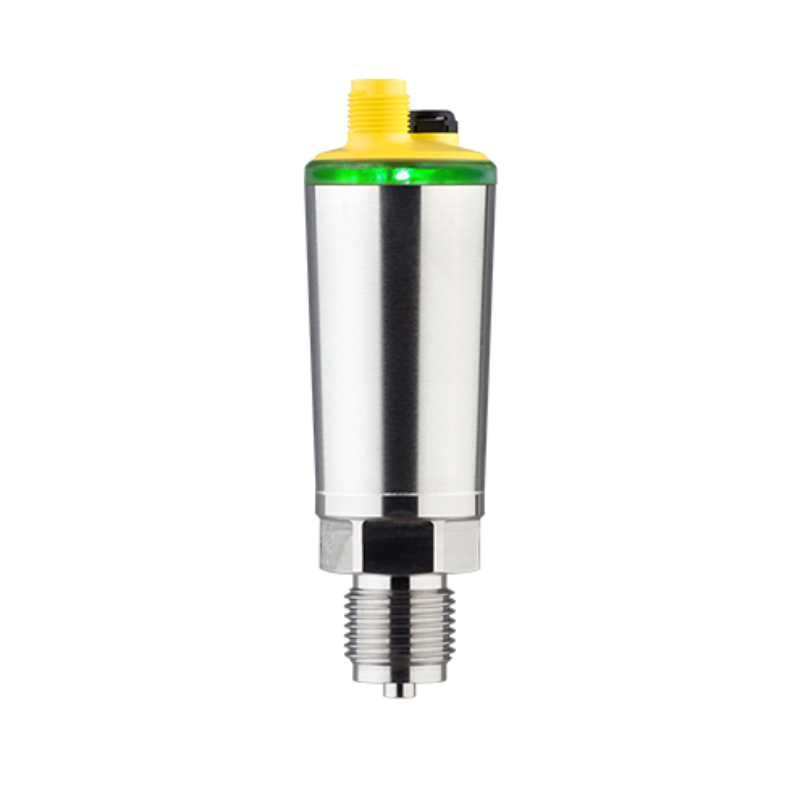

VEGABAR 29 Pressure sensor with switching function
VEGABAR 29 Pressure sensor with switching function
VEGABAR 29 Pressure sensor with switching function

VEGA BAR 29 VEGABAR 29 Pressure sensor with switching function

$520.00

The VEGABAR 29 pressure sensor combines accurate hydrostatic measurement with reliable switching functions for comprehensive process monitoring. This versatile instrument provides precise level and pressure measurement while offering configurable switching outputs for alarm and control functions. Suitable for various tanks, vessels, and liquid applications, it delivers dependable performance in water treatment, chemical processing, and industrial automation. Featuring robust construction and easy configuration, the VEGABAR 29 integrates both continuous measurement and discrete switching in a single device, providing cost-effective solutions for diverse industrial monitoring requirements with simplified installation.

VEGABAR 29 Product information

Category: Tags: , Brand:

Application area

From thread ½”, hygienic connections, universal connection G1″ for hygiene adapter, 4 … 20 mA, three-wire: PNP/NPN, 4 … 20 mA, IO-Link, Ex and hygiene approval, coloured 360° status display
VEGABAR 29 is a universal pressure transmitter with metal measuring cell for measurement of gases, vapours and liquids up to 130 °C. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock keeping.

Your benefit

  • Universally applicable due to fully welded metallic measuring cell
  • Coloured 360° status display, adjustable
  • Easy integration into control systems through IO-Link communication
Measuring range - Pressure

-1 … 1000 bar [Bar – kPa – psi]
Process temperature

-40 … 130 °C [°C – °F]
Accuracy

0.3 %
Materials, wetted parts

316L
Threaded connection

≥ G¼, ≥ ¼ NPT
Hygenic fittings

Clamp ≥ 2", DN50 – DIN32676, ISO2852
Clamp ≥ 1" – DIN32676, ISO2852
Clamp ≥ 1½" – DIN32676, ISO2852
Slotted nut ≥ 1½", ≥ DN40 – DIN 11851
Slotted nut ≥ DN25 – DIN 11851
SMS 1145 DN51
SMS DN38
Hygienic fittings ≥ DN25 – DIN11864-1-A
Hygienic fittings ≥ DN40 – DIN11864-1-A
Varivent N50-40
SMS DN25
Ingold connection PN10
Varivent F25
Protection rating

IP65
IP68 (0,5 bar)/IP69
Output

4 … 20 mA
Three-wire (PNP/NPN, 4 … 20 mA)
IO-Link
Ambient temperature

-40 … 70 °C
Scope

ATEX / Europe
IEC / worldwide
NEPSI / China
UKR Sepro / Ukraine
INMETRO / Brazil
CCOE / India
KTL Korea
TIIS / Japan
IA
c-UL-us
UKEX
Explosion protection

Intrinsic safety "i"
Dust ignition protection "t"
Increased safety "e"
Foodstuffs/Pharma

3A
EHEDG
FDA
EG1935/2004
Ship approval

ABS
BV
CCS
DNV
LR
NK
RINA
Adjustment

Smartphone / Tablet / PC via Bluetooth
PC, PACTware and DTM, IODD
Indication

360° status display
