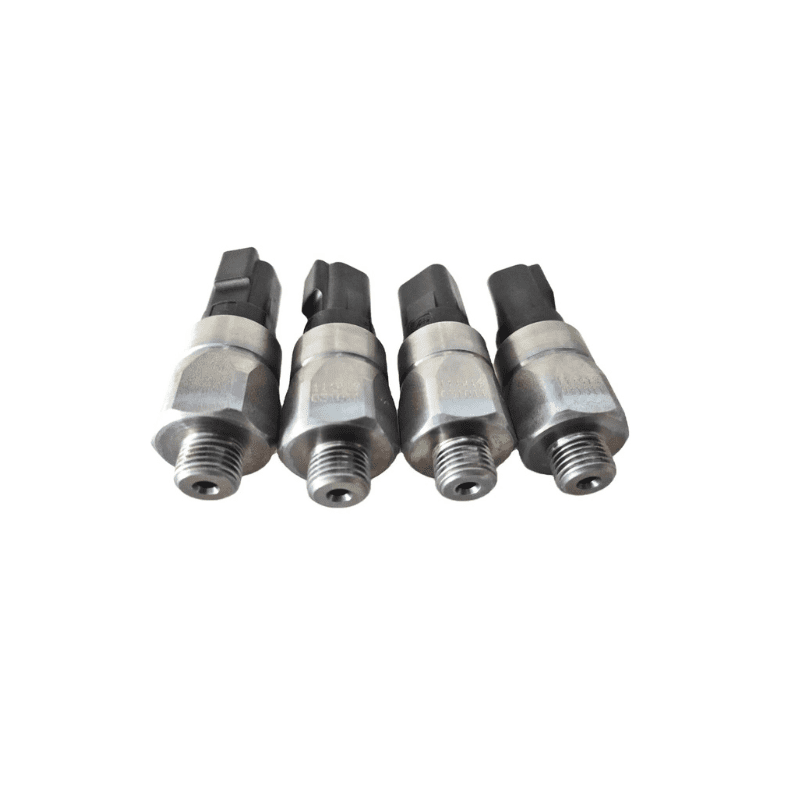

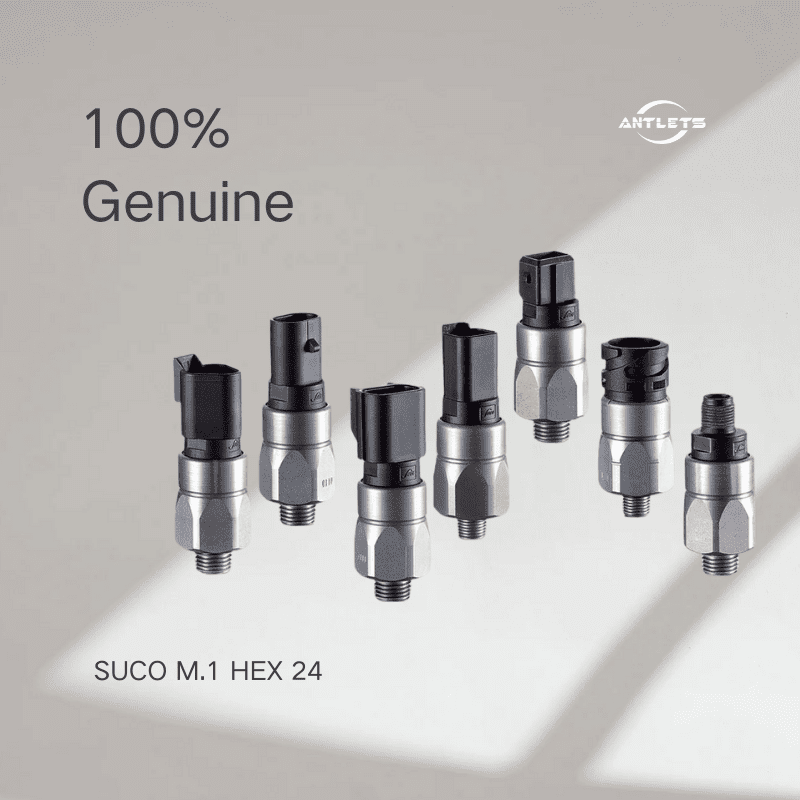

SUCO M.1 hex 24 integrated Pressure switches hex 24 with integrated connector

Overview

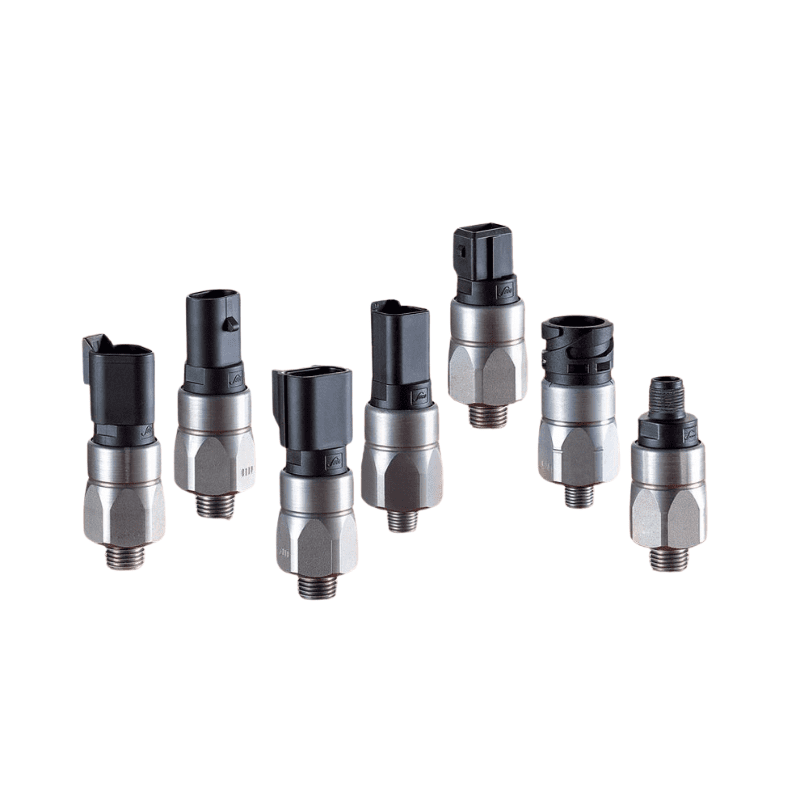

Diaphragm Pressure Switch Series 0110, 0112, 0114, 0116, 0118, 0120,0122, 0124 Piston pressure switch Series 0111, 0113, 0115, 0117, 0119, 0121,0123, 0125
Large selection of electrical plug-in types for quick attachment and reliable connection High protection class (to IP67 or IP6K9K)
Compact and rugged design in industrial environments like construction and agricultural machinery or commercial vehicles
Switching point can be set on site with adjusting screw in the connector
High overpressure resistance, compact, small switches,available as normally open or normally closed
Vacuum switches with integrated connector available on request

Operating and use

The pressure switch opens or closes an electrical circuit when a certain (adjustable) pressure is reached. A diaphragm or piston is moved by the increase in pressure. The amount of the diaphragm deflection or piston travel depends on the force of the pressure applied and the (adjustable) spring tension. At a predetermined deflection of the diaphragm or movement of the piston, a electrical contact will be opened or closed.

Conditions governing the use of the product

The following general instructions are to be observed at all times to ensure the correct, safe use of the pressure switch:
• Observe without fail the warning notices and other instructions laid down in the operating instructions.
• Observe the applicable safety regulations laid down by the regulatory bodies in the country of use.
• Do not exceed the specified limits for e.g. pressures, forces, moments or temperatures under any circumstances.
• Give due consideration to the prevailing ambient conditions (temperatures, atmospheric humidity, atmospheric pressure, etc.).
• Never subject pressure switch to intense blows or high vibrations.
• Never expose the pressure switch to severe side impacts or vibrations.
• Use the product only in its original condition. Do not carry out any unauthorized modifications.
• Remove all items providing protection in transit such as foils, caps or cartons.
• Disposal of the above-named materials in recycling containers is permitted.

Operating conditions

Media temperatures other than room temperature (20°C):
The effects of extreme temperatures (relative to the room temperature) can lead to pronounced variations in the switching point or failure of the pressure switch.
Type of protection IPxx:
Type testing does not apply to all ambient conditions without limitations. The user is responsible for verifying that the plug-and-socket connection complies with the specified rules and regulations of CE, or whether it may be used for specialized purposes other than those intended by us.

Use with oxygen:
Diaphragm pressure switch (0110, 0112, 0114, 0116, 0118, 0120, 0122 and 0124):
If oxygen is used, the applicable accident prevention regulations must be observed. In addition, we recommend a maximum operating pressure of 10 bar, which should not be exceeded.
Piston pressure switch (0111, 0113, 0115, 0117, 0119, 0121, 0123 und 0125):
Piston pressure switches are not suitable for gaseous media, particularly oxygen.
Protection against overpressure:
The static overpressure safety is included in the technical data. The overpressure safety corresponds to the hydraulic, pneumatic part ofthe pressure switch. The dynamic rating of the overpressure safety is smaller than 30 to 50%.

Installation

Mechanical / pneumatic / hydraulic:
With a size 24 open-ended wrench (to DIN 894 or similar), install the pressure switch, by means of the hexagon connector, in the corresponding pressure socket.
For sealing the system use a standard copper gasket of the appropriate dimensions.
Electrical:
Connect the cable to the electric connection

Entry into service

1. When putting the pressure switch into service, please observe the applicable safety regulations laid down by the governing bodies in the country of use.
2. Using a continuity tester, wire up the electrical connection (2).
3. If using a testing lamp as a continuity tester, observe the maximum permissible switching capacity (see technical data)
4. First, screw in the adjustment screw (3) as far as it will go. To adjust the pressure switch use a screwdriver with a 2.5 mm wide blade.
5. Adjust the pressure switch to the desired actuating pressure (a test pressure gauge is required).
6. Ease off the adjustment screw (3) to a sufficient extent to cause the pressure switch to trip (continuity tester reacts).
7. If necessary. adjust the trip pressure setting by turning the adjustment screw

Removing the pressure switch

When removing the pressure switch, observe the following important instructions:
• The system from which the pressure switch shell be moved, must be de-energized and free of pressure.
• All the relevant safety regulations must be observed.
• Use a size 24 open-ended wrench (to DIN 894 or similar), to remove the pressure switch.
