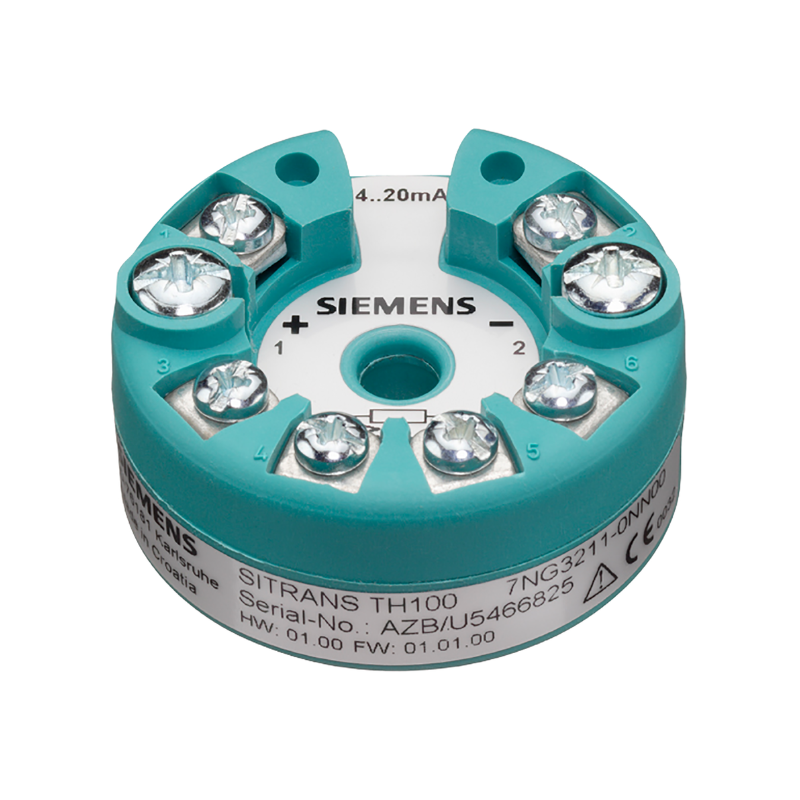

SIEMENS SITRANS TH100 7NG3211
Original price was: $250.00.$215.00Current price is: $215.00.
The SITRANS TH100, which represents an economical alternative by dispensing with galvanic isolation and universal sensor connection, is ideally suited for Pt100 measurements.
For the parameterization, the SIPROM T software is used in combination with the modem for SITRANS TH100/TH200.
Its compact design makes the SITRANS TH100 suitable for retrofitting measuring points or replacing analog transmitters.
The transmitter is available in a non-Ex version and in a version suitable for use in hazardous areas.
SITRANS TH100 7NG3211
Overview
The SITRANS TH100, which represents an economical alternative by dispensing with galvanic isolation and universal sensor connection, is ideally suited for Pt100 measurements.
For the parameterization, the SIPROM T software is used in combination with the modem for SITRANS TH100/TH200.
Its compact design makes the SITRANS TH100 suitable for retrofitting measuring points or replacing analog transmitters.
The transmitter is available in a non-Ex version and in a version suitable for use in hazardous areas.
Benefits
- Measures temperature with a linear output signal
- High accuracy across entire ambient temperature range
- Reduces plant noise
- Alarm signal for sensor break or short circuit according NAMUR 43
- Explosion protected executions for US, Canada and Europe
- Slim design, ideal for upgrade of installed Pt100 probes with a 4 .. 20mA signal
- Rugged design, fully potted electronic
Application

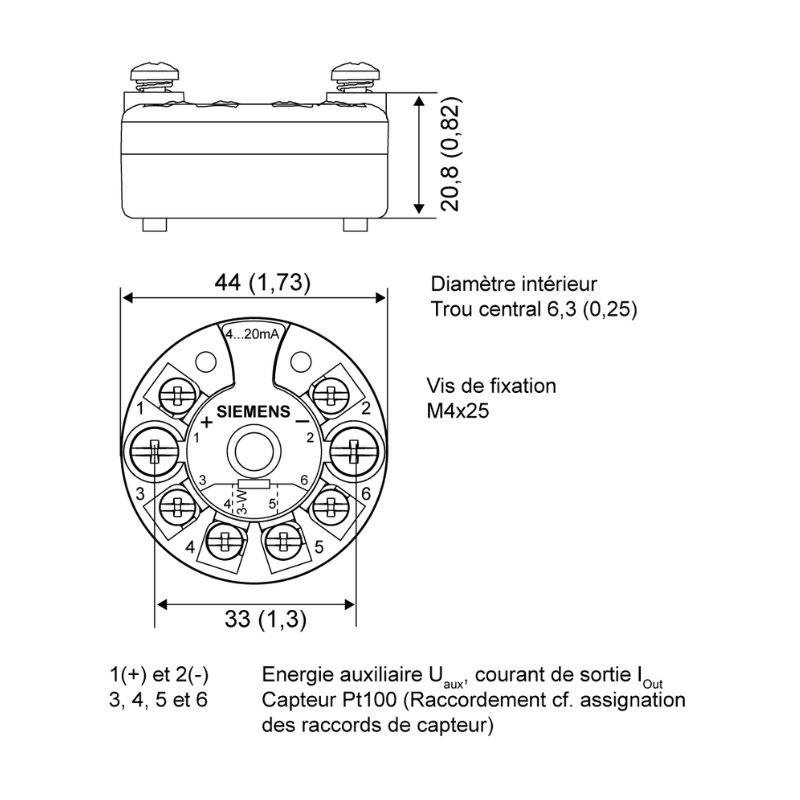

The SITRANS TH100 transmitter can be used for temperature measurement with Pt100 resistance thermometers in all industries. Its compact size means that it can be installed in connection heads of type B or larger.
The output signal is a load-independent direct current of 4 to 20 mA which is proportional to the temperature.
Parameterization is implemented over the PC using the parameterization software SIPROM T and the modem for SITRANS TH100/TH200. If you already have a “Modem for SITRANS TK” (article number 7NG3190-6KB), you can continue to use this for parameterization of the SITRANS TH100.
Transmitters of the “intrinsically safe” type of protection can be installed within potentially explosive atmospheres. The devices meet the directive 2014/34/EU (ATEX) as well as the FM and CSA requirements.
| Input type | Pt100 according to IEC 60751 |
|---|---|
| Connection type | 2, 3, 4-wire connection |
| Measuring accuracy | Measuring span <250 °C (450 °F):< 0.25 °C (0.45 °F) |
| Repeatability | < 0.1 °C (0.18 °F) |
| Measuring range | -200 … +850 °C (-328 … +1562 °F) |
| Output | Output signal:4 … 20 mA, 2-wire |
| Ambient temperature | -40 … +85 °C (-40 … +185 °F) |
| Material | Molded plastic |
| ATEX explosion protection | II 1 G Ex ia IIC T6…T4 Ga |
| Other certificates | EAC Ex, NEPSI |
| Software requirements for SIPROM T | Windows ME, 2000, XP, Win 7, 8 and 10; in connection with RS 232 modem, also Windows 95, 98 and 98 SE |
