SIEMENS SITRANS FX330 7ME2610/7ME2611/7ME2710/7ME2711 Vortex Flowmeter For Steam Hot Water Industrial Gases Measuring
$15,000.00
The SIEMENS SITRANS FX330 Vortex Flowmeter (Models: 7ME2610/7ME2611/7ME2710/7ME2711) is designed for precise flow measurement of steam, hot water, and industrial gases. Built with robust materials, it ensures reliable performance in demanding industrial environments. Siemens’ advanced technology guarantees accuracy and durability.
Catalog sheet SITRANS FX330 （7ME2610/7ME2611/7ME2710/7ME2711）
Benefits
• Integrated pressure and temperature compensation
• Temperature compensation for saturated steam included as standard
• High measuring accuracy
• Maintenance-free sensor
• Non-wearing, fully welded stainless steel construction with high resistance to corrosion, pressure and temperature
• SIL2 certified according to IEC 61508 Edition 2
Application
• Measurement of saturated steam and superheated steam
• Steam boiler monitoring
• Heat metering of steam and hot water
• Measurement of consumption of industrial gases
• Measurement of consumption in compressed air systems
• Monitoring of compressor output
• Evaluation of Free Air Delivery (FAD)
• SIP and CIP processes in the food, beverage and pharmaceutical industries
• Measuring of conductive and non-conductive liquids
• Safety-related measurement in SIL applications (SIL2)

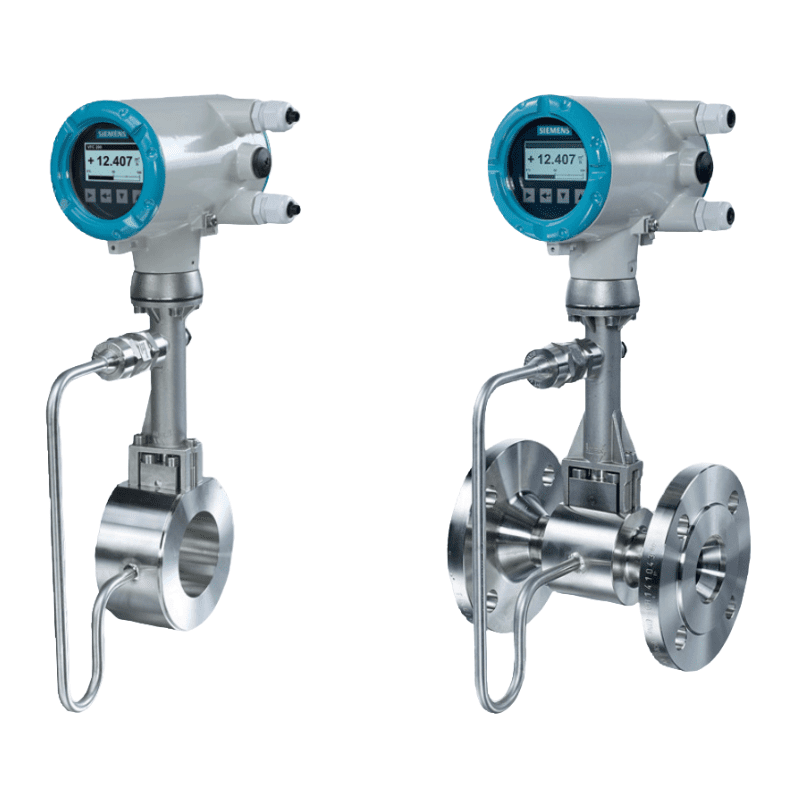

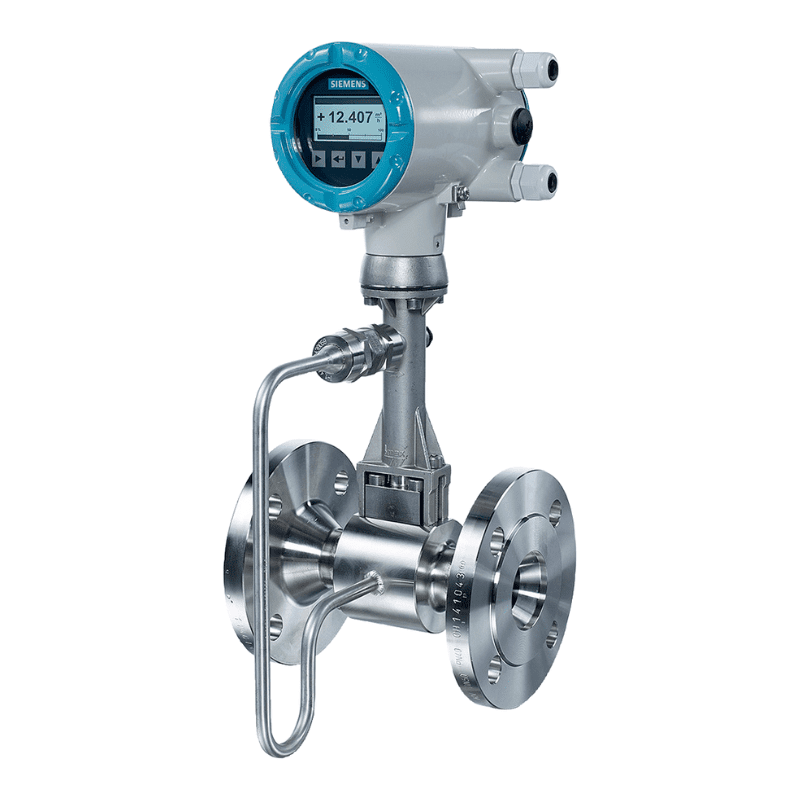

| Nominal size flanged version | DN15 to DN300 (½” to 12”) |
|---|---|

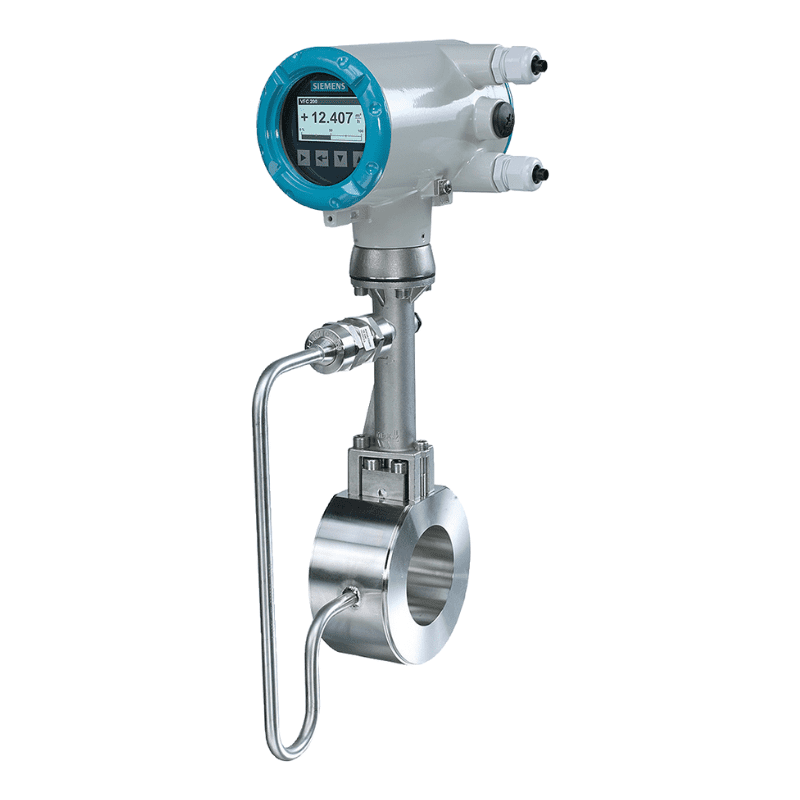

| Nominal size sandwich version | DN15 to DN100 (½” to 4”) |
| Process values | Volume flow, mass flow, corrected volume flow, density, temperature, pressure, heat energy |
| Accuracy | Steam and gases: +/- 1% Liquids: +/- 0.75% |
| Current output | 4 – 20 mA HART (loop powered) |
| Digital output | Pulse (max. 1000 Hz), frequency, status, limit switch |
| Communication | HART 7, Profibus PA and Foundation Fieldbus in preparation |
| Pressure rating | PN 10 – 100; Class 150 – 600 |
| Medium temperature | -40 … 240 °C (-40 … 464 °F) |
| Material sensor | Stainless steel 1.4404 (316L), Hastelloy C22 on request |
| Transmitter enclosure | Die-cast aluminium |
| Enclosure rating | IP66 / 67 (NEMA 6) |
| Connection | EN 1092-1; ASME B16.5 Wafer design (centering rings included) |
| Remote transmitter | Connection cable up to 50m (164 ft), remote version in preparation |
| Temperature sensor | Standard integrated temperature sensor |
| Pressure sensor | Optional integrated pressure sensor with or without isolation valve |
| Display and keypad | High-resolution graphical display and 4 operating keys (alternative use magnet pen) |
| Ex approvals | ATEX II2 G Ex ia – QPS IS Class I Div.1 – IECEx II2 G Ex ia ATEX II2 G Ex d – QPS XP Class I Div.1 – IECEx II2 G Ex d ATEX II3 G Ex nA – QPS NI Class I Div. 2 – IECEx II3 G Ex nA ATEX II2 D Ex tb – QPS DIP Class II, III Div. 1 – IECEx II2 D Ex tb |
| Safety integration level (SIL) | SIL2 according to IEC 61508 |
| Application examples | chemical, power, and oil and gas installations |
