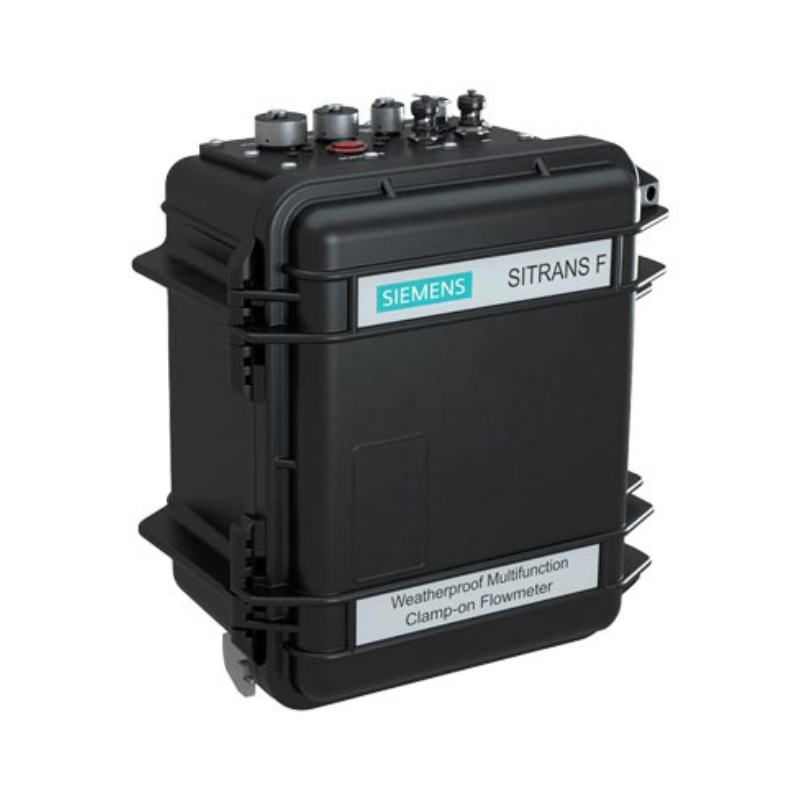

SIEMENS SITRANS FS290 7ME374 Clamp-on Ultrasonic Flow Measurement System
$15,000.00
The Siemens SITRANS FS290 is a clamp-on ultrasonic flow measurement system designed for non-invasive monitoring of liquids in industrial pipelines. It features easy installation without process interruption, high accuracy, and robust construction for harsh environments. Ideal for water, chemicals, and process fluids.
The SITRANS FST090 flow transmitter builds on the innovative technology of the FST020 and FST030, offering identical operation. When paired with the FSS200 clamp-on sensors, it handles a wide range of challenging applications.
Advantages:
– Quick installation: no need to cut pipes or stop flow
– Maintenance-free: sensors require no cleaning or upkeep
– No moving parts, avoiding risks of wear or clogging
– No pressure drop or energy loss
– Wide turndown ratio with precise measurement
Main Applications:
This portable device is designed specifically for liquid ultrasonic flow measurement. Typical use cases include:
– Temporary inspection in water supply and drainage systems (cooling/hot water flow, leak detection)
– Emergency flow monitoring such as in fire protection systems
– Temporary replacement of fixed instruments sent for repair or calibration
– Periodic verification of installed clamp-on sensors
| Type | Clamp-on Standard Portable |
|---|---|
| Sensors | FSS200: 1 path |
| Transmitter | FST090 |
| Medium | Liquid |
| Nominal diameter | DN10 – |
| Accuracy | 1% |
| Approvals | CE, UL, ULc |
| Integration | SIMATIC PDM |
| Communication | MODBUS |
| Target industries | Water |
