SIEMENS SITRANS FS230 7ME372 Clamp-on Ultrasonic Flowmeter Highly Accurate For Liquid Applications
$10,500.00
The SIEMENS SITRANS FS230 is a high-precision clamp-on ultrasonic flowmeter designed for liquid applications. Its non-invasive design allows for easy installation without cutting pipes, ensuring minimal disruption. Ideal for industrial monitoring, it delivers reliable, accurate flow measurements in various liquid processes.
SIEMENS SITRANS FS230 7ME372 Clamp-on Ultrasonic Flowmeter
SITRANS FS offers versatile flow measurement for liquids and gases. Choose a non-invasive clamp-on solution for cost-effective and fast installation,avoiding process downtime. Alternatively,choose an inline version for direct media contact. Whether your application is standard or complex,you get reliable performance across various industries, including water, chemical, oil & gas and hydrogen
Overview

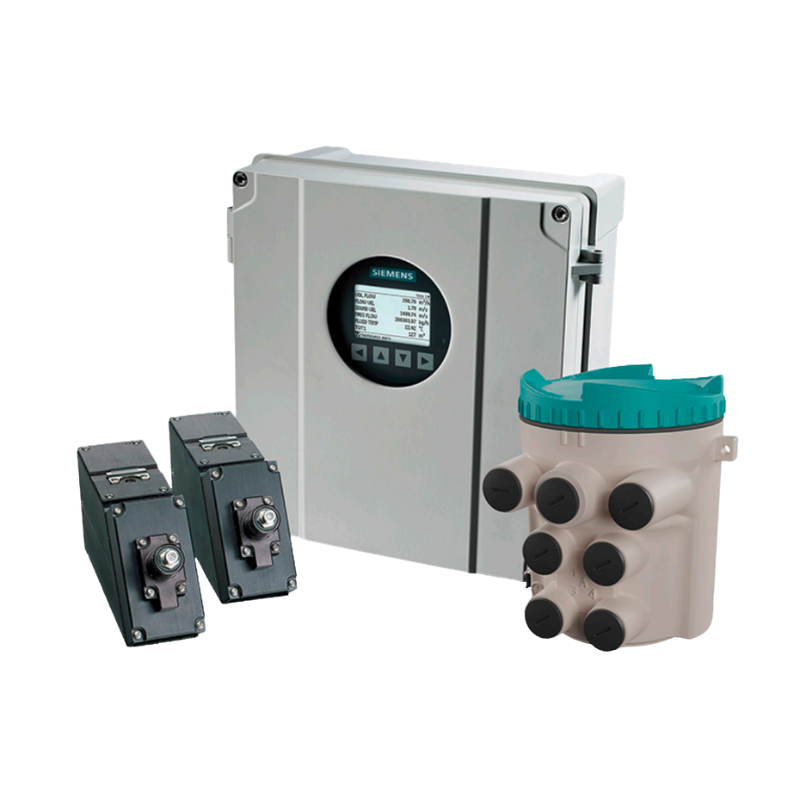

SITRANS FST030 with FSS200 and external DSL
SITRANS FS clamp-on ultrasonic flowmeters provide highly accurate measurement while minimizing installation time and maintenance expense.
Benefits
- Easy installation; no need to cut pipe or stop flow
- Minimal maintenance; external sensors do not require periodic cleaning
- No moving parts to foul or wear
- No pressure drop or energy loss
- Wide turn-down ratio
- Single or dual path with internal DSL, up to four paths with external DSL option
Application
- Water industry
- Raw water
- Potable water
- Chemicals
- Wastewater industry
- Raw sewage
- Effluent
- Sludges
- Mixed liquor
- Chemicals
- HVAC industry
- Condensers
- Hot & cold water systems
- Power industry
- Nuclear
- Fossil
- Hydroelectric
- Processing industry
- Process control
- Batching
- Rate indication
- Volumetric and mass measurement
SITRANS FS230 hydrocarbon functions are ideal for applications carrying crude oil, refined petroleum or liquefied gas.
Standard volume (high end system)
- Standard (net) volume flow measurement
- Suitable for use in leak detection systems
- Mass flow output measurement
- Chemical and petrochemical processing
- Precise identification of interfaces on multi-liquid pipelines
- Product identification
- Standard density indication
- Applications with multiple liquids having a wide viscosity range
- Automatic gross volume compensation due to viscosity
SITRANS FS230 is ideal for most natural and process gas industry applications, including:
- Checkmetering
- Allocation
- Flow survey verification
- Lost and unaccounted for (LAUF) gas analysis
- Production
- Storage
The FS230 can be supplied with an external DSL option that allows for up to four paths with two additional analog inputs. The External DSL enclosure can be installed in a Zone 1 or Div 1 area near the sensors and measurement pipe using short sensor cables, with communication cable to transmitter up to 150 meters away.
System information and selection guide
| Type | Clamp-on High-End |
|---|---|
| Sensors | FSS200: 1-4 paths |
| Transmitter | FST030 |
| Medium | Liquid or Gas |
| Nominal diameter | DN10 – |
| Accuracy | 0.5% |
| Approvals | CE, ATEX, IECEx, FM, |
| Integration | SIMATIC PDM |
| Communication | MODBUS |
| Target industries | Water |
