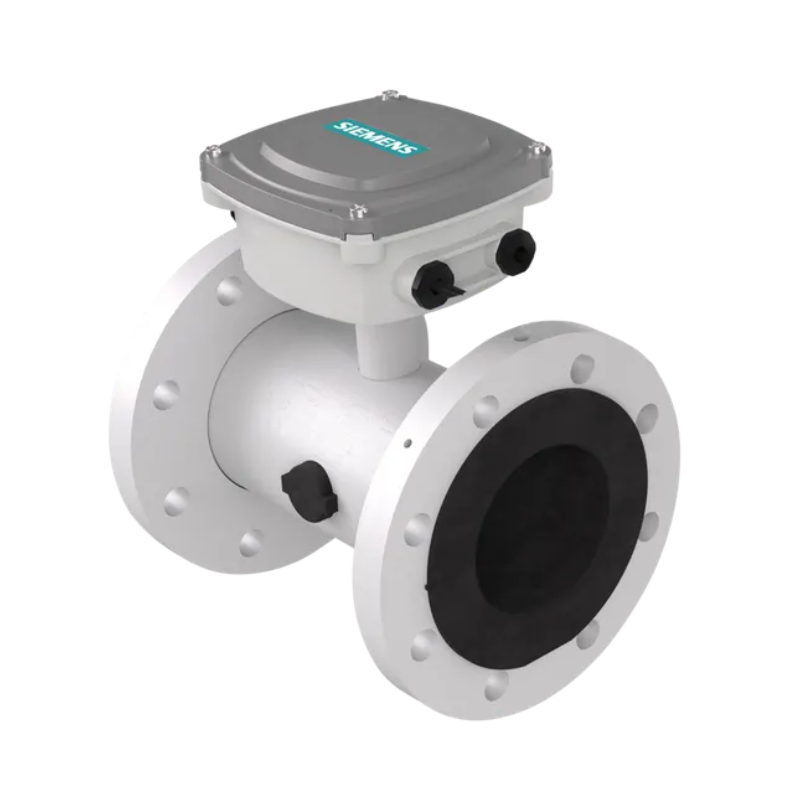

SIEMENS SITRANS FMS500 Sensor 7ME653 for Any Water Application

SIEMENS SITRANS FMS500 Sensor 7ME653

Overview

The SITRANS FMS500 is a magnetic flowmeter sensor suitable for volume flow measurement of liquids (conductive) and is the ideal product for applications in water abstraction,wastewater treatment,water distribution networks, and irrigation.
The rugged, fully welded design supports direct burial, constant flooding and to stand up a wide range of harsh chemicals found in water-based applications in many different industries.
Designed for highly accurate measurement in low-flow conditions,these meters can measure from very low velocities up to 10 m/s, giving it a very wide measurement range.
Combined with a flowmeter transmitter it is a traditional externally powered electromagnetic flowmeter system

Benefits

• Zero Up and Zero Down installation capabilities
• NBR rubber liner for all water and wastewater applications
• EPDM liner specifically for drinking water applications requiring special approvals
• Soft elastomer facing provides high abrasion resistance
• Increased low flow accuracy for water leak detection
• Rugged construction with no moving parts for maintenance-free
operation over many years
• Simple on-site upgrade to IP68 of a standard sensor allowing underground installation, permanent immersion or underwater installation
• Integrated grounding electrodes – no grounding rings required for many applications
• Short delivery time
• Built-in length according to ISO 20456 (up to DN 400 mm)
• SENSORPROM™ Technology provides an automatic upload of startup settings and calibration data for easy commissioning
• Designed to allow in-situ verification for easy performance check
• In conformity with ISO 4064, OIML R49 and EN 14154
• Custody transfer approvals for cold water billing (MI-001)

Application

• Water abstraction
• Water treatment
• Water distribution network (leak detection management)
• Custody transfer water meters
• Irrigation
• Waste water treatment
• Filtration plant (e.g. reverse osmosis and ultra-filtration)
• Industrial water applications
The SITRANS FMS500 with its NBR or EPDM rubber lining is a flow meter sensor for all kinds of water applications such as ground water, potable water, cooling water, wastewater, sewage, or sludge applications.
Connected to the compatible transmitter SITRANS FMT020, either mounted remotely or as a compact unit, it forms the magnetic flow meter system SITRANS FM520 which can be used in almost all general-purpose water applications.
SITRANS FM520
Perfect match for a cost-effective solution for all water and wastewater applications. Standard measuring accuracy ±0.4% of the actual flow rate, optional a high accuracy calibration with ±0.2% of flow actual rate is available.
