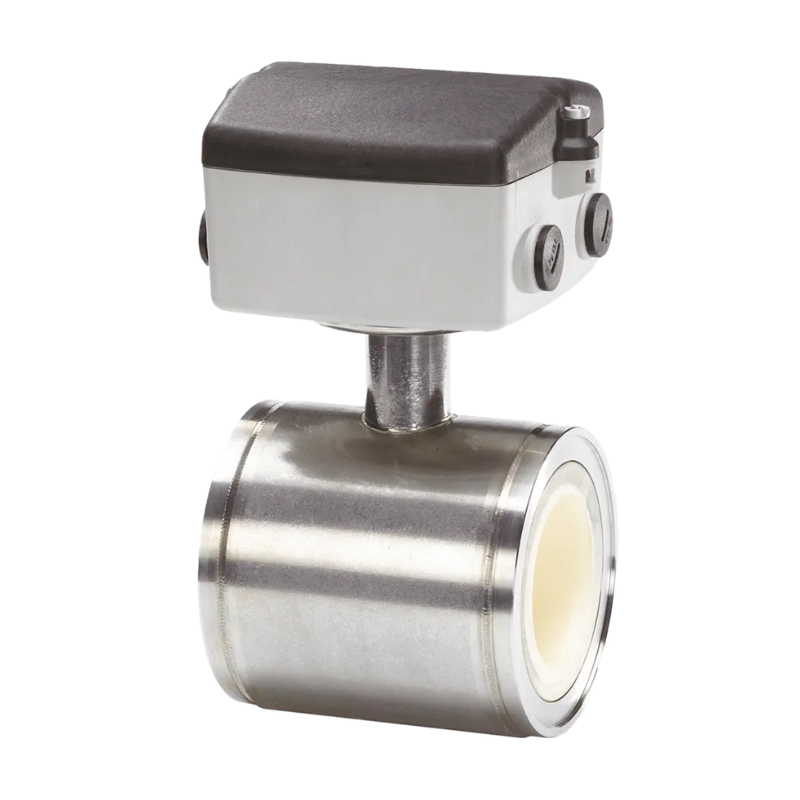

Siemens SITRANS FM MAG 1100HT 7ME612 Electromagnetic Flow Sensor for Flow Applications in the Process Industry
$800.00
The Siemens SITRANS FM MAG 1100HT is a robust electromagnetic flow sensor designed for demanding applications in the process industry. It delivers highly accurate and reliable measurement of conductive liquids, including water, slurries, and aggressive chemicals.
Built for durability, it features a compact design suitable for installation in space-constrained areas. This sensor is an ideal solution for ensuring precise flow monitoring in industries like chemical, pharmaceutical, water and wastewater, and food & beverage.
SITRANS FM MAG 1100HT 7ME612
Overview
SITRANS FM MAG 1100(7ME611) is a sensor in stainless steel with highly resistant liners and electrodes which fit even the most extreme process media.
Benefits
- Sensor sizes: DN 2 to DN 100 ( 1 /12″ to 4″)
- Compact wafer-type design matching for mating flange according to EN 1092-1 and ANSI B16.5 standard
- Corrosion resistant AISI 316 stainless steel sensor housing
- Highly resistant liner and electrodes fitting most extreme process media
- Hose proof IP67/NEMA 6 enclosure rating
- Option for IP68 / NEMA 6P protection class ex works or for upgrad ing on site
- High temperature sensor for applications with temperatures up to 200 °C (392 °F)
- Approved for hazardous areas for maximum safety and reliability
- Designed to allow in‑situ verification for easy performance check
Application
The main applications of the SITRANS FM electromagnetic flow sensors can be found in the following fields:
- Process industry
- Chemical industry
- Pharmaceutical industry
- Water treatment like e.g. chemical dosing
Integration

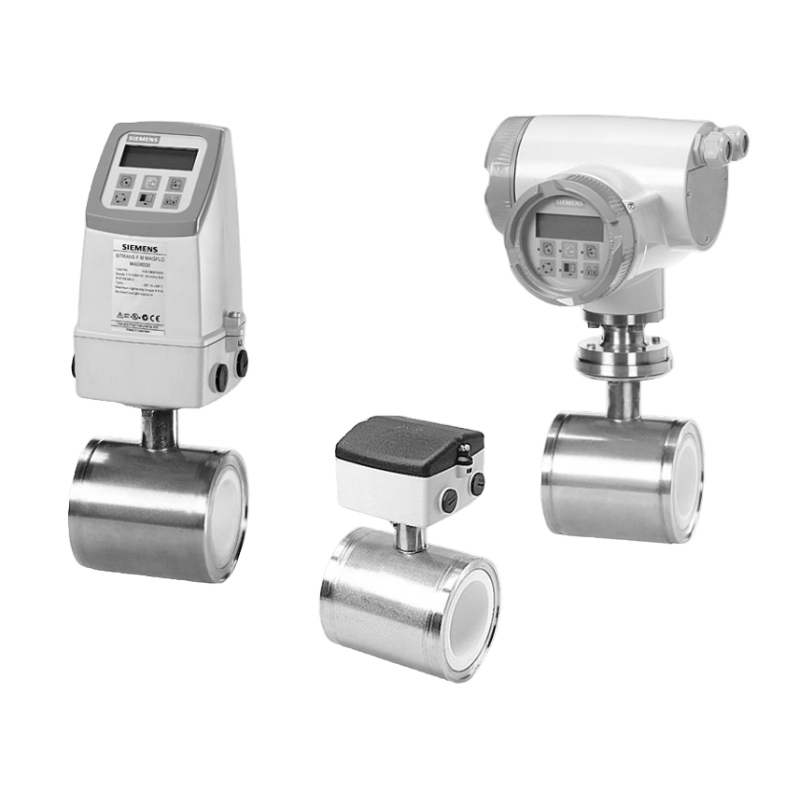

The complete flowmeter consists of a flow sensor and an associated transmitter SITRANS FM MAG 5000, 6000 or 6000 I. The flexible communication concept simplifies integration and update to a variety of fieldbus systems such as HART, FOUNDATION Fieldbus H1, DeviceNet, PROFIBUS DP and PA, Modbus RTU/RS 485.
| Meassuring range | 0 to 10 m/s |
|---|---|
| Nominal sizes | From DN 2 to DN 100 (1/12" to 4") |
| Accuracy | 0.2 % ±1 mm/s |
| Operating pressure | Max. 40 bar (Max. 580 psi) |
| Ambient temperature | From -40 to 100 °C (-40 to 212 °F) |
| Medium temperature | From -30 to 200 °C (-22 to 390 °F) |
| Liners | Ceramics |
| Electrodes | Platinum |
| Material | Stainless steel AISI 316L (1.4404) |
| Approvals | ATEX – 2 GD Zone 1, FM Class 1 div 2 |
