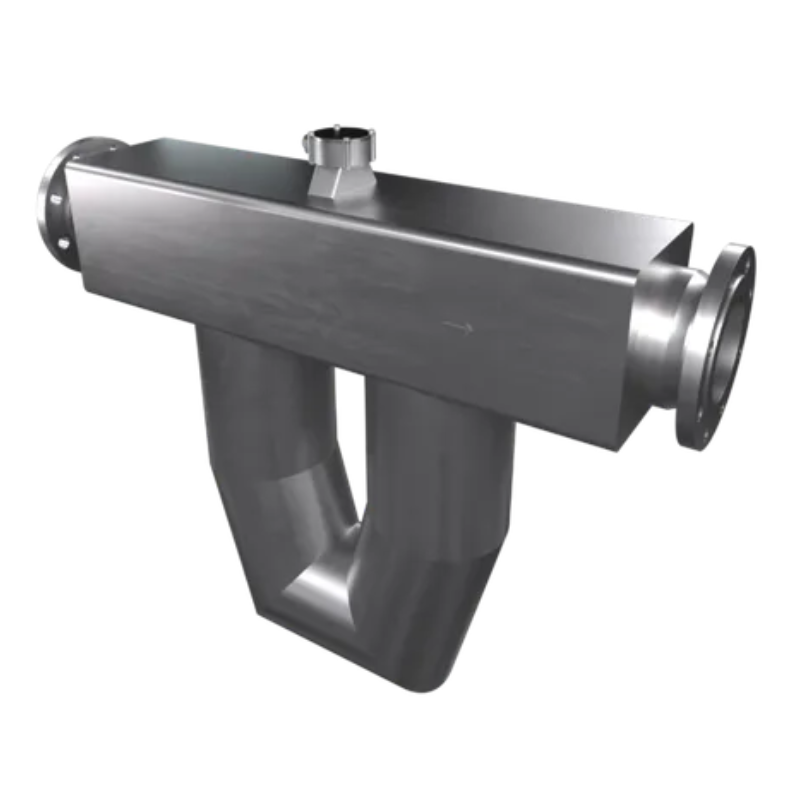

SIEMENS SITRANS FC720/740 7ME447 Coriolis Flowmeter For Large Pipes and High Flows
$9,000.00
The SIEMENS SITRANS FC720/740 Coriolis flowmeter is designed for large pipes and high-flow applications, providing accurate and reliable measurement in demanding industrial environments. It ensures optimal performance with advanced diagnostics and easy integration.
Overview
The flowmeter systems of the SITRANS FC500 series are the grande Coriolis multi-parameter flowmeter for large pipes and high flows.
They are formed by one FCS700 sensor and one FCT transmitter:

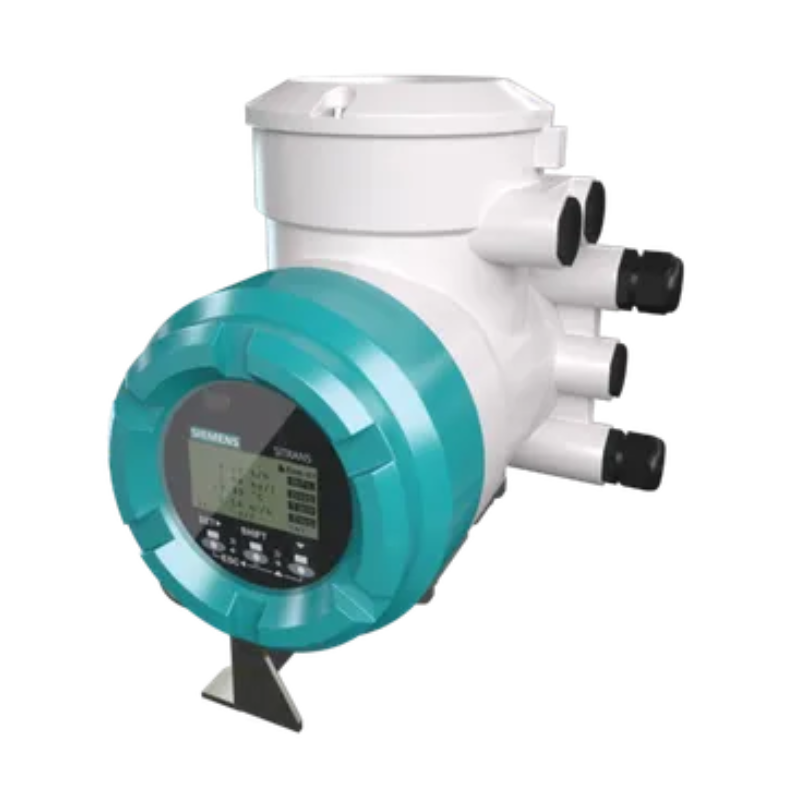

• SITRANS FC720 is the combination of the FCS700 sensor and the FCT020 transmitter
• SITRANS FC740 is the combination of the FCS700 sensor and the FCT040 transmitter
Features:
• Dual curved AISI 316L stainless steel or alloy 22 measuring tubes
• Process connection: flanges
• Nominal sizes: DN 100 to DN 200
• Connection sizes DN 100 to DN 250 (4″ to 10″)
• Nominal flow rates: 250 000 kg/h to 900 000 kg/h(551 156 to 1 984 160 lb/h)

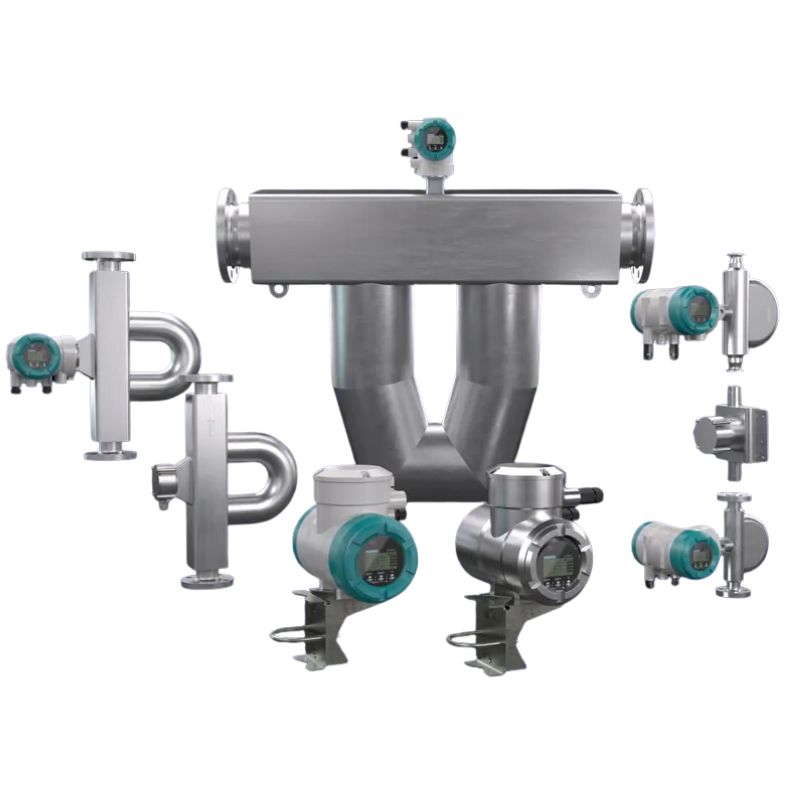

• FCS700 sensors can be combined with compact or remote transmitters
• Versatility with superior turndown and modest pressure loss
• Durability and the performance required in large-scale processes
Benefits
- Choose your sensor based on your applications need and afterwards select the transmitter model based on the communication and performance requested.
- The modular concept allows to find the right fit for your need.
- Maximum accuracy due to calibration facility accredited according to ISO/IEC 17025
- Tube health check (diagnostic verification) alerts of potential performance issues doe to process events, e.g. unwanted gas or vapor breakout & solid deposits building up in the tubes.
- High measurement sensitivity & intelligent dynamic range keeps the measurement active even in demanding high damping cases.
- Precise flow rate measurement of fluids and gases, multi-phase fluids and fluids with specific gas content using the Coriolis principle.
| Measuring range | 125 – 1100000 kg/h |
|---|---|
| Maximum process temp. | -70 to +350 °C |
| Wetted materials | 316L SS/1.4404 or |
| Sensor size | DN100 – DN200 |
| Maximum pressure | Up to 100 bar |
| Approvals | – Ex-approvals |
| Features | Functional Safety SIL2/3 |
