SIEMENS Flow Measurement SITRANS FM MAG 1100 Electromagnetic Flow Sensor 7ME611 7ME612
Original price was: $950.00.$860.00Current price is: $860.00.
SITRANS FM MAG 1100 is a sensor in stainless steel with highly resistant liners and electrodes which fit even the most extreme process media.
SITRANS FM MAG 1100 Electromagnetic flow sensor, wafer design, diameter DN 2 to DN 100 (1/12″ to 4″). Suitable for volume flow measurement of liquids (conductive) , for applications in water & wastewater, pharmaceutical and chemical industry.
Overview

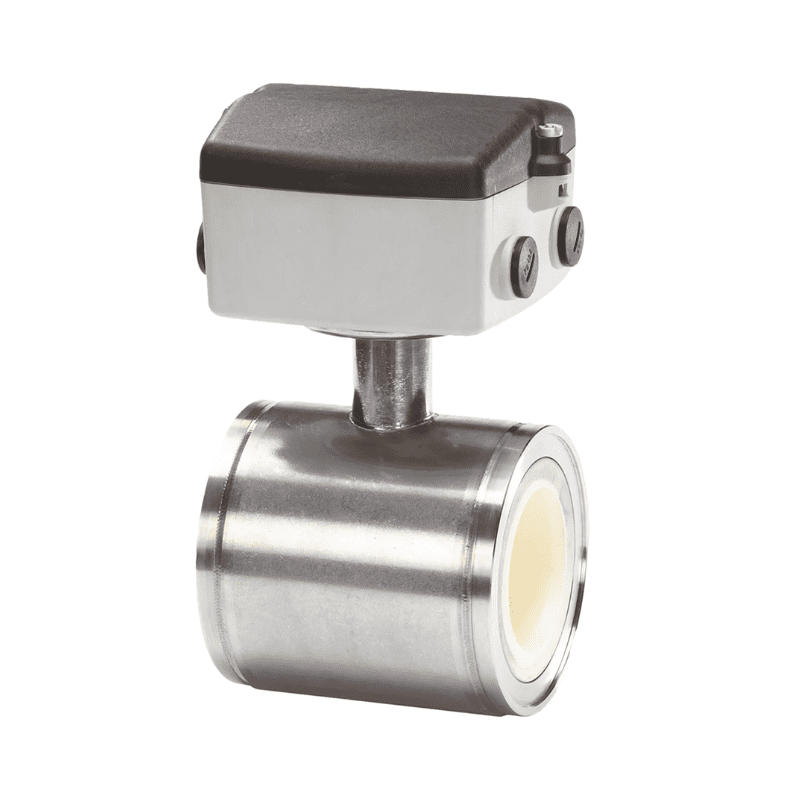

The SITRANS FM MAG 1100 is an electromagnetic flow sensor in a compact wafer design designed for flow applications in the process industry.
Benefits
- Sensor sizes: DN 2 to DN 100 (1/12” to 4″)
- Compact wafer-type design matching for mating flange according to EN 1092-1 and ANSI B16.5 standard
- Corrosion resistant AISI 316 stainless steel sensor housing
- Highly resistant liner and electrodes fitting most extreme process media
- Hose proof IP67/NEMA 6 enclosure rating
- Option for IP68 / NEMA 6P protection class ex works or for upgrading on site
- High temperature sensor for applications with temperatures up to 200 °C (392 °F)
- Approved for hazardous areas for maximum safety and reliability
- Designed to allow in‑situ verification for easy performance check
Application
The main applications of the SITRANS FM electromagnetic flow sensors can be found in the following fields:
- Process industry
- Chemical industry
- Pharmaceutical industry
- Water treatment like e.g. chemical dosing
Integration

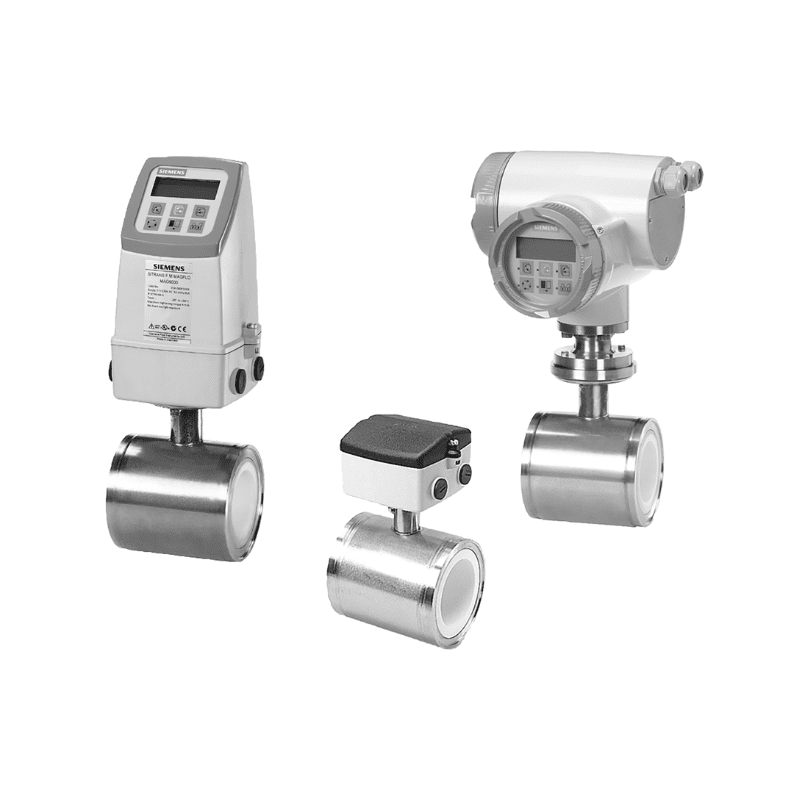

The complete flowmeter consists of a flow sensor and an associated transmitter SITRANS FM MAG 5000, 6000 or 6000 I. The flexible communication concept simplifies integration and update to a variety of fieldbus systems such as HART, FOUNDATION Fieldbus H1, DeviceNet, PROFIBUS DP and PA, Modbus RTU/RS 485.
| Measuring principle | Electromagnetic induction |
|---|---|
| Process connection | DN 2 … 10 (1/12" … 3/8"): G½"/1/2" NPT pipe connection adapters |
| Ambient temperature | Standard sensor:-40 … +100 °C (-40 … +212 °F) |
| Protection class | IP67, NEMA 6 |
| Meassuring range | 0 to 10 m/s |
| Nominal sizes | From DN 2 to DN 100 (1/12" to 4") |
| Accuracy | 0.2 % ±1 mm/s |
| Operating pressure | Max. 40 bar (Max. 580 psi) |
| Medium temperature | From -30 to 200 °C (-22 to 390 °F) |
| Liners | Ceramics |
| Electrodes | Platinum |
| Material | Stainless steel AISI 316L (1.4404) |
| Approvals | ATEX – 2 GD Zone 1, FM Class 1 div 2 |
