Rosemount™ 5900S Radar Level Gauge
$1,200.00
The Rosemount 5900S Radar Level Gauge is engineered for challenging storage tank applications with high vapor, foam, and turbulence. Featuring advanced signal processing and safety certifications up to SIL 2, it delivers reliable measurement in the most demanding conditions. This robust gauge ensures accurate inventory management and process safety with comprehensive diagnostics.
The Rosemount 5900S Radar Level Gauge delivers ±0.5 mm (0.020 in.) instrument accuracy, reducing level measurement uncertainty to a minimum. It enhances your storage operation by providing certified custody transfer accuracy, better inventory management and reliable loss control data.

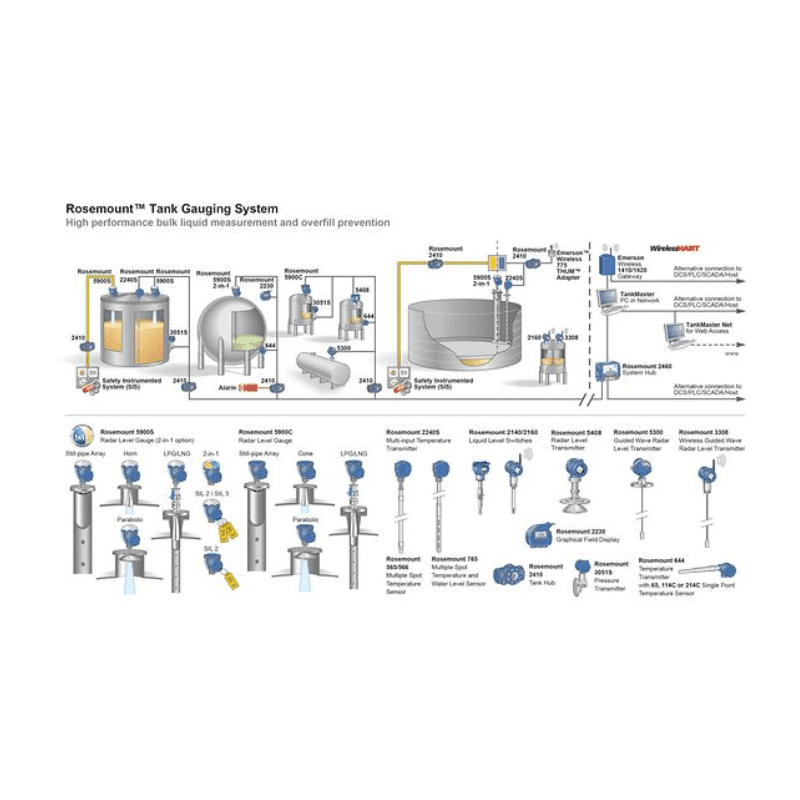

The Rosemount 5900S is normally combined with high precision multi-spot temperature sensors for highest accuracy API standard net volume calculations.

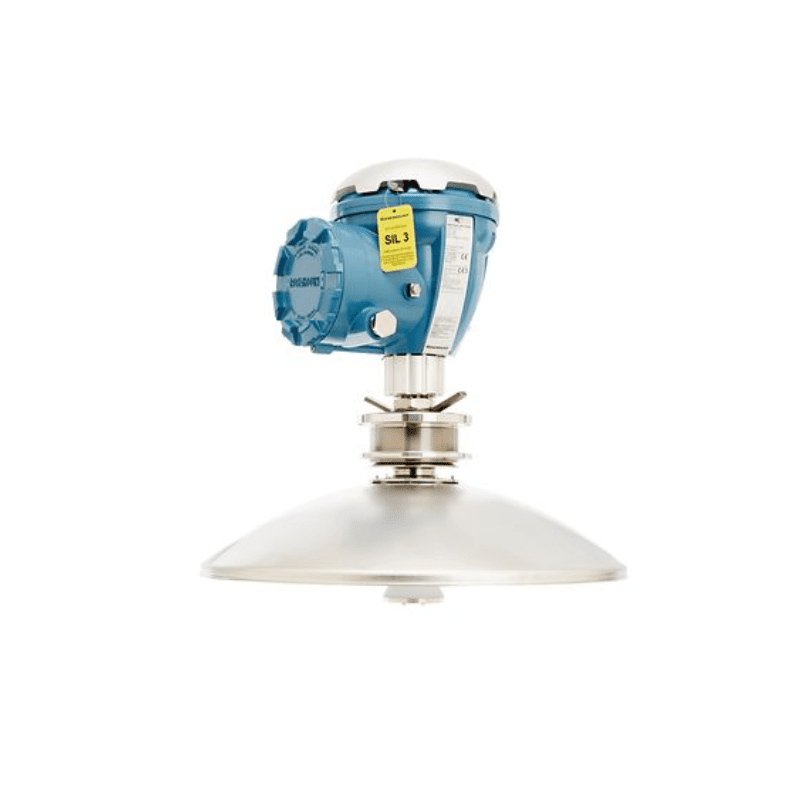

The Rosemount 5900S takes overfill safety to a higher level with an innovative 2-in-1 feature which includes two radar gauges in one housing for independent level and overfill measurement. It is SIL 2 and SIL 3 certified according to IEC 61508 and enables API 2350 compliant solutions.
| Accuracy | ± 0.5 mm (± 0.020 in.). |
|---|---|
| Stability | Typically < ± 0.5 mm (0.020 in.) in -40 to +70 °C (-40 to +158 °F). |
| Update Rate | New measurement every 0.3 second. |
| Communication Protocol | Foundation™ Fieldbus for connection to Rosemount 2410 with self-configuring Tankbus or any Foundation™ Fieldbus host system. |
| Custody Transfer Approval | OIML R85:2008, and national certifications such as PTB, NMi etc. |
| Safety | • SIL 2 and SIL 3 certified. |
| Metrology Sealing | Yes. |
| Emulation Capability | Possible to integrate with legacy tank gauging systems. |
| Power Supply | • FISCO: 9.0 – 17.5 VDC polarity insensitive (for example from 2410 Tank Hub). |
| Ambient Temperature | -40 to +70 °C (-40 to +158 °F). Minimum start-up temperature is -50 °C (-58 °F). |

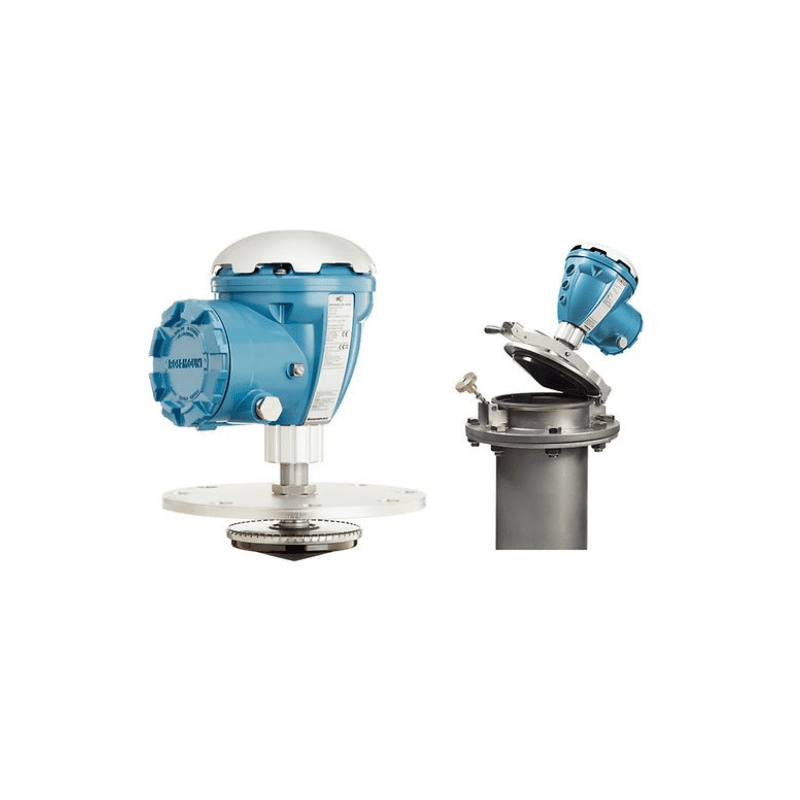

| Antenna Type | Parabolic antenna, still-pipe array antenna, horn antenna, LPG/LNG antenna. |
