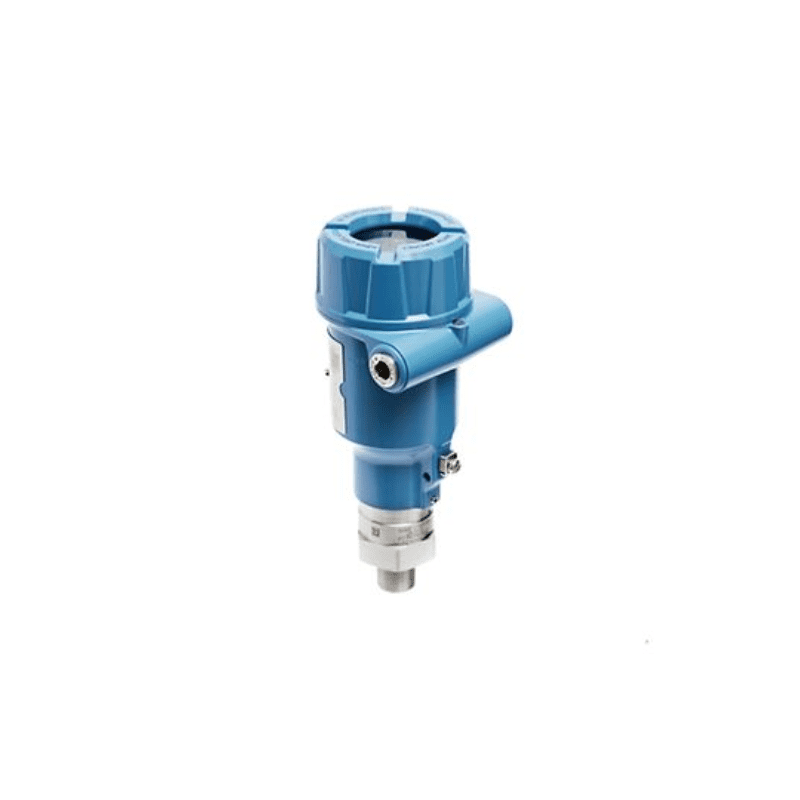

Rosemount™ 3408 Level Transmitter – Non-Contacting Radar
$850.00
The Rosemount 3408 Radar Level Transmitter delivers reliable non-contact measurement for various industrial applications. Designed to perform consistently in challenging conditions with vapor, foam, and process noise, it features straightforward setup and robust diagnostics. This versatile transmitter ensures accurate level monitoring in tanks and vessels, enhancing process efficiency across multiple industries.
Product Data Sheet: Rosemount™ 3408 Wireless Level Transmitter
The Rosemount 3408 Non-Contacting Radar Level Transmitter, with Smart Echo Supervision™ technology, offers enhanced reliability for level measurement and overfill prevention.
It supports wireless and remote configuration through optional Bluetooth® for the wired model or WirelessHART® for automated measurements in hard-to-reach areas, cutting down wiring costs.
The transmitter’s smart diagnostics package provides real-time monitoring, remote testing, health checks, and historical data access, enhancing safety, efficiency, and proactive maintenance.
Safety certifications, including SIL2 (IEC61508) and NAMUR type testing, along with remote proof-testing, ensure protection for people, assets, and the environment.
| Accuracy | Standard: ± 0.08 in. (± 2 mm) |
|---|---|
| Measurement Range | 98 ft. (30 m) |
| Operating Pressure | -15 to 363 psig (-1 to 25 bar) |
| Operating Temperature | -76 to 392 °F (-60 to 200 °C) |
| Power Supply | 12-35 VDC (30 VDC in Intrinsically Safe installations) |
| Communication Protocol | 4-20mA HART7® (optional Bluetooth® connectivity), WirelessHART® |
| Measurement Frequency | 80 GHz |
| Certifications/Approvals | ATEX/UKEX, IECEx, USA, Canadian, see full specs for complete list of certifications |
| Safety | IEC 61508 certified to SIL 2 (Not available with WirelessHART® option) |
| Antenna Type | Process Seal, Lens Antenna, ATAP Lens Antenna |
| Wireless Update Rate | 4 sec. to 60 min., user selectable |
| Power Module Life | Up to 10-year life, field replaceable (order separately) |
| Wireless Range | Long Range: 225m (750 feet) |
