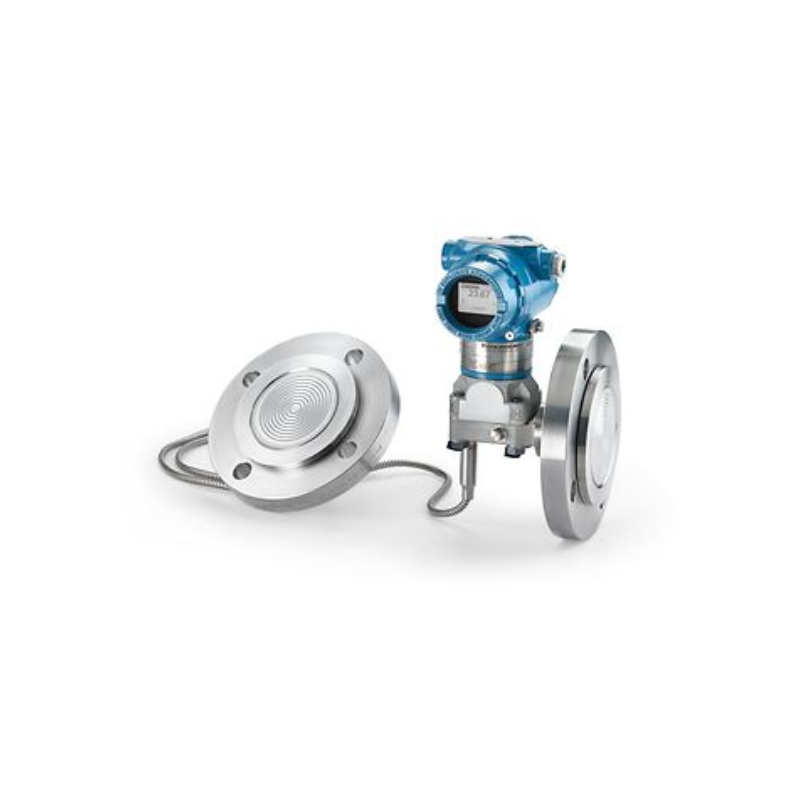

Rosemount™ 3051L Level Transmitter
$400.00
The Rosemount 3051L Level Transmitter utilizes advanced differential pressure technology to deliver accurate and reliable liquid level measurement in various industrial applications. Designed for tanks, vessels, and process containers, this robust transmitter provides continuous level monitoring with exceptional stability and precision. Its advanced diagnostics and intuitive calibration ensure optimal performance in challenging environments. The compact design facilitates straightforward installation while minimizing maintenance requirements. Ideal for chemical processing, water treatment, and oil & gas industries, the 3051L transmitter offers dependable level data for process control, inventory management, and safety systems.
Direct mount or use a Tuned-System™ assembly that optimizes performance and reduces temperature effects by 10-20% for improved response time by over 80% versus traditional installations. Built-in diagnostics detect electrical loop issues and alert you to corrosion, water in the housing, or unstable power supply. Available with a graphical, back-lit display, Bluetooth® connectivity, Level specific configuration and enhanced software capabilities designed to access the data you need faster than ever before.
| Warranty | Up to 5-year limited warranty |
|---|---|
| Max. Operating Pressure | Up to 300 psi (20,68 bar) |
| Communication Protocol | 4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART® |
| Seal System Type | Direct Mount, Tuned-System |
| Transmitter Connection | Welded-Repairable |
| Process Connection | Flanged: ANSI/ASME, EN/DIN, JIS |
| Diagnostics | Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics |
| Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE®, hazardous location, see full specs for complete list of certifications |
| Wireless Update Rate | 1 sec. to 60 min., user selectable |
| Wireless Range | Internal antenna (225 m) |
| Power Module Life | Up to 10-year life, field replaceable (order separately) |
