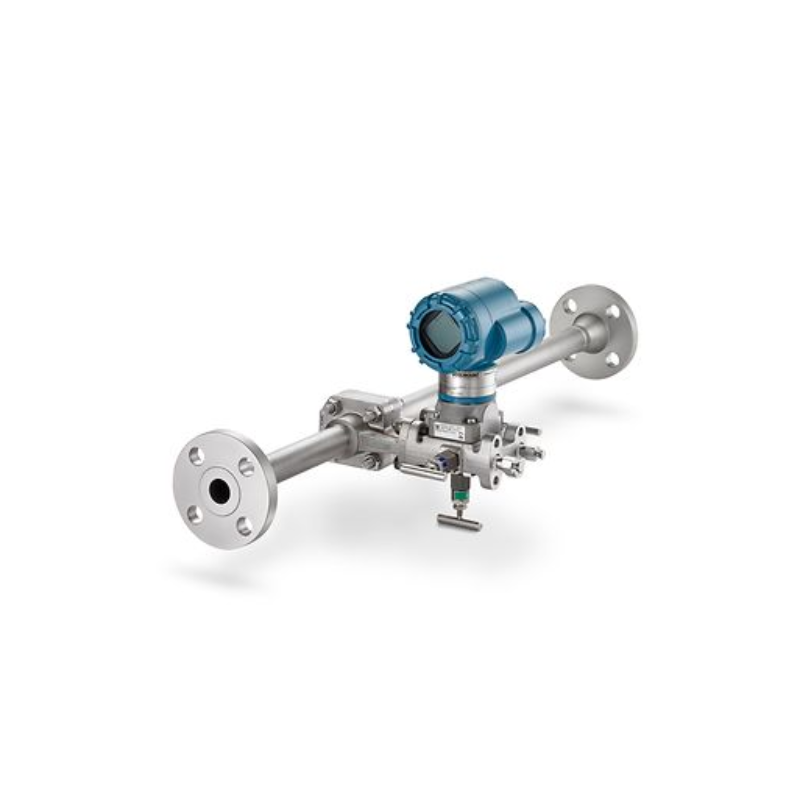

Rosemount™ 3051CFP Integral Orifice Flow Meter
$400.00
The Rosemount 3051CFP Integral Orifice Flow Meter integrates an orifice plate and differential pressure transmitter into a single, compact unit for efficient flow measurement. This space-saving design eliminates the need for separate impulse piping, reducing installation costs and potential leak points. Ideal for steam, gas, and liquid flow applications, the 3051CFP provides accurate measurement while minimizing space requirements. With robust construction and easy installation, this flow meter is perfect for applications where space constraints and reliable flow monitoring are critical considerations in process industries and plant operations.
Featuring industry-standard performance, the Rosemount 3051CFA Annubar Flow Meter provides dependable flow measurements via mulitple communication protocols including WirelessHART® technology. This patented sensor design maintains a small profile in the pipe for reduced permanent pressure loss and is capable of flow and pressure measurements via a single pipe penetration. Available with a graphical, back-lit display, Bluetooth® connectivity, Flow specific configuration and enhanced software capabilities designed to access data quickly.
| Warranty | Up to 5-year limited warranty |
|---|---|
| Rangedown | Up to 150:1 (8:1 flow turndown) |
| Communication Protocol | 4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART® |
| Line Size | 0.5 to 1.5 in. (15 to 40 mm) |
| Process Wetted Material | Body: 316L SST |
| Diagnostics | Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics |
| Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE® |
| Wireless Update Rate | 1 sec. to 60 min., user selectable |
| Power Module Life | Up to 10-year life, field replaceable (order separately) |
| Wireless Range | Internal antenna (225 m) |
