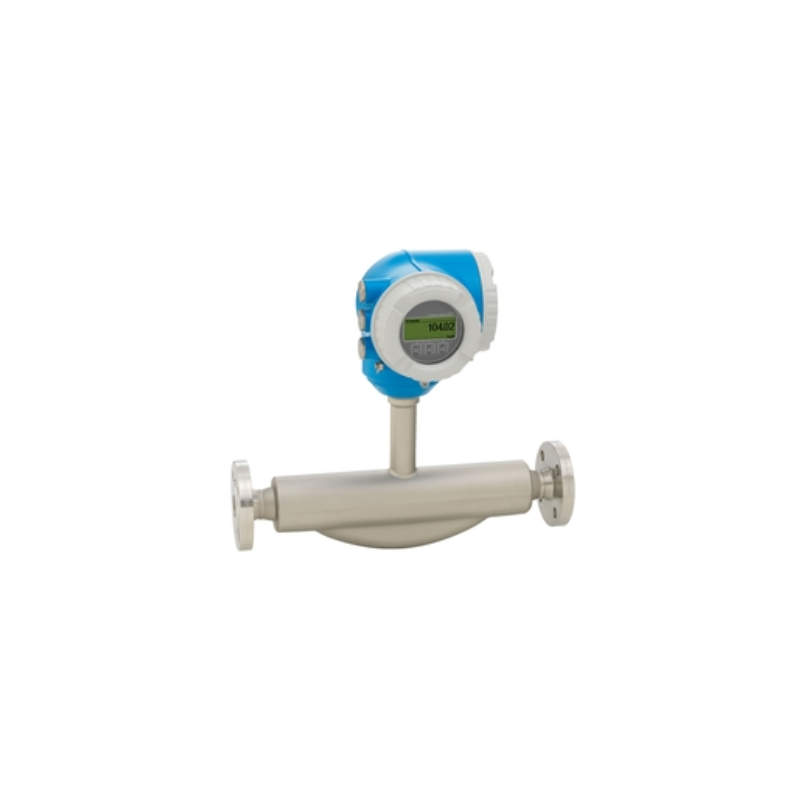

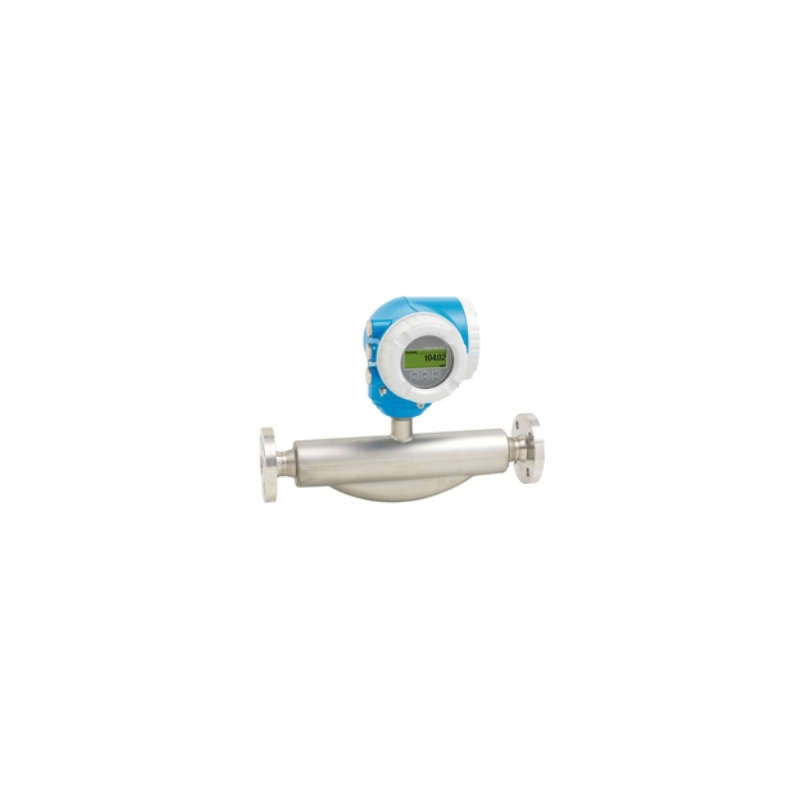

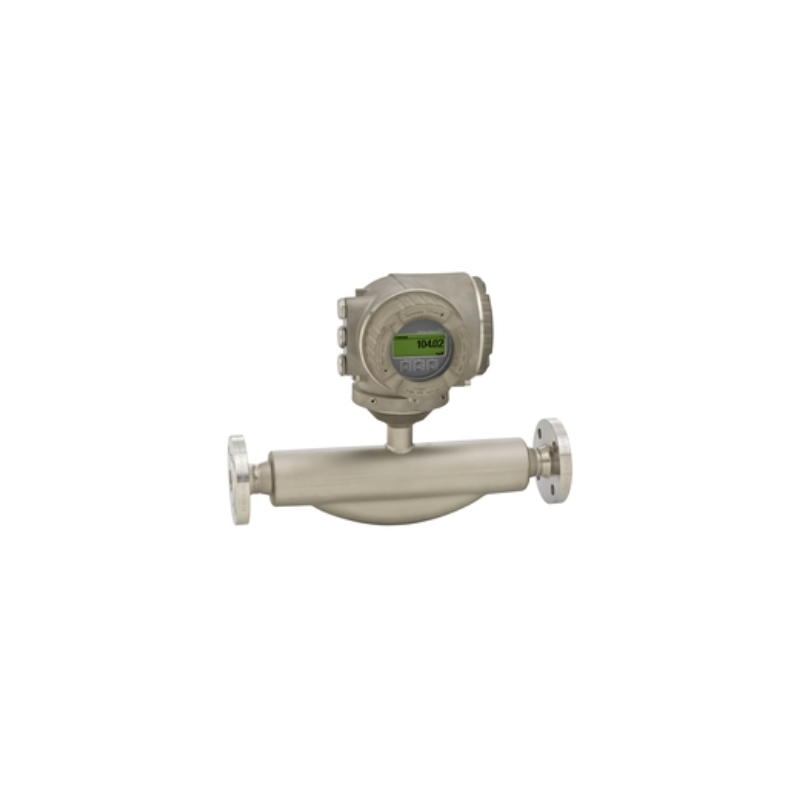

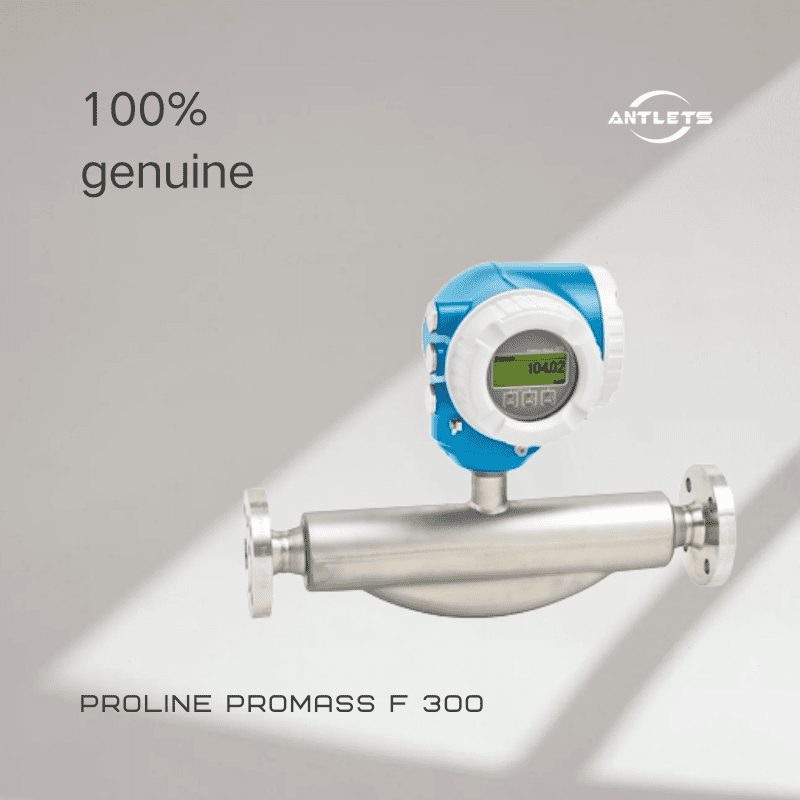

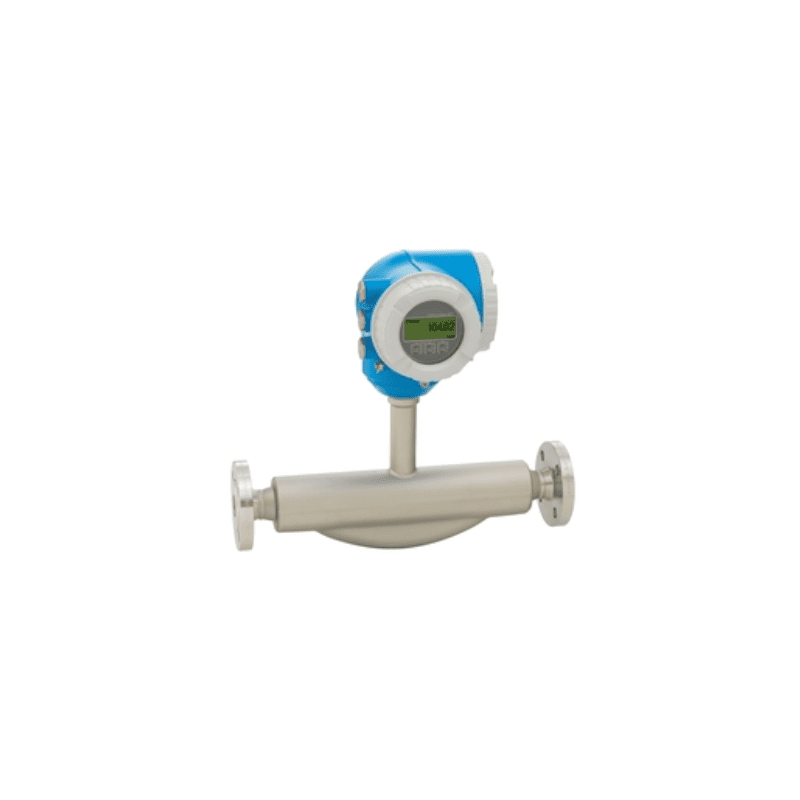

Proline Promass F 300 Coriolis flowmeter

E+H Proline Promass F 300 Coriolis flowmeter

$1,490.00

The Proline Promass F 300 is a high-precision Coriolis flowmeter designed for accurate mass flow, density, and concentration measurement of liquids and gases. Utilizing advanced Coriolis measurement technology, it provides reliable multi-parameter data for demanding process applications. The device offers exceptional measurement accuracy, robust construction, and easy installation with minimal maintenance requirements. With comprehensive diagnostics and flexible communication options, the Promass F 300 ensures optimal process control in chemical, pharmaceutical, and food industries. Ideal for batching, blending, and custody transfer applications where precision measurement is critical.

Proline Promass F 300 Technical Information

Category: Tags: , Brand:

Field of application

Promass F has a long-standing reputation as a highly accurate sensor. Immune to fluctuating and harsh environments, it is suited for the broadest range of applications. With its compact transmitter Promass F 300 offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables measurement reliability and extension of recalibration cycles.

  • Measuring principle operates independently of physical fluid properties such as viscosity or density

  • Highest measurement performance for liquids and gases under varying, demanding process conditions.

Benefits

  • Highest process safety – immune to fluctuating and harsh environments

  • Fewer process measuring points – multivariable measurement (flow, density, temperature)

  • Space-saving installation – no in-/outlet run needs

  • Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet

  • Reduced complexity and variety – freely configurable I/O functionality

  • Integrated verification – Heartbeat Technology

Nominal diameter range

DN 8 to 250 (⅜ to 10")
Wetted materials

Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022); 1.4301 (F304)
Measured variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
Max. measurement error

Mass flow (liquid): ±0.10 % (standard), 0.05 % (option)
Volume flow (liquid): ±0.10 %
Mass flow (gas): ±0.25 %
Density (liquid): ±0.0005 g/cm³
Measuring range

0 to 2 200 000 kg/h (0 to 80 840 lb/min)
Max. process pressure

PN 100, Class 600, 63K
Medium temperature range

Standard: –50 to +150 °C (–58 to +302 °F)
Option: –50 to +240 °C (–58 to +464 °F)
High temperatur option: –50 to +350 °C (–58 to +662 °F)
Option: –196 to +150 °C (–320 to +302 °F)
Ambient temperature range

Standard: –40 to +60 °C (–40 to +140 °F)
Option: –50 to +60 °C (–58 to +140 °F)
Sensor housing material

Standard: 1.4301 (304)
Option: 1.4404 (316/316L)
Transmitter housing material

AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design
Degree of protection

Compact version: IP66/67, type 4X enclosure.
External WLAN antenna: IP67
IP69
Display/Operation

4-line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
Remote display available
Outputs

3 outputs:
4-20 mA HART (active/passive)
4-20 mA WirelessHART
4-20 mA (active/passive)
Pulse/frequency/switch output (active/passive)
Double pulse output (active/passive)
Relay output
Inputs

Status input
4-20 mA input
Digital communication

HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA
Power supply

DC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous area approvals

ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC
Product safety

CE, C-tick, EAC marking
Functional safety

Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Metrological approvals and certificates

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
MI-005 (Liquids other than water, Hydrocarbons, LPG, cryogenic liquids)
NTEP (Liquids other than water, LPG, cryogenic liquids)
MC (Liquids other than water, gases, cryogenic liquids)
MI-002, PTB
Marine approvals and certificates

LR approval, DNV approval, ABS approval, BV approval, CCS approval
Pressure approvals and certificates

PED, CRN, AD 2000
Material certificates

3.1 material
NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK
Hygienic approvals and certificates

3-A, EHEDG, cGMP
