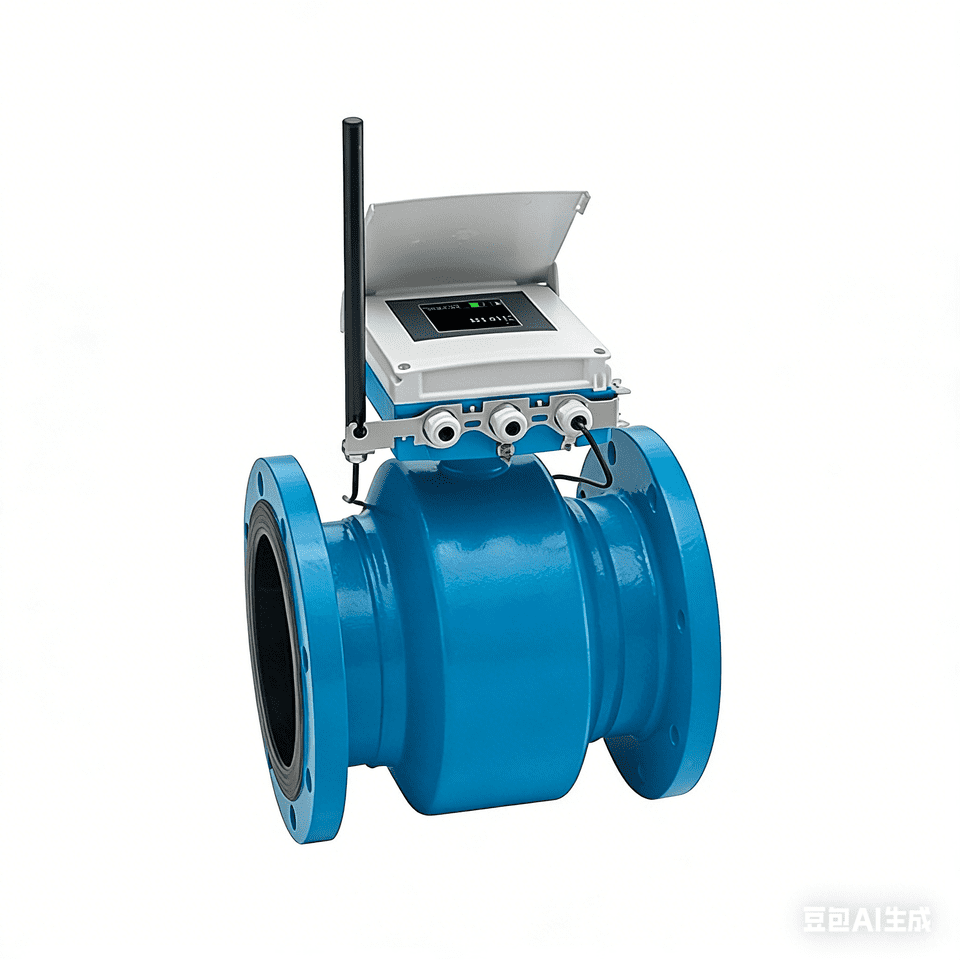

E+H Proline Promag W 800 5W8C electromagnetic flowmeter
$800.00
The Proline Promag W 800 represents the ultimate electromagnetic flowmeter solution for large diameter water applications in major infrastructure projects. Designed specifically for large pipe sizes, this high-performance instrument delivers exceptional measurement accuracy and reliability for water supply networks, wastewater treatment plants, and industrial water systems. Featuring advanced diagnostic capabilities and robust construction, it ensures long-term stability in the most demanding environments. With its verification functionality and comprehensive communication options, the Promag W 800 provides unmatched performance for critical water management applications where measurement integrity and process reliability are essential.
Field of application
Promag W 800 is ideal for off-grid applications in the water industry, even flow measurement in direct underground installation or underwater. Promag 800 covers basic functionality, Promag 800 Advanced offers the full performance spectrum. The battery-powered transmitter provides worldwide transmission of measured data without additional energy supply. Heartbeat Technology enables measurement reliability and compliant verification.
-
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
-
Dedicated to the measurement of industrial or municipal water and wastewater
Benefits
-
Long-lasting battery-powered magmeter with secure system integration and communication
-
With corrosion protection for underground installation or permanent underwater use
-
Flexible engineering – sensor with fixed or lap-joint process connections
-
Improved plant availability – sensor compliant with industry-specific requirements
-
Secure data storage and transmission – worldwide encrypted communication over the mobile network
-
Convenient commissioning and operation – device access via Bluetooth using intuitive SmartBlue app
-
Integrated verification – Heartbeat Technology
| Nominal diameter range | DN 25 to 900 (1 to 36") |
|---|---|
| Wetted materials | Liner: polyurethane; PTFE; hard rubber |
| Measured variables | Volume flow |
| Max. measurement error | Volume flow: ±0.5 % o.r. ± 2 mm/s (±0.5 % o.r. ± 0.08 in/s) |
| Measuring range | 9 dm³/min to 22500 m³/h (2.5 to 100000 gal/min) |
| Max. process pressure | PN 40, Class 300, 20K |
| Medium temperature range | Liner material hard rubber: 0 to +70 °C (+32 to +158 °F) |
| Ambient temperature range | Flange material carbon steel: –10 to +60 °C (14 to +140 °F) |
| Sensor housing material | DN 25 to 300 (1 to 12"): AlSi10Mg, coated |
| Transmitter housing material | Polycarbonat |
| Degree of protection | Compact version: IP66/67, type 4X enclosure and IP68, type 6P enclosure |
| Display/Operation | 4‐line backlit display with touch control (operation from outside) |
| Outputs | 3x Pulse/switch output (passive); Modbus RS485 |
| Inputs | Status input |
| Digital communication | LTE Cat M1; LTE Cat NB1; LTE Cat NB2; GPRS; EGPRS |
| Power supply | Internal: |
| Hazardous area approvals | CSA, GP |
| Product safety | CE Marking, EAC Marking, UKCA Marking |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) |
| Pressure approvals and certificates | CRN, PED |
| Hygienic approvals and certificates | Drinking water approval: ACS, KTW-BWGL, NSF 61, WRAS BS 6920 |
