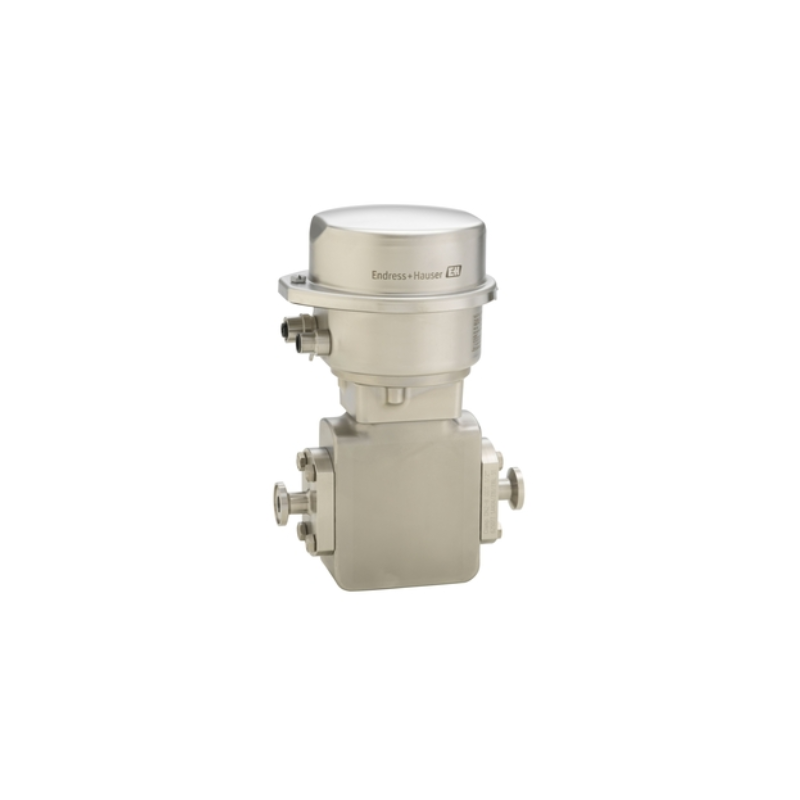

E+H Proline Promag H 100 5H1B electromagnetic flowmeter
$2,000.00
The Proline Promag H 100 is a compact electromagnetic flowmeter specifically engineered for demanding hygienic applications in regulated industries. Featuring full CIP (Cleaning-in-Place) and SIP (Sterilization-in-Place) compatibility, this flowmeter maintains the highest hygiene standards required in food, beverage, and pharmaceutical manufacturing. Its polished surfaces and crevice-free design prevent microbial contamination while facilitating thorough cleaning. With exceptional measurement accuracy and reliable performance, the Promag H 100 is ideal for batch processing, filling operations, and precise recipe management. The instrument offers straightforward installation, minimal maintenance, and full compliance with international hygienic standards.
Field of application
Promag H is the preferred sensor for hygienic applications with highest requirements in the food and beverage and life sciences industries. The ultra-compact transmitter provides full performance on the smallest footprint and enables seamless system integration, making Promag H 100 the preferred choice for skid builders, equipment manufacturers and system integrators. Heartbeat Technology enables compliance and process safety at all times.
-
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
-
Dedicated to demanding applications in the food and beverage as well as in life sciences industries
Benefits
-
Multivariable measurement for flow, temperature and conductivity
-
Flexible installation concept – numerous hygienic process connections
-
Energy-saving flow measurement – no pressure loss due to cross-section constriction
-
Space-saving transmitter – full functionality on the smallest footprint
-
Time-saving local operation without additional software and hardware – integrated web server
-
Integrated verification – Heartbeat Technology
-
Maintenance-free – no moving parts
| Nominal diameter range | DN 2 to 150 (¹⁄₁₂ to 6") |
|---|---|
| Wetted materials | Liner: PFA |
| Measured variables | Volume flow, temperature, conductivity, mass flow, corrected volume flow, corrected |
| Max. measurement error | Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) |
| Measuring range | 0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min) |
| Max. process pressure | PN 40, Class 150, 20K |
| Medium temperature range | –20 to +150 °C (–4 to +302 °F) |
| Ambient temperature range | –40 to +60 °C (–40 to +140 °F) |
| Sensor housing material | 1.4301 (304), corrosion resistant |
| Transmitter housing material | Compact: AlSi10Mg, coated |
| Degree of protection | Standard: IP66/67, type 4X enclosure |
| Display/Operation | 4‐line backlit display available (no local operation) |
| Outputs | 4‐20 mA HART (active) |
| Digital communication | HART, PROFIBUS DP, Modbus RS485, EtherNet/IP, PROFINET |
| Power supply | DC 20 to 30 V |
| Hazardous area approvals | ATEX, IECEx, cCSAus, INMETRO, EAC |
| Product safety | CE, C-tick |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) |
| Marine approvals and certificates | LR approval, DNV approval, ABS approval, BV approval |
| Pressure approvals and certificates | PED, CRN |
| Material certificates | 3.1 material |
| Hygienic approvals and certificates | Sanitary approval: EHEDG, 3-A, liner and seals acc. to FDA, cGMP |
