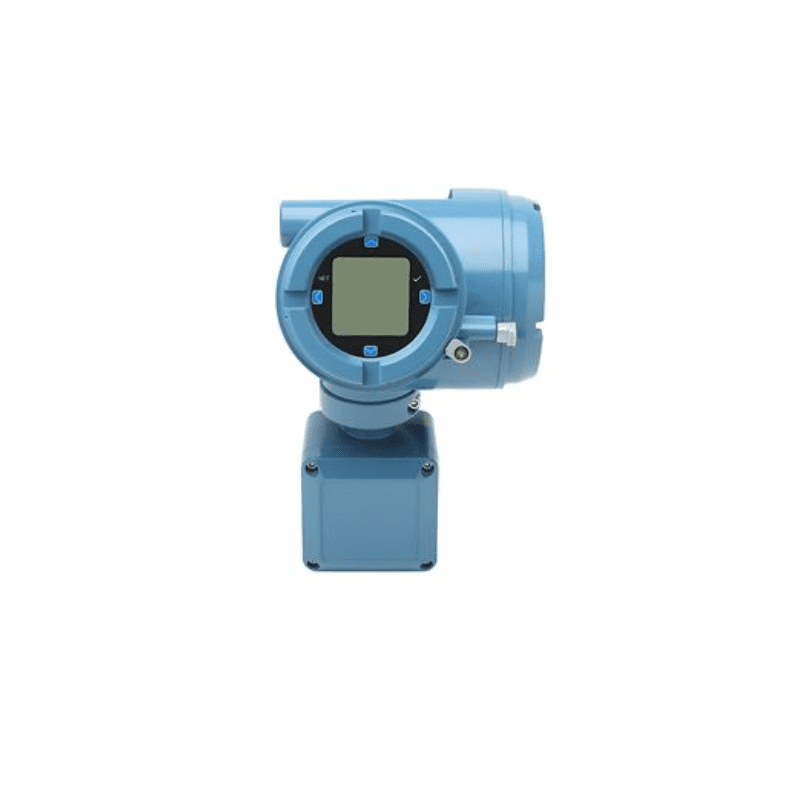

Rosemount™ Micro Motion™ 4700 Coriolis Configurable Inputs and Outputs Transmitter
$800.00
The Micro Motion 4700 Transmitter features configurable inputs and outputs for versatile Coriolis flow and density measurement in complex applications. This advanced device offers flexible integration capabilities with enhanced diagnostics for deeper process insight. Designed for demanding industrial environments, it provides reliable multi-variable measurement while adapting to specific process requirements through customizable I/O configurations.
The Micro Motion 4700 Transmitter offers a compact C1D1 (Zone 1) housing, scalability from 1-3 output channels that are configurable and licensed options, 4-wire/9-wire backwards compatibility, and can be fully configurable using the local operator interface. The optional data historian allows the ability to access time stamped process and meter diagnostic data. The optional Bluetooth® display offers wireless configuration that helps to avoid the need for a hot work permit to connect to the device and increases productivity and safety by minimizing the time spent in potential hazardous areas. Smart Meter Verification Basic is onboard as a standard that offers confidence that the meter is working properly.
| Environmental Specifications | Operating: -61 °F (-52.0 °C) to 149 °F (65.0 °C) |
|---|---|
| Vibration Limits | Meets IEC 60068-2-6, endurance sweep, 5 to 2000 Hz up to 1.0 g. |
| Humidity Range | The humidity limits are 5 to 95% relative humidity, non-condensing between -40 °F (-40.0 °C) to 149 °F (65.0 °C). |
| Linearity | .015% Span, Span = 16mA |
| Input Signal | Input/Output: Up to 3 pairs of wiring terminals for transmitter input/output and digital communications. Screw terminals accept solid or stranded conductors, 26 AWG (0.129 mm²) to 14 AWG (2.08 mm²). |
| Sensor Type | 4-wire remote mount – 4 terminals for connection to 4-wire sensor |
| Service | (Hart) Two clips for temporary connection to the service port |
| Power Supply | Universal (self-switching) with a supply voltage range of: |
| Housing | NEMA 4X (IP66/67) polyurethane-painted cast aluminum. Available with 1/2 in NPT or M20 conduit connections |
| Weight | Integral mount version 6.48 lb (2.939 kg) |
| Cable Glands | Two 1/2 in –NPT or M20 x1.5 female conduit port |
| Mounting | Available integrally mounted to the following Coriolis sensors: CMF200 – CMFHC4, CMFS007 – CMFS150, F025-F400, G025 – G300, H025-H400, R025-R300, T025-T150 |
| Display/Interface | Standard user interface with LCD panel |
