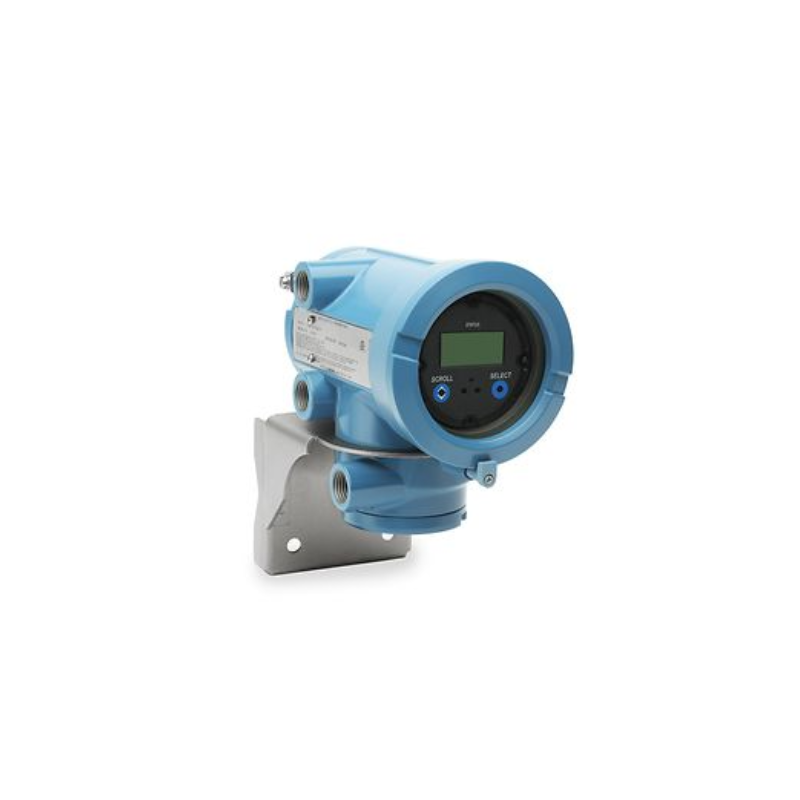

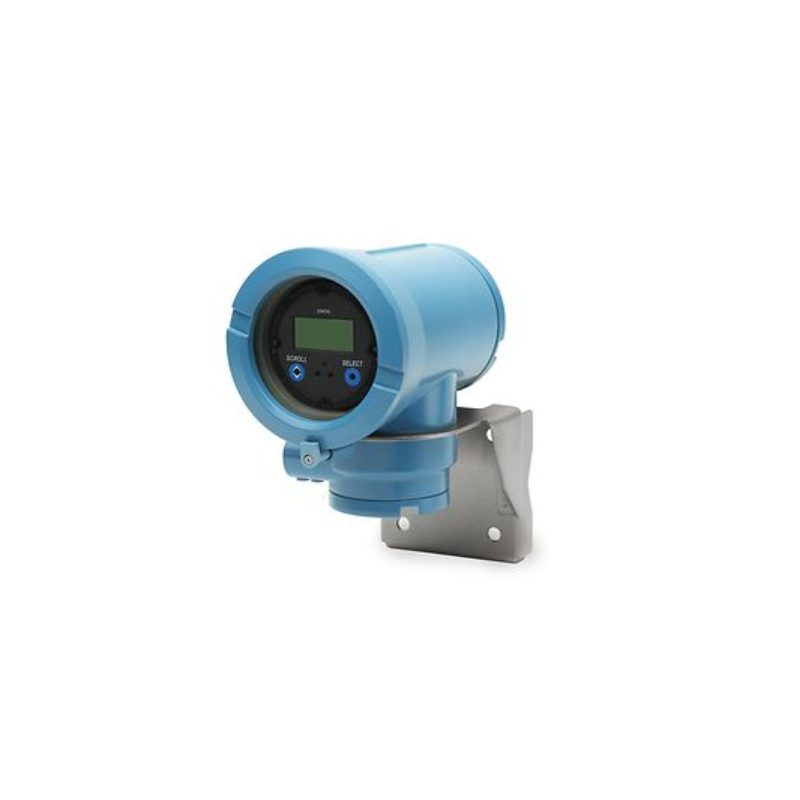

Rosemount™ Micro Motion 2700 Field And Integral-Mount Multivariable Flow And Density Transmitter

$650.00

The Micro Motion 2700 Transmitter provides accurate multivariable measurement of mass flow, density, and temperature using Coriolis technology. Offering both field and integral mounting options, its compact design features advanced diagnostics for enhanced process insight. This versatile transmitter delivers reliable performance in diverse industrial applications with easy integration.

Product Data Sheet: Commissioning MVD Profibus PA | Micro Motion

Category: Tags: , Brand:

A field-mount transmitter powered by MVD Technology designed for compact, integral mounting. These transmitters feature a rugged Class I, Division 1 / Zone 1 housing with an optional local operator interface designed to make flow meter access easy. Flow meter commissioning is simple and straight-forward with virtually no special programming requirements.

Output variables

Mass & volume flow
Net product content / flow
Temperature
Density
Concentration
Local display

Standard user interface with 2-line LCD panel
Two optical switches for local operation
Glass or plastic lens options
Power

Self-switching AC/DC input, automatically recognizes supply voltage
85 to 265 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum
18 to 100 VDC, 6 watts typical, 11 watts maximum
Complies with low voltage directive 2006/95/EC per EN 61010-1 (IEC 61010-1) with amendment 2, and Installation (Overvoltage) Category II, Pollution Degree 2
Input/output signals-Not intrinsically safe

Analog output option:
One active 4–20 mA output
One active frequencty output
Frequency output can be configured as a discrete output

Configurable I/O option:
One or two active 4-20 mA outputs
One or two active/passive frequency outputs
One or two active/passive discrete outputs
One discrete input
Input/output signals- Intrinsically safe

Analog output option:
One passive 4-20 mA output
One passive frequency output
Frequency output can be configured as a discrete output

Foundation™ fieldbus (Obsolete)
optionally non-incendive
One Foundation fieldbus H1 output

PROFIBUS-PA (Obsolete)
One PROFIBUS-PA output
HART/WirelessHART

Bell 202 signal is superimposed on the primary milliamp output
WirelessHART available via THUM adapter
HART communication is unavailable on Foundation fieldbus and PROFIBUS-PA transmitter versions
Mounting options

Field-mount
•Integrally mounted to a Micro Motion F-Series, R-Series, or H-Series sensor
•Remotely mounted to any 4-wire or 9-wire Micro Motion Coriolis sensor
Application types

Continuous process control
Custody transfer
Two-phase flow/entrained gas
Meter verification
SIS Certified
Hazardous approvals

Class I, Div. 1 
Class I, Div. 2 
Zone 1 
Zone 2
