Micro Motion 2400S Compact, Integral-Mount Transmitter
Micro Motion 2400S Compact, Integral-Mount Transmitter
Micro Motion 2400S Compact, Integral-Mount Transmitter

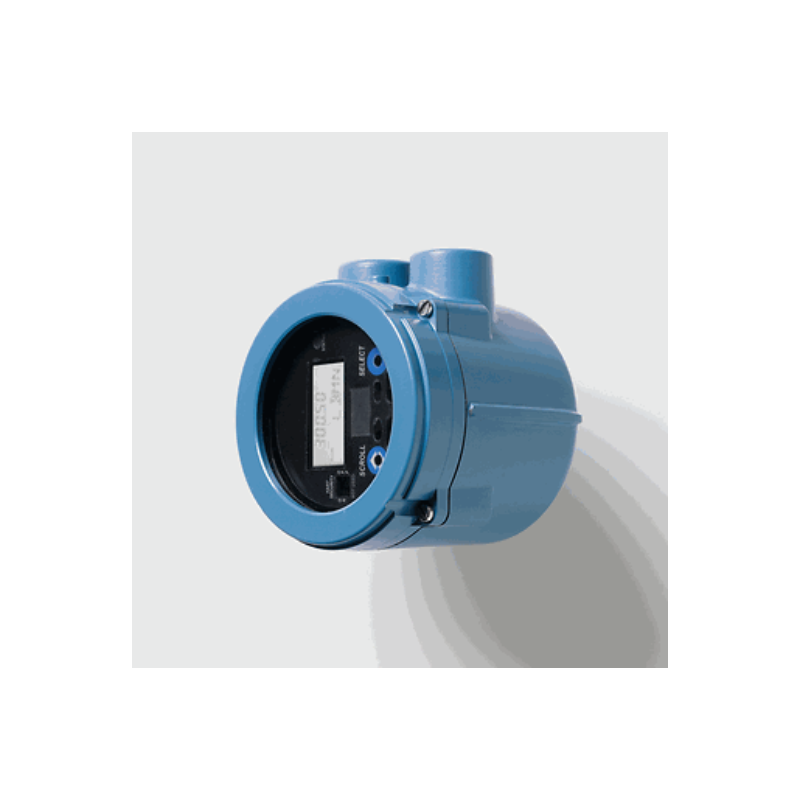

Rosemount™ Micro Motion 2400S Compact, Integral-Mount Transmitter

$800.00

The Micro Motion 2400S is a compact, integral-mount transmitter designed for Coriolis flow and density measurement. Its space-saving design mounts directly onto the sensor, eliminating separate enclosure needs. This makes it perfect for OEM applications and space-constrained installations, delivering reliable performance in mass flow and density monitoring with minimal footprint.

Product Data Sheet: Transmitters with MVD Technology – 2400 Series | Micro Motion

Category: Tags: , Brand:

With an integrated architecture designed for easy access to process intelligence, the 2400S Compact, Integral Transmitter provides superior performance in the most challenging applications, such as entrained gas, batching and loading

Output variables

Mass & volume flow
Net product content / flow
Temperature
Density
Concentration
Local display

Standard user interface with 2-line LCD panel
Two clips for HART/Bell 202 connections (requires removing transmitter housing cover)
Two membrane pushbuttons for local operation (requires removing transmitter housing cover)
Glass or plastic lens options
Power

Self-switching AC/DC input, automatically recognizes supply voltage
85–265 VAC, 50/60 Hz, 4 watts typical, 7 watts maximum
18–100 VDC, 4 watts typical, 7 watts maximum
Complies with low voltage directive 2006/95/EC per EN 61010-1 (IEC 61010-1) and Installation (Overvoltage) Category II, Pollution Degree 2
Input/output signals (analog output option)

Channel A:
One active 4–20 mA output
Not intrinsically safeChannel B (configurable), one of:
One active or passive frequency output
One active or passive discrete output
One active or passive discrete input
Input/output signals (PROFIBUS-DP option)

Digital 2-way PROFIBUS-DP signal
Input/output signals (DeviceNet option)

Digital 2-way DeviceNet signal (Now Obsolete)
HART

Bell 202 signal is superimposed on the primary milliamp output
HART communication is not available on PROFIBUS-DP and DeviceNet transmitter versions
Mounting options

Field mount, integral with sensor
Application types

Continuous process control
Two-phase flow/entrained gas
Meter verification
Hazardous approvals

C1D2
Zone 2
