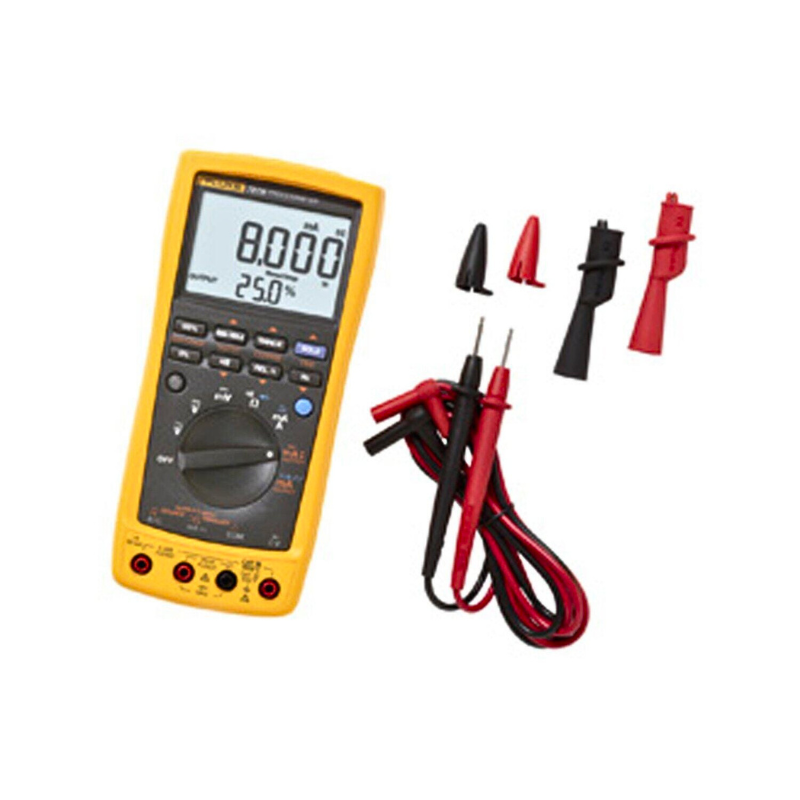

Fluke 787B ProcessMeter
$1,150.00
The Fluke 787B ProcessMeter is a rugged handheld instrument that combines the functionality of a precision digital multimeter with a milliamp loop calibrator for comprehensive process troubleshooting and calibration. It measures, sources, and simulates 4-20 mA current loops while providing true-RMS voltage, resistance, frequency, and continuity measurements. Featuring manual and automatic step/ramp functions and compatibility with Fluke Connect® for wireless data logging, the 787B enhances field diagnostics and reduces the need to carry multiple tools, making it ideal for industrial maintenance and process control applications.
Fluke 787B and 789 ProcessMeter™ | Data Sheet
Key features
- Compact digital multimeter and mA loop calibrator solution
- Measure/Source/Simulate loop currents while powering the loop
- Manual and automatic ramp up – ramp down functions
- Easy-to-read backlit display
| Maximum voltage applied between any jack and earth ground | 1000 V RMS |
|---|---|
| Storage temperature | -40 °C to 60 °C |
| Operating temperature | -20 °C to 55 °C |
| Temperature coefficient | 0.05 x (specified accuracy) per °C (for temperatures < 18 °C or > 28 °C) |
| Relative humidity | 95% up to 30 °C; 75% up to 40 °C; 45% up to 50 °C; 35% up to 55 °C |
| Vibration | Random, 2 g, 5-500 Hz |
| Shock | 1 meter drop test |
| Safety | IEC61010-1, Pollution Degree 2/IEC61010-2-033, CAT IV 600 V/CAT III 1000 V |
| Size (HxWxL) | 50 x 100 x 203 mm (1.97 x 3.94 x 8.00 in) |
| Weight | 600 g (1.3 lbs) |
| Battery | Four AA alkaline batteries |
| Battery life | 140 hours typical (measurement), 10 hours typical (sourcing 12 mA) |
