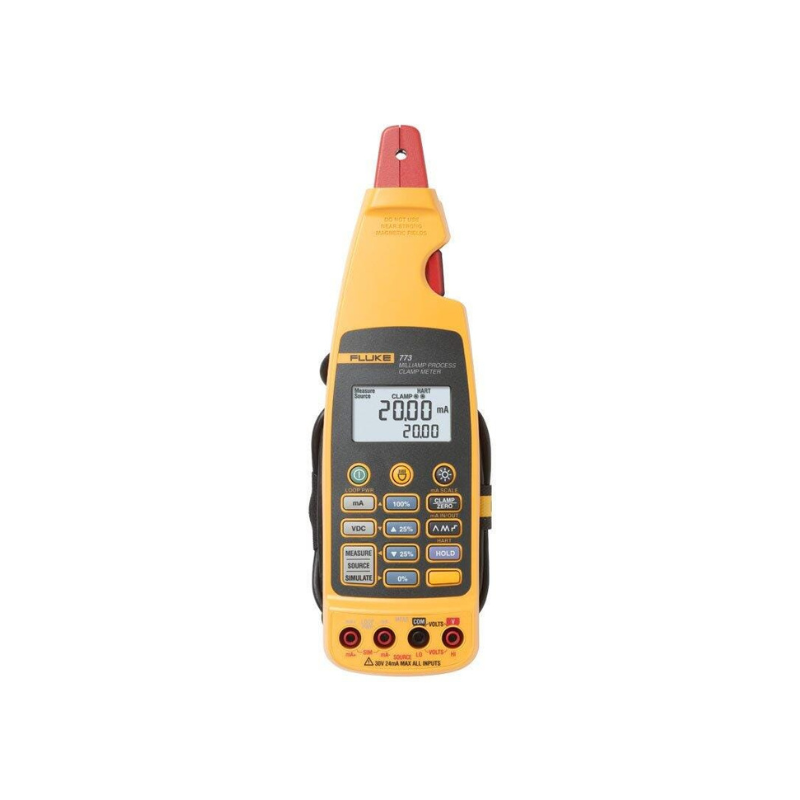

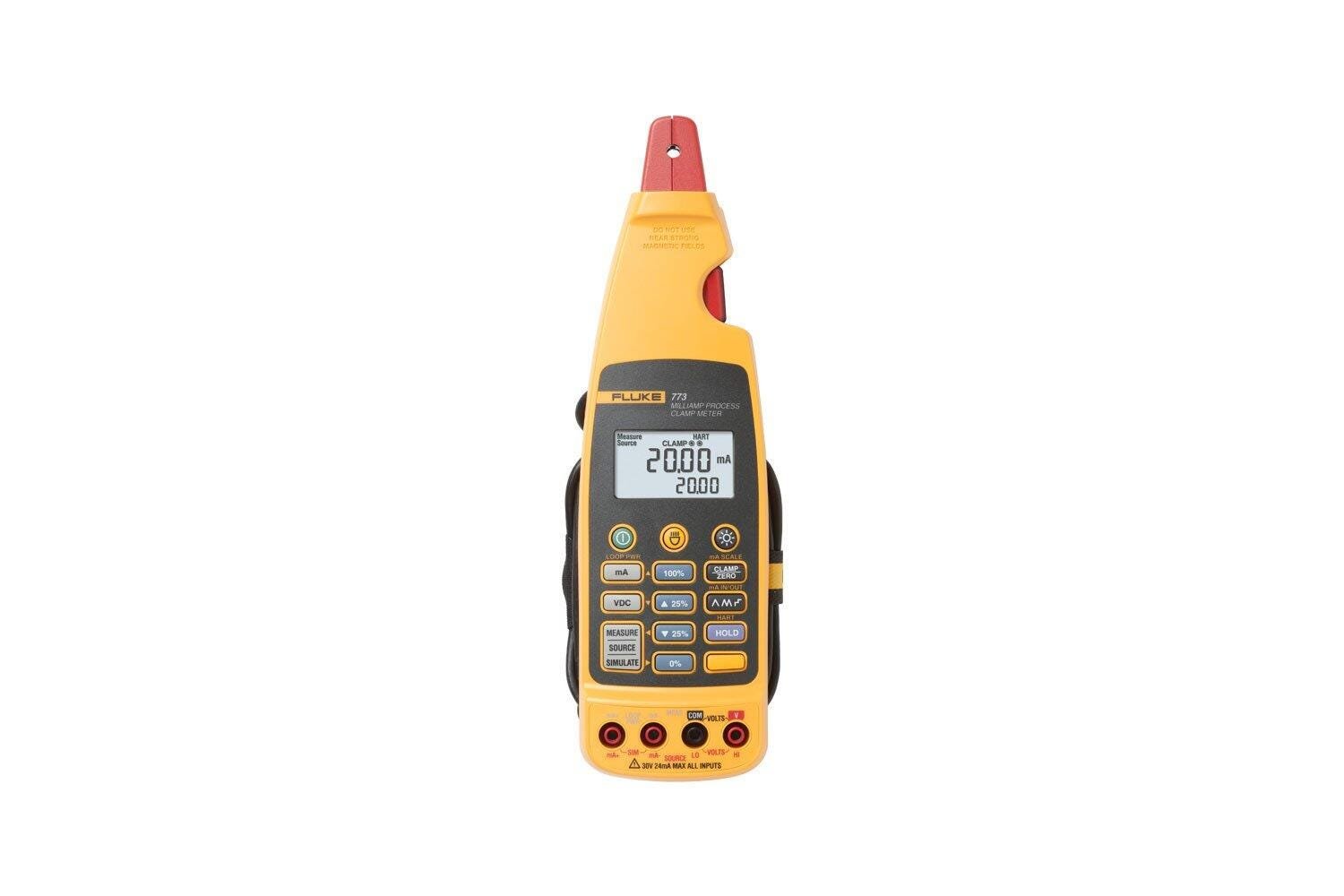

Fluke 773 Milliamp Process Clamp Meter
$900.00

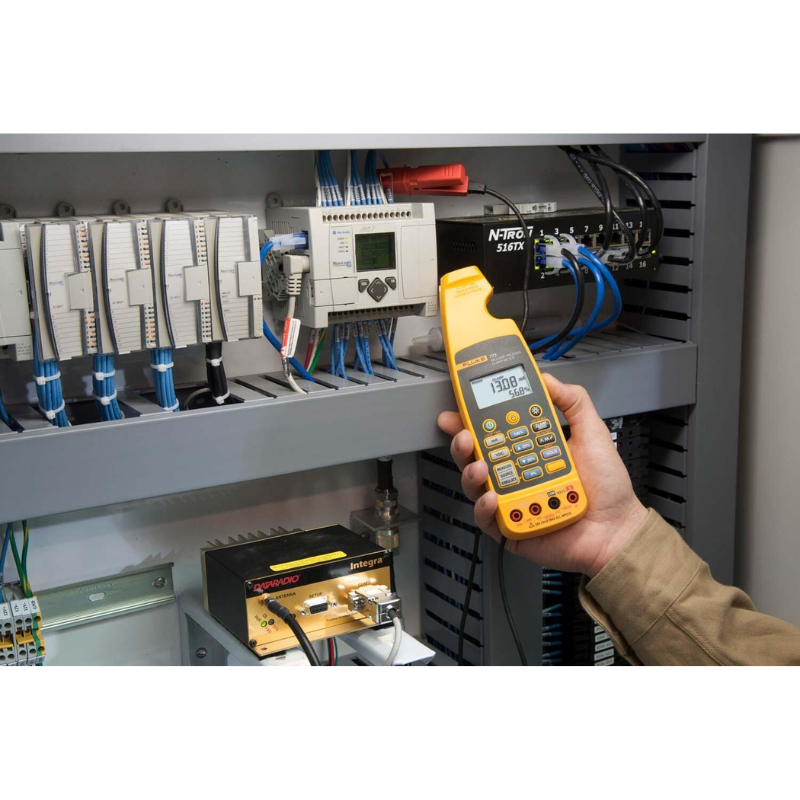

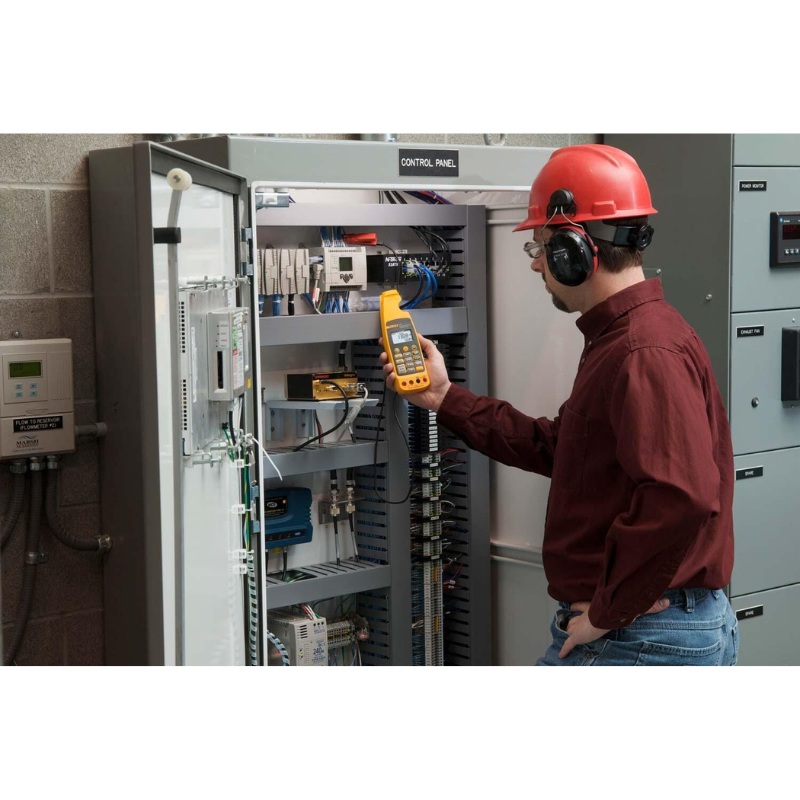

The Fluke 773 Milliamp Process Clamp Meter is a specialized field instrument designed for efficient measurement, sourcing, and simulation of 4-20 mA current loops without breaking the circuit. Its clamp-on design allows technicians to troubleshoot live control loops quickly while minimizing process disruption. In addition to non-contact mA measurement, the Fluke 773 supports mA sourcing and simulation, as well as DC voltage measurement, making it suitable for testing transmitters, control systems, and I/O signals. Built for industrial environments, it features a rugged housing, clear display, and high accuracy for reliable use in process control, maintenance, and commissioning applications.
773 / 772 / 771 mA Clamp Meter data sheet
Key features
- Measure 4 to 20 mA signals without breaking the loop
- Source/simulate 4 to 20 mA signals and provide loop power
- Source/measure DC voltage to verify power supplies or I/O signals
- Best in class accuracy of 0.2%
- Delivers 0.01 mA resolution and sensitivity
| Diameter of measurable conductor | 0.177" or 4.5 mm max |
|---|---|
| Operating temperature | -10 to 50ºC |
| Storage temperature | -25 to 60ºC |
| Operating humidity | < 90% @ <30ºC, < 75% @ 30 to 55ºC |
| Operating altitude | 0 to 2000 m |
| IP rating | IP 40 |
| Size | 44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in) |
| Weight | 410 g, (14.4 oz) |
| Vibration | Random 2 g, 5 to 500 Hz |
| Shock | 1 meter drop test (except the jaw) |
| Temperature coefficient | 0.01% ºC |
| Power, battery life | (4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms |
