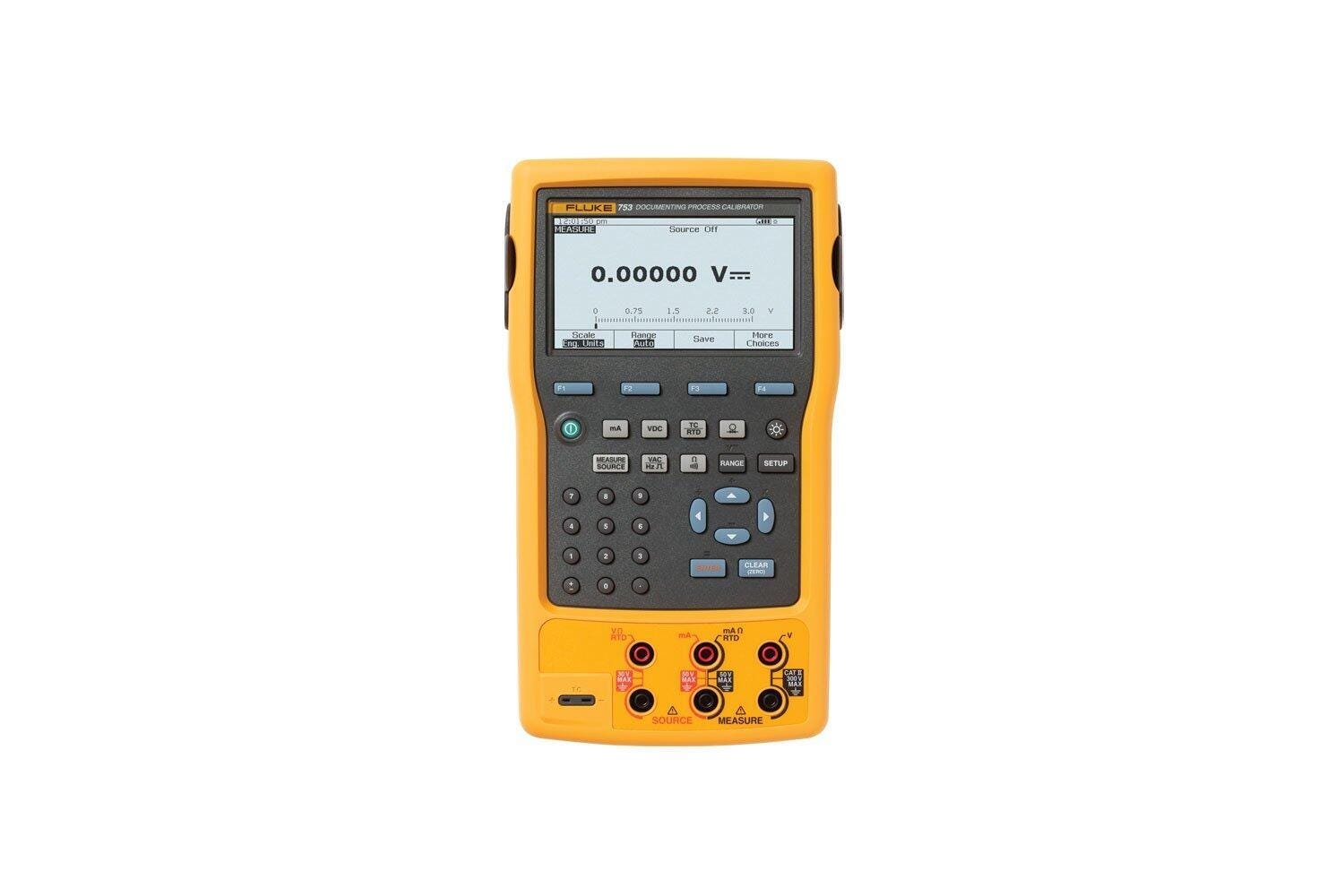

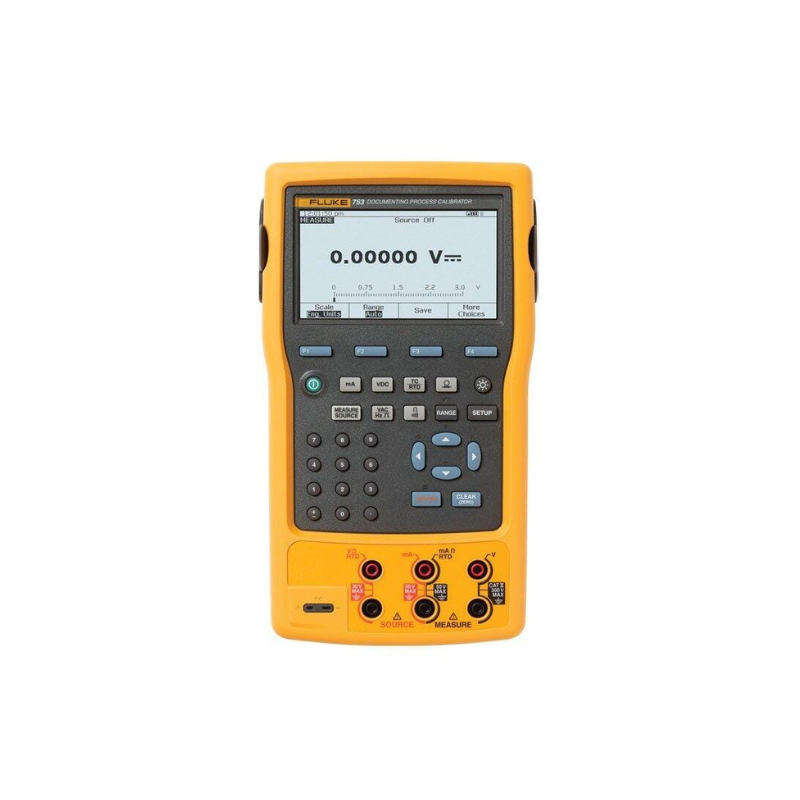

Fluke 753 Documenting Process Calibrator
$5,500.00
The Fluke 753 Documenting Process Calibrator is a multifunction handheld instrument designed for accurate calibration of industrial process devices. It combines signal measurement, sourcing, and automatic documentation in a single unit, supporting voltage, current, temperature, resistance, frequency, and pressure (with modules). The Fluke 753 improves field calibration efficiency while ensuring traceable and repeatable results in process control and maintenance applications.
Fluke 753 Documenting Process Calibrator | Data sheets
Key features
- Full-featured documenting process calibrator for calibrating and troubleshooting
- Measures volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
- Sources and simulate volts, mA, pressure, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
- Powers transmitters during test using loop supply with simultaneous mA
| Operating temperature | -10°C to +50°C |
|---|---|
| Storage temperature | -20°C to +60°C |
| Dust/water resistance | Meets IP52, IEC 529 |
| Operating altitude | 3000 m above mean sea level (9842 ft) |
| Size | 136 x 245 x 63 mm (5.4 x 9.6 x 2.5 in) |
| Weight | 1.2 kg (2.7 lb) |
| Batteries | Internal Battery Pack Li-ion: 7.2 V, 4400 mAh, 30 Wh |
| Battery life | > 8 hours typical |
| Battery replacement | Via snap-shut door without opening calibrator; no tools required |
| Side port connections | Pressure module connector |
| Data storage capacity | 1 week of calibration procedures results |
Related products
-
-
Sale!
Pressure MeasurementWIKA Models 111.10, 111.12 Bourdon tube pressure gauge copper alloy Standard version
Original price was: $50.00.$35.00Current price is: $35.00. Add to cart -

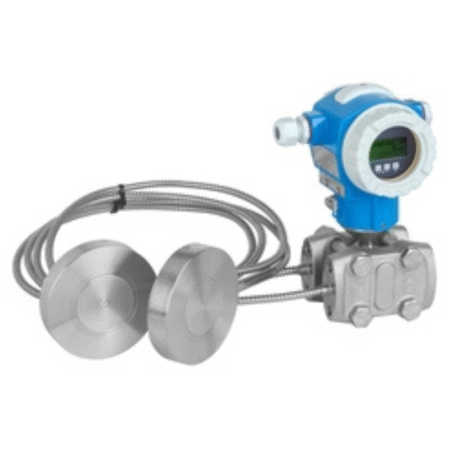

Pressure MeasurementEndress+Hauser Deltabar PMD55B – differential pressure transmitter
