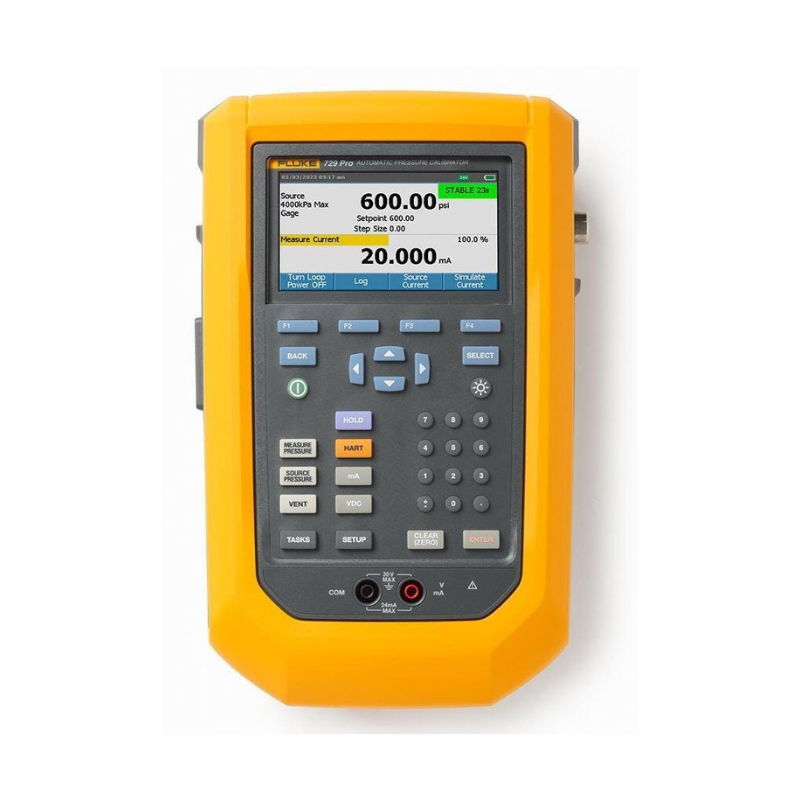

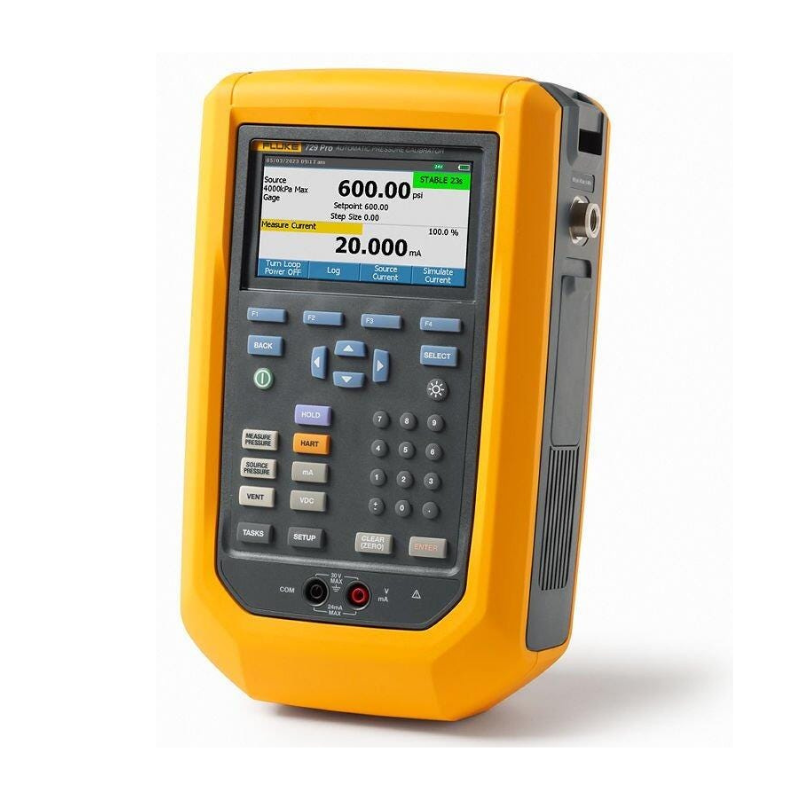

Fluke 729 Pro Automatic Pressure Calibrator
$12,000.00
Typical Applications:
• Automatic on-site calibration of pressure transmitters
• Maintenance and commissioning of pressure instruments
• Field calibration tasks requiring speed and repeatability
• Industrial applications where manual pressure generation is inefficient
Not Recommended For:
• Permanent installation or continuous pressure monitoring
• Applications requiring bench-top laboratory calibration systems
• Simple verification tasks where basic manual calibrators are sufficient
The Fluke 729 Pro Automatic Pressure Calibrator simplifies industrial pressure calibration with automatic pressure generation and control up to 1000 psi using internal electric pumping and replaceable pressure modules.
Selection Notes
• Confirm that an automatic pressure calibrator is required for the workflow
• Automatic pressure generation improves calibration speed and consistency
• Designed for field use with minimal manual adjustment
• Suitable for routine calibration of pressure transmitters
• Regular verification ensures long-term calibration accuracy
Why Choose the Fluke 729 Pro
• Automatic pressure generation and regulation
• Optimized for on-site calibration of pressure transmitters
• Reduces manual effort and calibration time
• Proven Fluke technology for industrial maintenance teams
Key features
- Automatic pressure generation and regulation to 1000psi

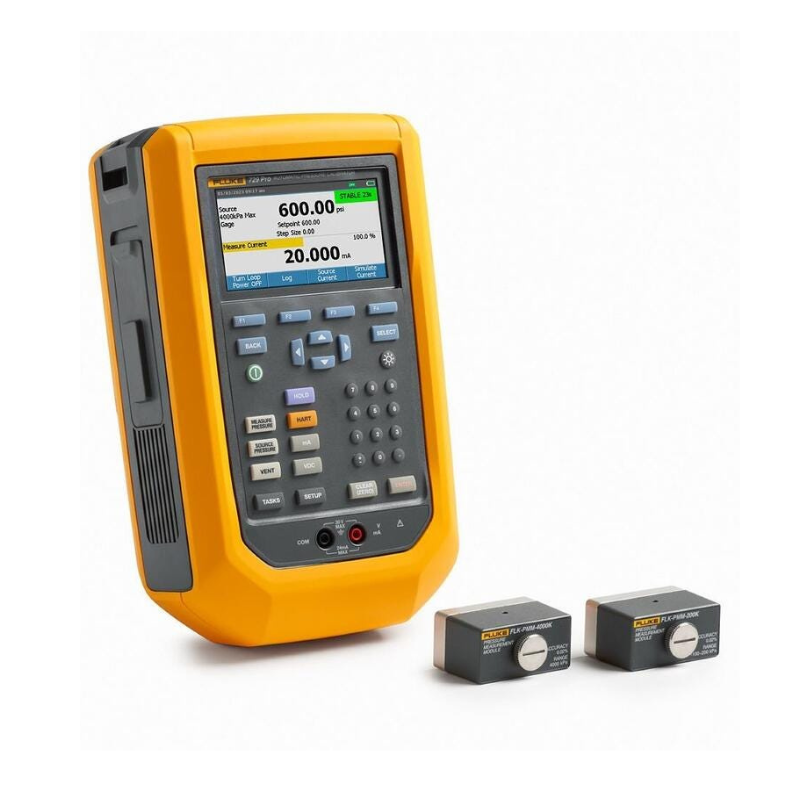

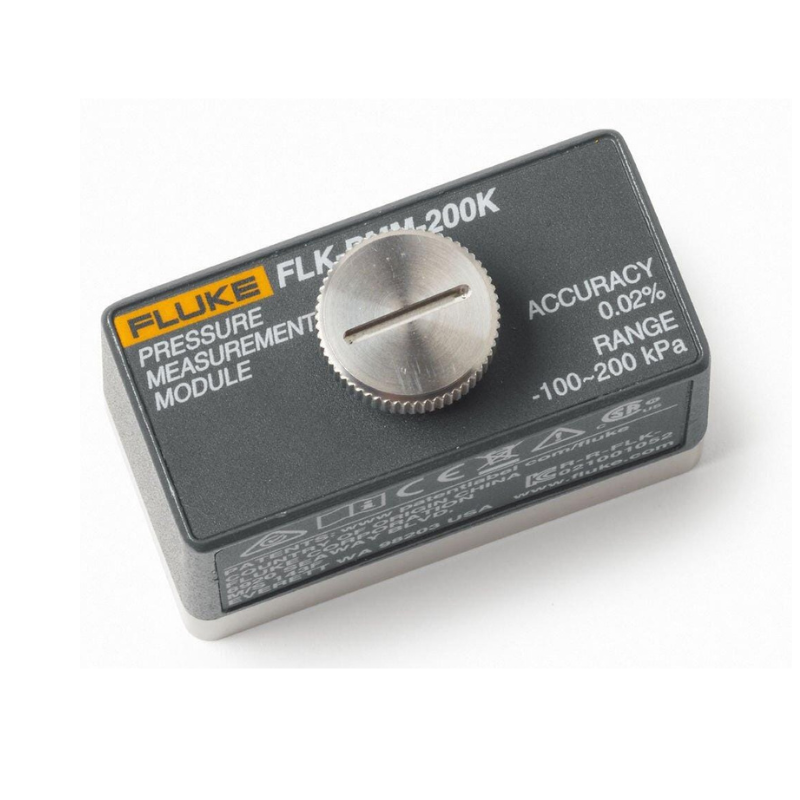

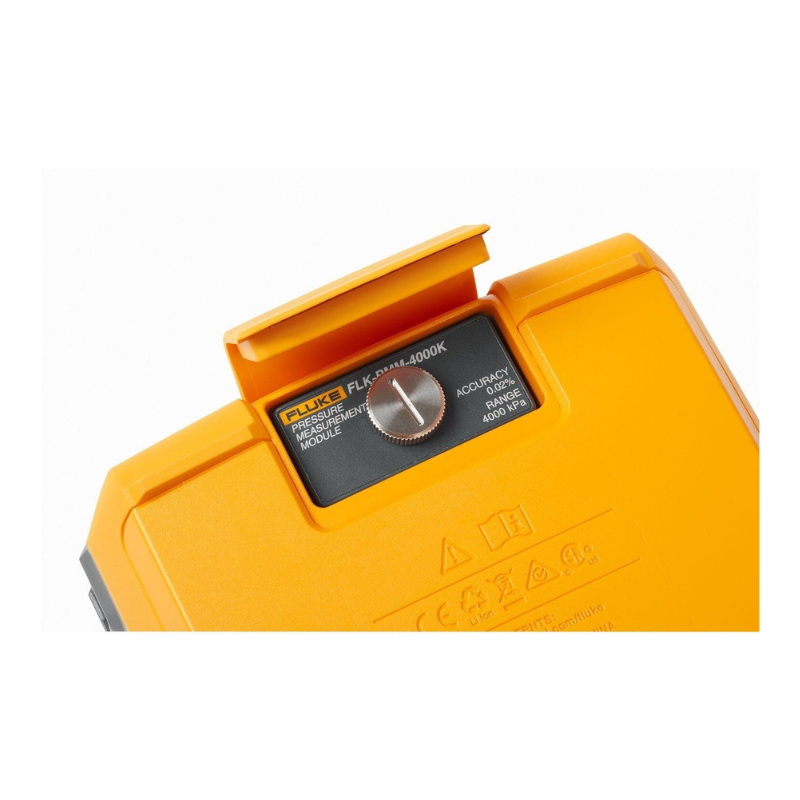

- Replaceable pressure control modules
- Built-in test templates, one-key calibration
- HART communication
- Pressure leakage testing
- Automatic fine-pressure adjustment, automatic pressure stabilization
- Powerful, replaceable Li-ion battery
- Quick pressure release valve with a muffler
- Extend measurement range with 750P Series pressure modules
- Measure temperature with 720RTD probe
- Bright dual-three-channel /color graphic display
- Weight <5kg
- Rugged and portable design with standard 3-year warranty
- Absolute and gage pressure modules up to 7MPa.
- Use the modules to change the Fluke 729Pro to a different output pressure range
FAQ
Q: What makes the Fluke 729 Pro different from manual pressure calibrators?
A: The 729 Pro features automatic pressure generation, reducing manual pumping and improving efficiency.
Q: Is the 729 Pro suitable for field calibration?
A: Yes. It is designed specifically for portable on-site calibration work.
Q: Can it be used for pressure transmitter calibration?
A: Yes. It is optimized for calibrating pressure transmitters in the field.
Q: Can you help confirm if an automatic calibrator is necessary for my application?
A: Yes. Our engineers can review your calibration tasks and recommend the right solution.
| Pressure type | Gauge/absolute (Depends on the type of internal or external pressure module |
|---|---|
| Pressure accuracy and Control stability | 0.02% of FS, 0.005% of FS |
| mA measure, source and simulate | 0 mA to 24 mA |
| Volts dc measurement | 0 V dc to 30 V dc |
| mA dc source, simulate and measure | 1 μA |
| Accuracy | 0.01% FS ±2 LSD all ranges (at 23 °C ±5 °C) |
| Stability | 20 ppm FS /°C (-10 °C to +18 °C and 28 °C to 50 °C) |
| Temperature measurement , 100 Ω Pt(385) RTD | -50 °C to 150 °C |
| Temperature resolution | 0.01 °C |
| Dimension (HxWxL) | 290 x 215 x100 mm, (4.3 x 4.4 x 9.4 in) |
| Weight | 4.9 kg, (10.8 lbs) |
