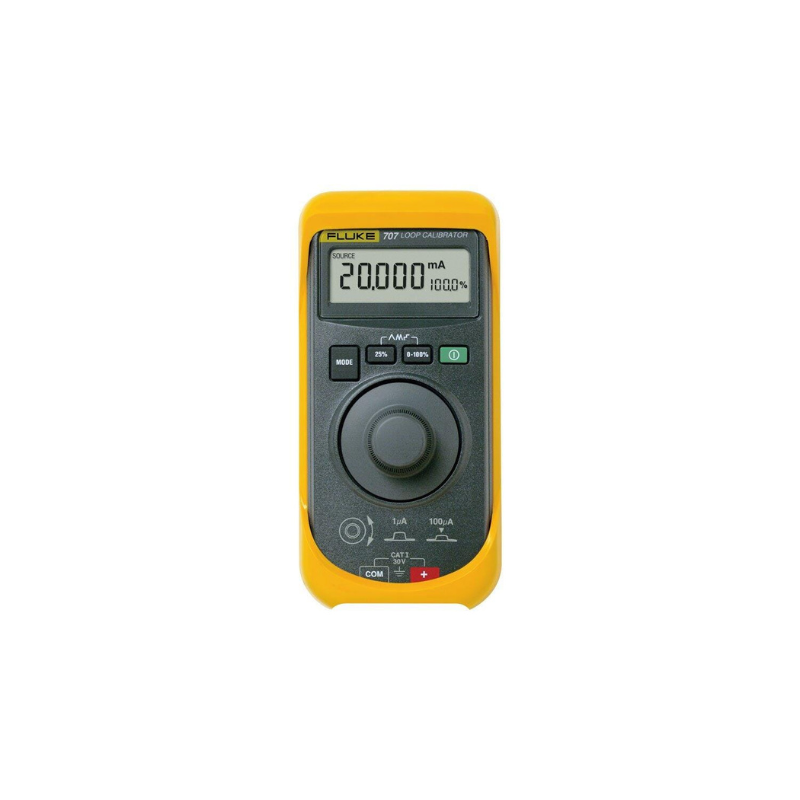

Fluke 707 Current Loop Calibrator with Quick Click Knob
$1,150.00
Typical Applications:

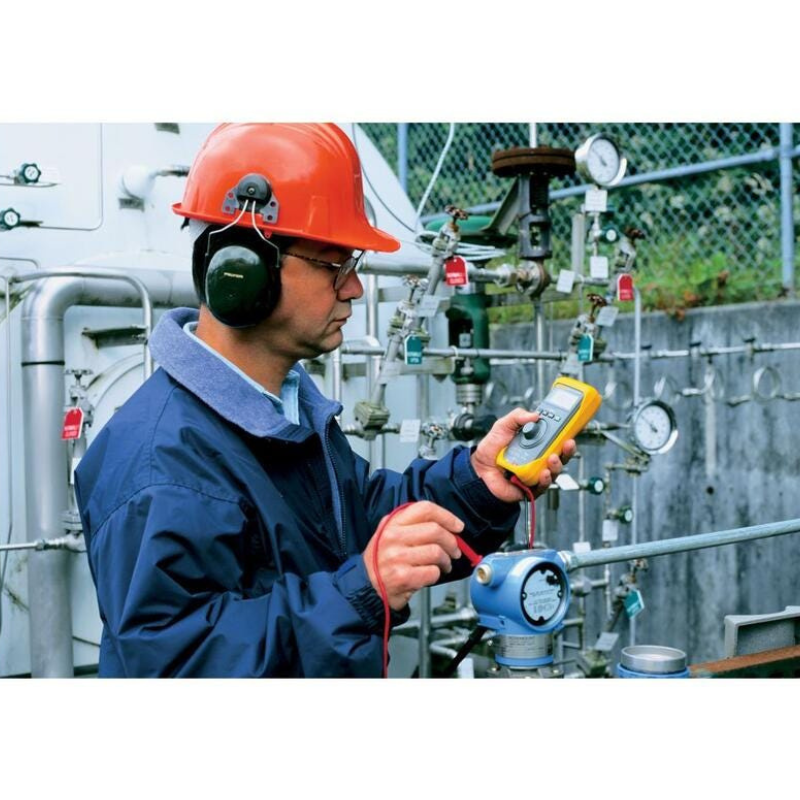

• Field calibration, testing, and maintenance of mA current loops
• Calibration of transmitters, loops, and instrumentation in industrial systems
• Maintenance in water/wastewater, petrochemical, pharmaceutical, and power sectors
• On-site loop functional testing and verification
Not Recommended For:
• Permanent installation or continuous monitoring applications
• Laboratory bench-top calibration systems requiring ultra-high precision
• Calibration of non-mA loops or signals outside the supported range
The Fluke 707 Current Loop Calibrator is a high-performance calibration instrument combining mA sourcing, simulation, and measurement to support 0–20 mA or 4–20 mA loop checks with precision and ease.
Loop Calibrators Data Sheet
Selection Notes
• Confirm that an mA loop calibrator is required for current loop testing and maintenance
• Portable calibrators are ideal for field verification and troubleshooting
• Ensure the expected current range (0-20 mA or 4-20 mA) falls within the instrument’s capabilities
• Compatible with HART® loop conditions via series resistance
• Regular verification helps ensure ongoing measurement accuracy and signal integrity
Why Choose the Fluke 707 Current Loop Calibrator
• Portable mA loop calibrator with simple one-hand operation and quick-click knob :contentReference[oaicite:1]{index=1}
• High accuracy current sourcing and measurement for 0-20 mA or 4-20 mA loops :contentReference[oaicite:2]{index=2}
• Built-in loop power (24 V) for comprehensive field verification :contentReference[oaicite:3]{index=3}
• Simultaneous % of span readout and selectable ramp/step outputs :contentReference[oaicite:4]{index=4}
• Protective holster and test leads included, backed by a three-year warranty :contentReference[oaicite:5]{index=5}
Key features
- High performance loop calibrator for calibration, repair, and maintenance
- Features large display and simple, quick-click interface for easy one-handed operation.
- Provides simultaneous mA and % readout for quick, easy interpretation of readings.
- Delivers mA accuracy of 0.015%
- Provides 1 µA resolution for mA source, simulate, and measure
FAQ
Q: What types of loops can the Fluke 707 calibrate?
A: The Fluke 707 supports calibration and testing of current loops in the range of 0-20 mA or 4-20 mA. :contentReference[oaicite:6]{index=6}
Q: Can the 707 supply loop power?
A: Yes. It includes a built-in 24 V loop power supply for powering a transmitter while measuring. :contentReference[oaicite:7]{index=7}
Q: Is the Fluke 707 suitable for HART communicator compatibility?
A: Yes. It provides series resistance compatible with HART communicators. :contentReference[oaicite:8]{index=8}
Q: Can you help confirm if this calibrator fits my calibration tasks?
A: Yes. Our engineers can review your current loop requirements and recommend the right solution.
| Operating temperature | -10°C to 55°C |
|---|---|
| Storage temperature | -30°C to 60°C |
| Humidity (without condensation) | 0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C) |
| Temperature coefficient | -10°C to 18°C, 28°C to 55°C, ±.005% of range per °C |
| Safety | CSA C22.2 No. 1010.1:1992 |
| EMC | EN50082-1:1992 and EN55022:1994 Class B |
| Maximum voltage | 30 V |
| Size | 152 x 70 x 41 mm |
| Weight | 224 g (340 g including holster) |
| Batteries | One 9 V battery Alkaline |
| Shock and vibration | Per MIL-T-28800 for a Class 2 Instrument |
