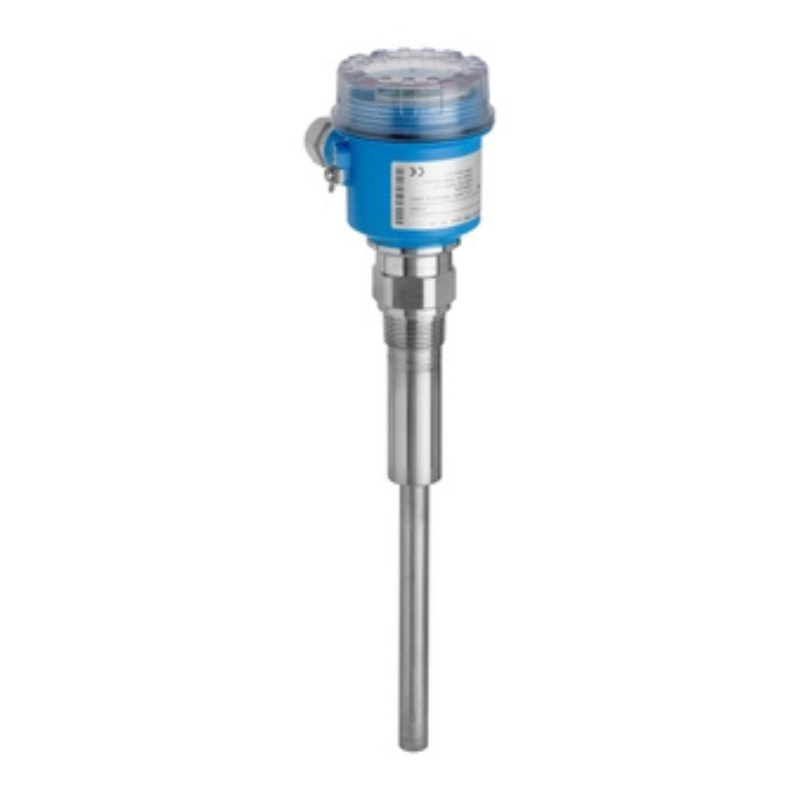

Endress+Hauser Vibronic Point level detection Soliphant FTM20

Vibronic  Point level detection Soliphant FTM20

Compact limit switch for bulk solids

Specs at a glance

• Process temperature

  -40°C … 150°C
  (-40°F … 300°F)

• Process pressure / max. overpressure limit

  Vacuum … 25 bar
  (Vacuum … 360 psi)

• Min. density of medium

  200 g/l

Field of application

Soliphant FTM20 is a point level switch for applications with fine-grained or coarse-grained, non-fluidized bulk solids. The various designs means the device has a wide range of applications. Certificates are also available for use in dust and hazardous areas.

Benefits

• No calibration required, easy commissioning (plug and play)

• Measurement not affected by build-up or external vibration

• No mechanically moved parts, free of maintenance

• Sensor material 316L, abrasion resistant even with building materials

• Plastic housing with cover with sight glass, switch status visible from outside;
  also aluminium housing available

• Not affected by flow noises

• Available with explosion protection certificates
