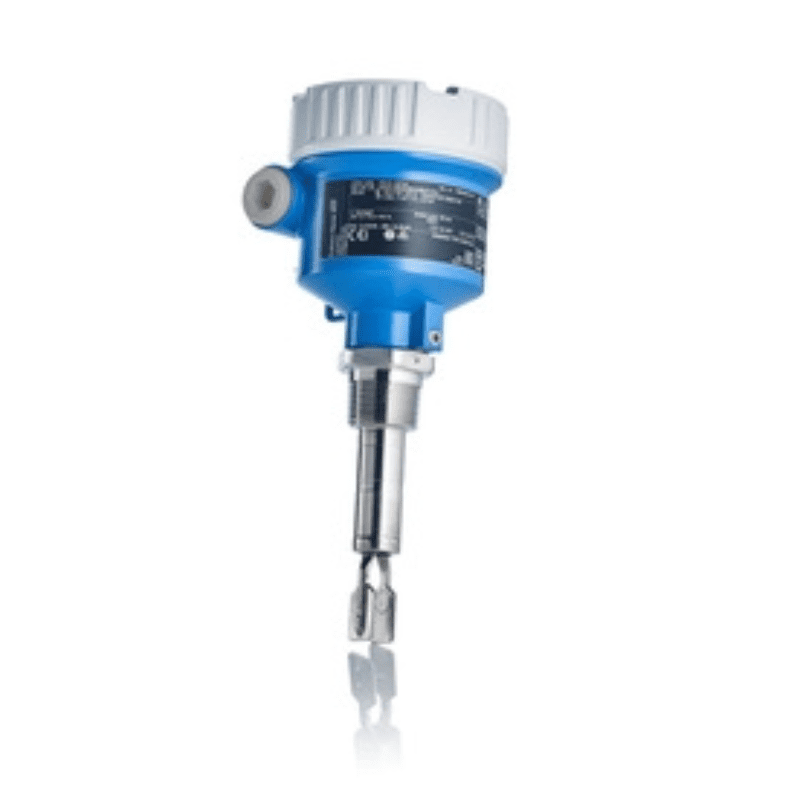

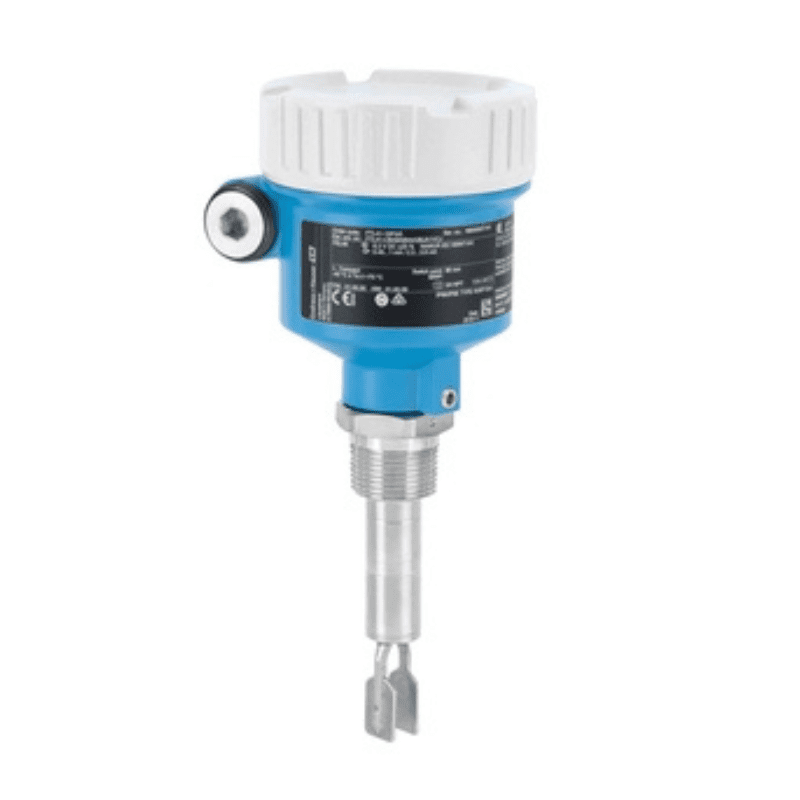

Endress+Hauser Vibronic Point level detection Liquiphant FTL41
$650.00
Over 6 million installed Liquiphant point level switches in the field worldwide prove the day-to-day realiability of this device. With its active sensor technology you always be sure that your device is working correctly.
In addition there is no need of adjustment to different media.
Vibronic Point level detection Liquiphant FTL41
The vibronic level switch in basic applications reduces complexities in your plant
Specs at a glance
-
Process temperature
-40 °C…+150 °C
(-40 °F…+302 °F) -
Process pressure / max. overpressure limit
Vacuum…40 bar
(Vacuum…580 psi) -
Min. density of medium
0.5 g/cm³
(0.4 g/cm³ optional)
Field of application
Over 6 million installed Liquiphant point level switches in the field worldwide prove the day-to-day realiability of this device. With its active sensor technology you always be sure that your device is working correctly.
In addition there is no need of adjustment to different media.
Point level switch with extension tube for all liquids.
-
Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)
-
Temperature: -40 to +150°C (-40 to +302°F)
-
Pressure: -1 to +40bar (-14.5 to +580psi)
-
Sensor material: 316L
-
International explosion protection certificates, WHG
Benefits
-
One measuring system for any liquid. Simple to use with plug and play functionality based on active sensor technology
-
Better long-term stability compared to float switches
-
Repeatability of switching point
-
Universal use in all pumpable liquids
-
No need of maintenance
| Measuring principle | Vibration Liquids |
|---|---|
| Characteristic / Application | Compact vibronic device with an optional pipe extension up to 2 m; |
| Specialities | RFID TAG for easy identification, |
| Supply / Communication | 10…55V / DC-PNP 3-wire |
| Ambient temperature | -40 °C…+70 °C |
| Process temperature | -40 °C…+150 °C |
| Process pressure / max. overpressure limit | Vacuum…40 bar |
| Min. density of medium | 0.5 g/cm³ |
| Main wetted parts | 316L |
| Process connection | Threads: |
| Process connection hygienic | Tri-Clamp ISO2852 |
| Sensor length | Up to 2 m |
| Communication | DC-PNP 3-wire |
| Certificates / Approvals | ATEX, IEC Ex, CSA, NEPSI |
| Safety approvals | Overfill protection WHG |
| Design approvals | EN 10204-3.1 |
| Marine approval | ABS/ LR/ BV/ DNV |
| Components | FTL325N Interface NAMUR |
