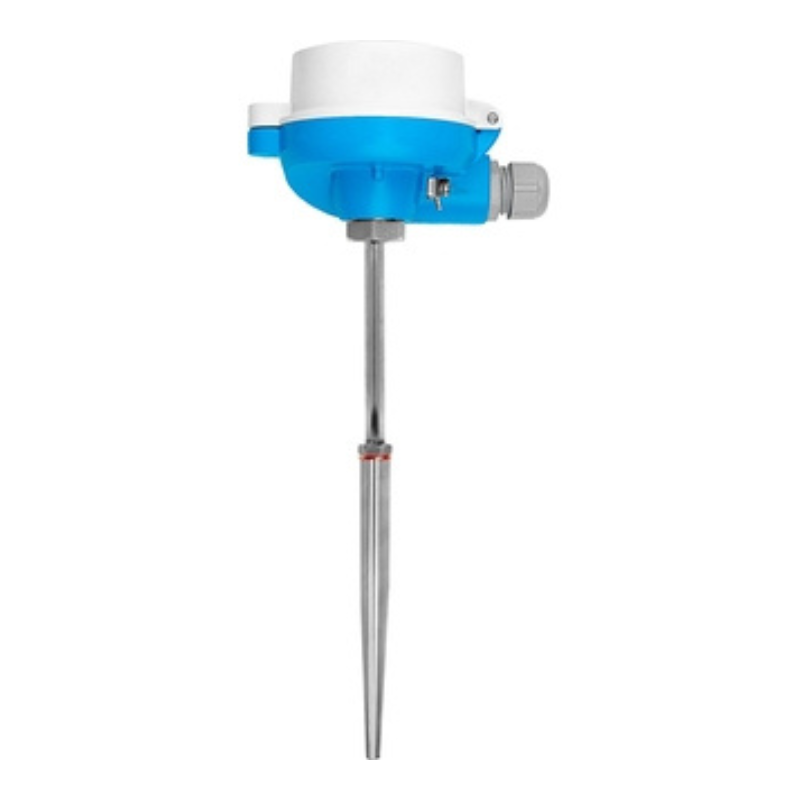

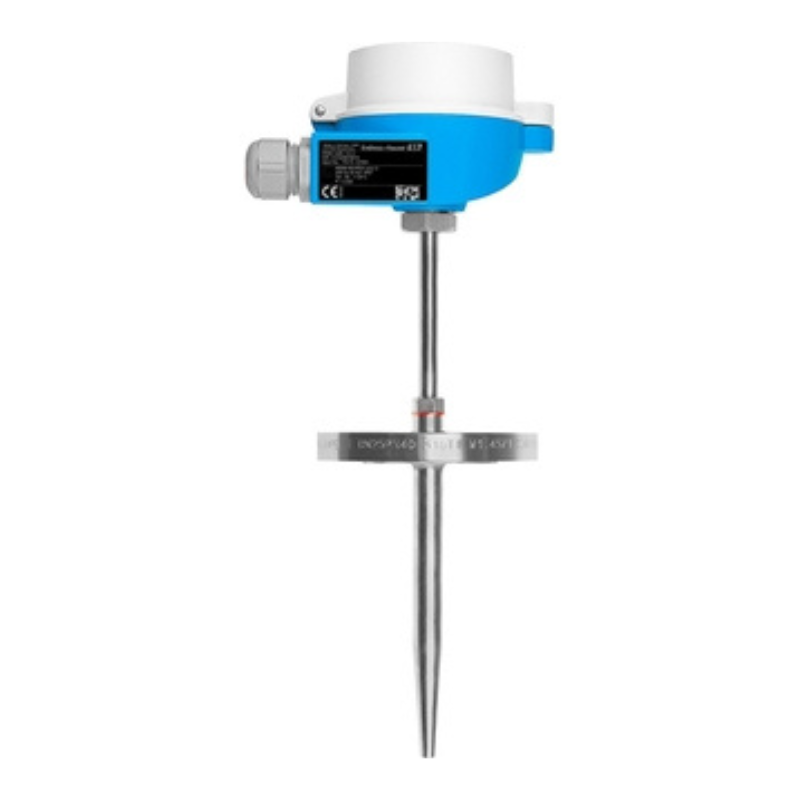

Endress+Hauser TR15 Modular RTD thermometer

Selection Notes

• Please confirm process temperature, pressure, and immersion length before selection
• For high-pressure or high-flow applications, a suitable thermowell is strongly recommended
• Installation position has a direct impact on measurement accuracy and response time
• Material compatibility should be verified for corrosive or aggressive mediaTR15 Modular RTD thermometer

How We Support Your Application

• Review your process conditions and operating requirements
• Recommend suitable configuration based on real application needs
• Help avoid over-specification or incorrect model selection
• Provide technical datasheets and quotation for confirmation

Specs at a glance

• Accuracy

  class A acc. to IEC 60751
  class AA acc. to IEC 60751

• Response time

  depending on configuration

• Max. process pressure (static)

  at 20 °C: 400 bar (5.802 psi)

• Operating temperature range

  PT100 TF iTHERM StrongSens:
  -50 °C …500 °C
  (-58 °F …932 °F)
  PT100 WW:
  -200 °C …600 °C
  (-328 °F …1.112 °F)
  PT100 TF:
  -50 °C …400 °C
  (-58 °F …752 °F)

• Max. immersion length on request

  up to 30.000,00 mm (1.181,10”)

Field of application

The robust thermometer is designed for use in demanding applications like gas or steam applications e.g. in the Chemical, Oil & Gas and Energy industry. Highest pressures as well as high temperature can be handled by the use of robust protection tubes and special process connections. An optional head transmitter with all common communication protocols makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors.

Benefits

• High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths

• High degree of insert compatibility and design as per DIN 43772

• Extension neck to protect the head transmitter from overheating

• Fast response time with reduced/tapered tip form

• Types of protection for use in hazardous locations: Intrinsic safety (Ex i.a.), non-sparking (Ex nA)

Head transmitter with easy selection: Analog output 4 to 20 mA, HART®, PROFIBUS® PA or FOUNDATION Fieldbus™

FAQ

Q: Can this TR15 RTD thermometer replace older Endress+Hauser models?
A: Yes. Equivalent or upgraded configurations can be recommended based on your application.

Q: Is customization available for probe length or process connection?
A: Yes. Probe length, thermowell type, and process connection can be customized.

Q: Can you help confirm suitability before placing an order?
A: Yes. Our engineers can review your application details and confirm suitability.
