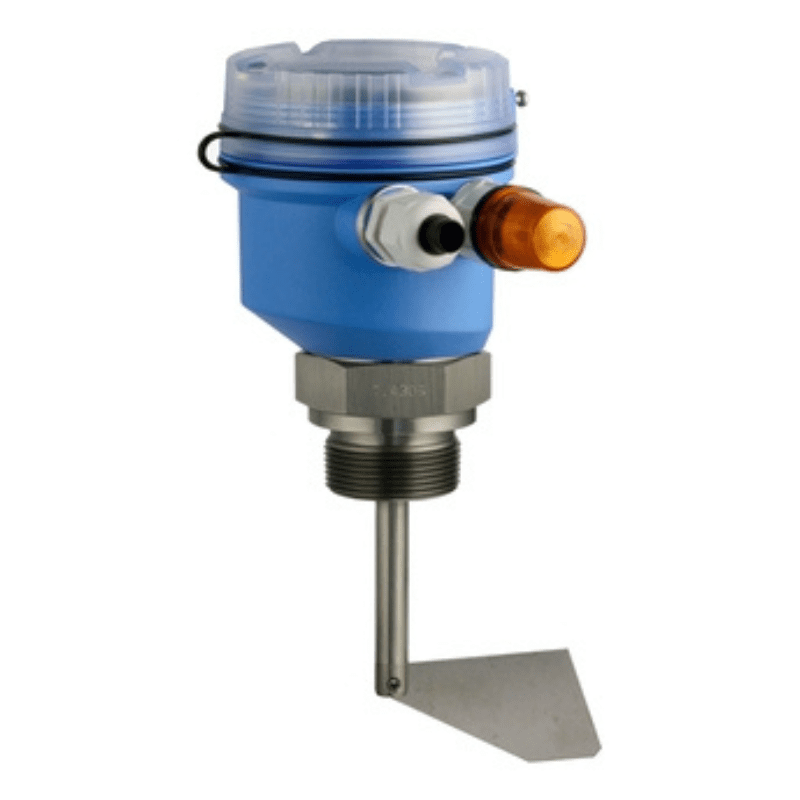

Endress+Hauser Rotary paddle point level switch FTE20
$220.00
The Soliswitch FTE20 is a versatile rotary paddle point level switch that has been specially developed for bulk solid applications. Its compact design and high resistance enable reliable use even under demanding conditions. The device offers flexible mounting options and supports easy commissioning and adaptation to different material characteristics. In addition, integrated safety functions and international approvals ensure safe operation even in potentially explosive atmospheres.
Rotary paddle point level switch FTE20
Simple mechanical mechanism, extremely robust and cost-effective point level switch for bulk solids
Specs at a glance
-
Process temperature
-20 °C … 80 °C (-4 °F … 170 °F)
-
Process pressure / max. overpressure limit
0.5 bar to 1.5 bar (7 psi … 22 psi)
-
Min. density of medium
>= 80 g/l
Field of application
The Soliswitch FTE20 is a versatile rotary paddle point level switch that has been specially developed for bulk solid applications. Its compact design and high resistance enable reliable use even under demanding conditions. The device offers flexible mounting options and supports easy commissioning and adaptation to different material characteristics. In addition, integrated safety functions and international approvals ensure safe operation even in potentially explosive atmospheres.
-
The economical Soliswitch FTE20 rotary paddle point level switch is ideal for use in bulk solids
-
Thanks to its compact design and robust polymer housing, the sensor can be used flexibly in silos
-
It can be used reliably as a full, empty or demand indicator
-
Thanks to its construction and the materials used, the FTE20 is extremly robust and can withstand even the most demanding conditions
-
The sensor can be used in hazardous atmospheres with a risk of dust explosion
Benefits
-
Overfill protection with automatic rotation monitoring
-
Optical rotation control for fast and easy checking during installation and troubleshooting
-
Extremely robust polymer housing with global Ex certificates for ATEX, IECEx, FM, UK CA und INMETRO
-
Quick ordering, easy configuration, and commissioning
-
Tool-free adjustment to the weight of the bulk solids
-
Housing can be rotated up to 360° for optimal alignment after installation
-
Resistance coupling element for line break and short-circuit monitoring as optional accessories
| Measuring principle | Paddle |
|---|---|
| Characteristic / Application | universally applicable as a full, empty and demand alarm on silos containing solids |
| Specialities | Rotation Monitoring System |
| Supply / Communication | 230 VAC 50/60 Hz |
| Ambient temperature | -20 °C … 60 °C (-4 °F … 140 °F) |
| Process temperature | -20 °C … 80 °C (-4 °F … 170 °F) |
| Process pressure / max. overpressure limit | 0.5 bar to 1.5 bar (7 psi … 22 psi) |
| Min. density of medium | >= 80 g/l |
| Main wetted parts | 1.4305 |
| Max. tensile strength | Rope version >1500N |
| Process connection | NPT 1 1/2", PBT |
| Sensor length | 75 mm (3") |
| Communication | Micro switch with changeover contact max. 10 A/250 VAC |
| Certificates / Approvals | ATEX II1/2D Ex ta/tb IIIC Da/Db |
| Options | Rotation Monitoring System |
| Components | HAW569 Surge arrester |
