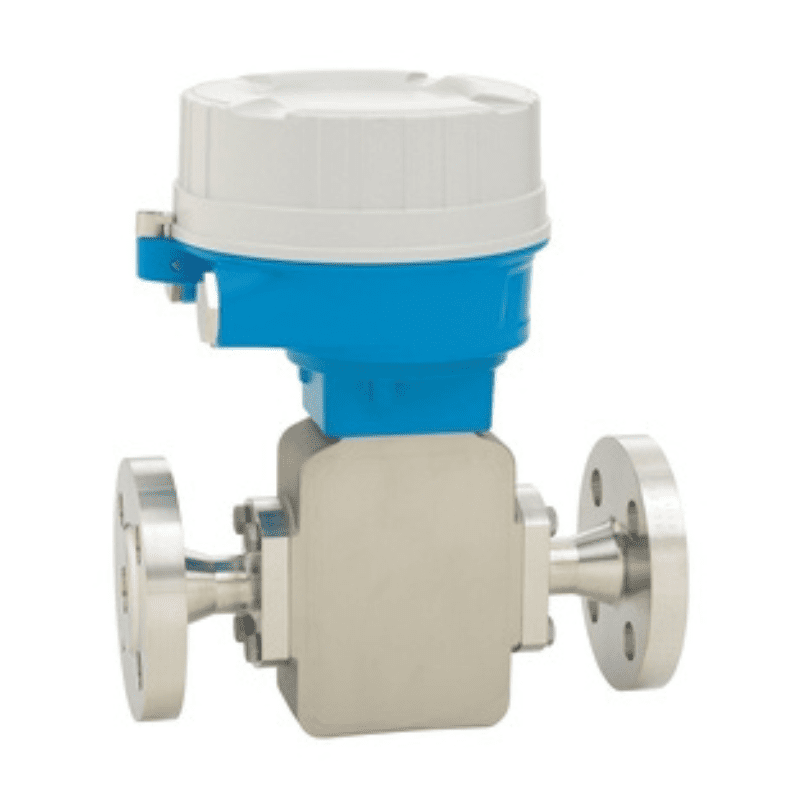

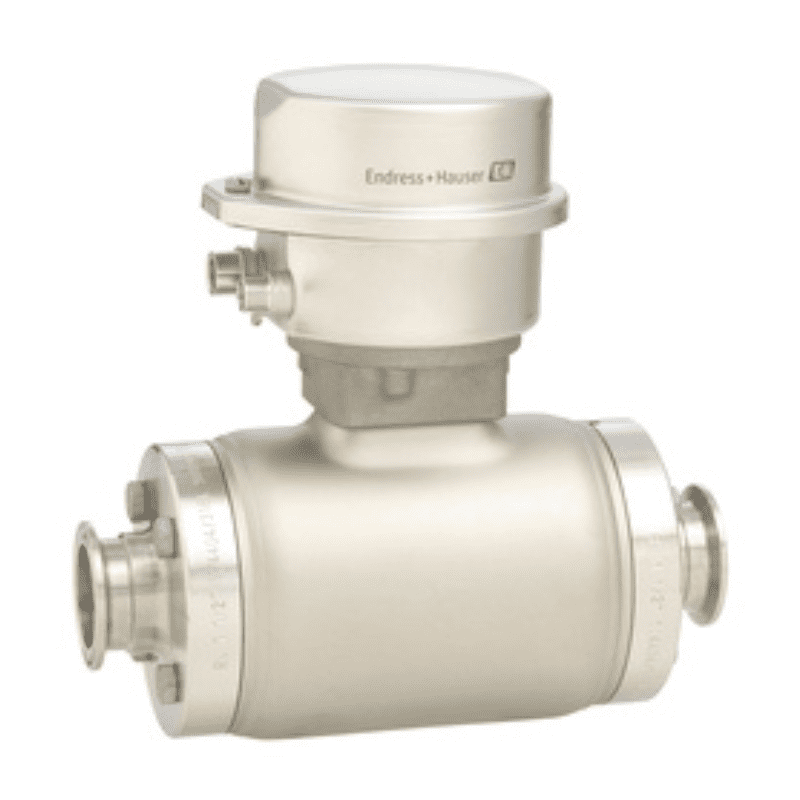

Endress+Hauser Proline Promag H 500 5H5B electromagnetic flowmeter
$3,400.00
Promag H is the preferred sensor for hygienic applications with highest requirements in the food and beverage and life sciences industries. With its innovative remote transmitter Promag H 500 maximizes installation flexibility and operational safety in demanding environments. Heartbeat Technology enables compliance and process safety at all times.
-
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
-
Dedicated to demanding applications in the food and beverage as well as in life sciences industries
Proline Promag H 500 electromagnetic flowmeter
Specialist for hygienic applications, as remote version with up to 4 I/Os
Specs at a glance
-
Max. measurement error
Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
Volume flow (option) ±0.2 % o.r. ± 2 mm/s (0.08 in/s) -
Measuring range
0.06 dm³/min to 600 m³/h (0.015 gal/min to 2 650 gal/min)
-
Medium temperature range
–20 to +150 °C (–4 to +302 °F)
-
Max. process pressure
PN 40, Class 150, 20K
-
Wetted materials
Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum
Field of application
Promag H is the preferred sensor for hygienic applications with highest requirements in the food and beverage and life sciences industries. With its innovative remote transmitter Promag H 500 maximizes installation flexibility and operational safety in demanding environments. Heartbeat Technology enables compliance and process safety at all times.
-
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
-
Dedicated to demanding applications in the food and beverage as well as in life sciences industries
Device properties
-
Liner made of PFA
-
Sensor housing made of stainless steel (3-A, EHEDG)
-
Wetted materials CIP, SIP cleanable
-
Remote version with up to 4 I/Os; hygienic sensor connection housing with IP69
-
Backlit display with touch control & WLAN access
-
Standard cable between sensor & transmitter
Benefits
-
Multivariable measurement for flow, temperature and conductivity
-
Flexible installation concept – numerous hygienic process connections
-
Energy-saving flow measurement – no pressure loss due to cross-section constriction
-
Maintenance-free – no moving parts
-
Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
-
Reduced complexity and variety – freely configurable I/O functionality
-
Integrated verification – Heartbeat Technology
| Measuring principle | Electromagnetic |
|---|---|
| Product headline | Specialist for hygienic applications, as remote version with up to 4 I/Os. |
| Sensor features | Flexible installation concept – numerous hygienic process connections. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts. |
| Transmitter features | Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. |
| Nominal diameter range | DN 2 to 150 (¹⁄₁₂ to 6") |
| Wetted materials | Liner: PFA |
| Measured variables | Volume flow, temperature, conductivity, mass flow, corrected volume flow, corrected conductivity |
| Max. measurement error | Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s) |
| Measuring range | 0.06 dm³/min to 600 m³/h (0.015 gal/min to 2 650 gal/min) |
| Max. process pressure | PN 40, Class 150, 20K |
| Medium temperature range | –20 to +150 °C (–4 to +302 °F) |
| Ambient temperature range | –40 to +60 °C (–40 to +140 °F) |
| Sensor housing material | 1.4301 (304), corrosion resistant |
| Transmitter housing material | AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat |
| Degree of protection | Sensor remote version (standard): IP66/67, type 4X enclosure |
| Display/Operation | 4-line backlit display with touch control (operation from outside) |
| Outputs | 4 outputs: |
| Inputs | Status input |
| Digital communication | HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA |
| Power supply | DC 24 V |
| Hazardous area approvals | ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC; JPN, UK Ex, KC |
| Product safety | CE, C-tick, EAC marking |
| Functional safety | Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511 |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) |
| Marine approvals and certificates | LR approval, DNV approval, ABS approval, BV approval |
| Pressure approvals and certificates | PED, CRN |
| Material certificates | 3.1 material |
| Hygienic approvals and certificates | EHEDG, 3-A, liner and seals acc. to FDA, cGMP |
