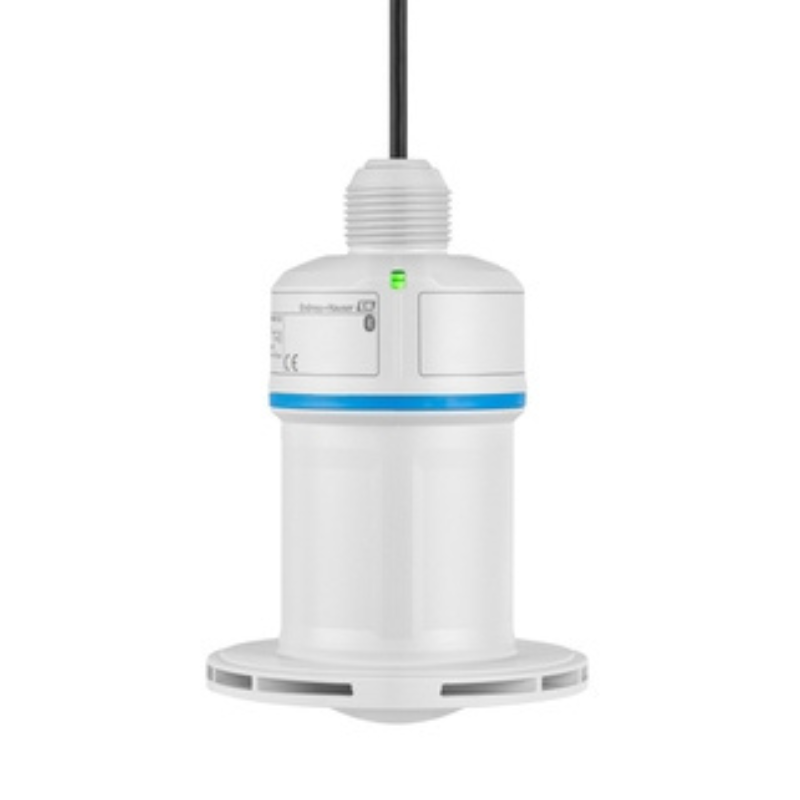

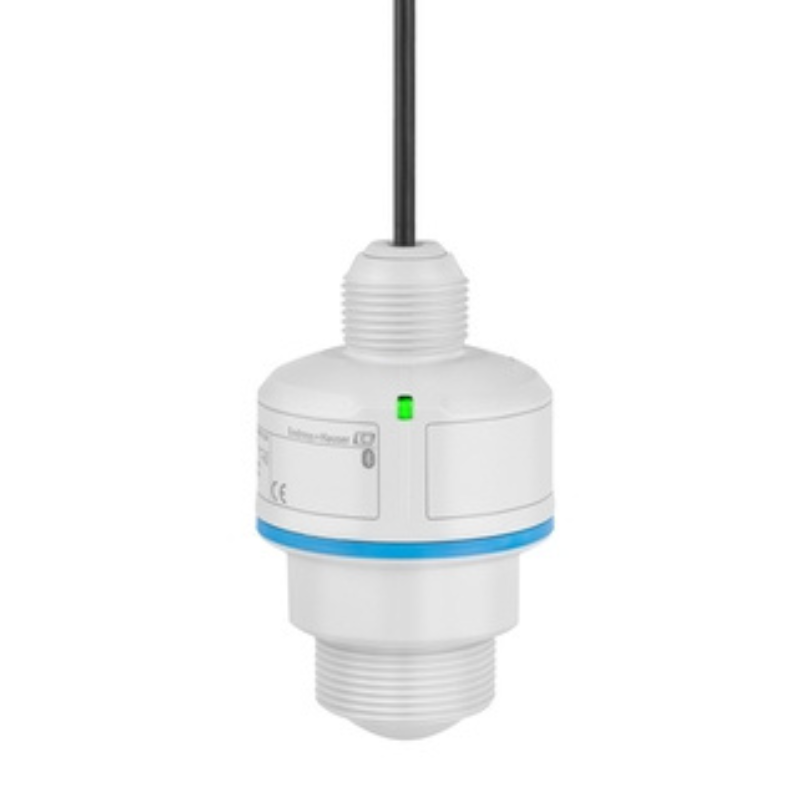

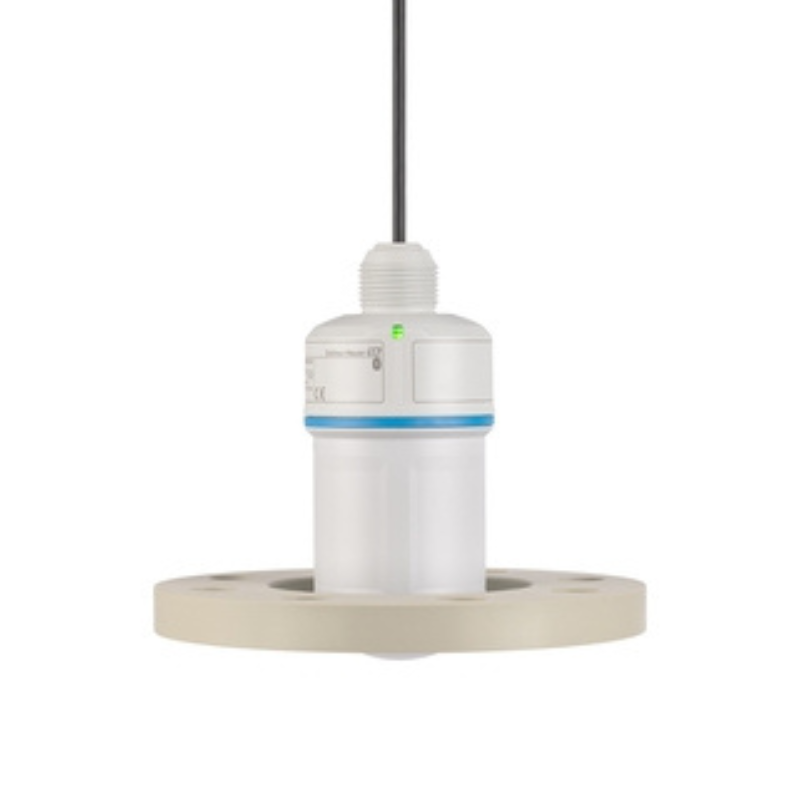

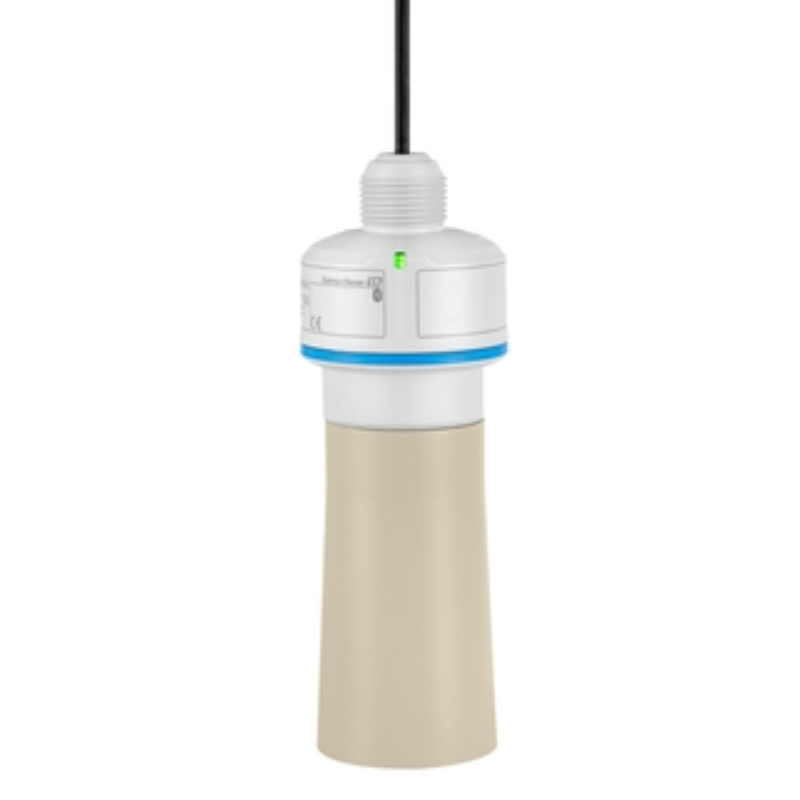

Endress+Hauser Micropilot FMR20B – radar sensor for basic applications
$850.00
The Micropilot FMR20B offers continuous non-contact level measurement with 80 GHz technology. Guiding wizards enable easy handling for installation, commissioning and operation. Efficiency through reduced downtime can be realized with on-demand process verification and device diagnostics, thanks to Heartbeat Technology. The compact design of the device also allows use in narrow installation conditions.
Micropilot FMR20B – radar sensor for basic applications
Simple and efficient level measurement in liquids and solids
Specs at a glance
-
Accuracy
+/- 2mm (0.08″)
-
Process temperature
-40…+80°C
(-40…+176°F) -
Process pressure / max. overpressure limit
-1…3 bar
(-14,5…43 psi) -
Max. measurement distance
40 mm/ 1-1/2″: 20m (65.6 ft)
80 mm/ 3″: 30m (98.4 ft) -
Main wetted parts
PVDF, PBT/PC
Field of application
The Micropilot FMR20B offers continuous non-contact level measurement with 80 GHz technology. Guiding wizards enable easy handling for installation, commissioning and operation. Efficiency through reduced downtime can be realized with on-demand process verification and device diagnostics, thanks to Heartbeat Technology. The compact design of the device also allows use in narrow installation conditions.
The Micropilot FMR20B is a free space radar device with a measuring range of up to 30m (98ft) for liquid and solid applications in the Water & Wastewater, Mining, Minerals & Metals and Food & Beverage industries, as well as for utility applications across all industries:
-
Open baisins
-
River monitoring
-
Sewer management
-
Pump station / lift station
-
Open channel flow
-
IBC and storage tanks
-
Silos
-
Stockpiles
-
Pneumatic conveying
Benefits
-
Fast commissioning and operation thanks to guided setup sequences (wizards)
-
Bluetooth connectivity enables easy, reliable and encrypted wireless remote access
-
Device identification during Bluetooth connection thanks to “It’s me-function” (LED flashing) and status indication via LED
-
Simple device selection thanks to clear segmentation and easy configuration
-
Heartbeat Technology allows on-demand verification and diagnostics guided through the wizard without process interruption
| Measuring principle | Level radar |
|---|---|
| Characteristic / Application | Water & Wastewater |
| Specialities | Bluetooth® commissioning |
| Supply / Communication | 2-wire (HART, 4…20 mA) |
| Frequency | W-Band (~80 Ghz) |
| Accuracy | +/- 2mm (0.08") |
| Ambient temperature | -40…+80°C |
| Process temperature | -40…+80°C |
| Process pressure / max. overpressure limit | -1…3 bar |
| Main wetted parts | PVDF, PBT/PC |
| Process connection | Thread: |
| Max. measurement distance | 30m (98.4 ft) |
| Communication | 4…20 mA HART |
| Certificates / Approvals | ATEX, C/US, EAC Ex, JPN Ex, KC Ex, |
| Safety approvals | Overfill protection WHG |
| Hygienic approvals | EU Food Contact Material (EC) 1935/2004 |
| Marine approval | ABS, LR, BV, DNV |
| Drinking water approvals | NSF/ANSI 61 |
| Options | Remote operation via SmartBlue App using |
| Application limits | Process temp. <-40°C (-40°F) or > 80°C (176°F) -> FMR62B |
