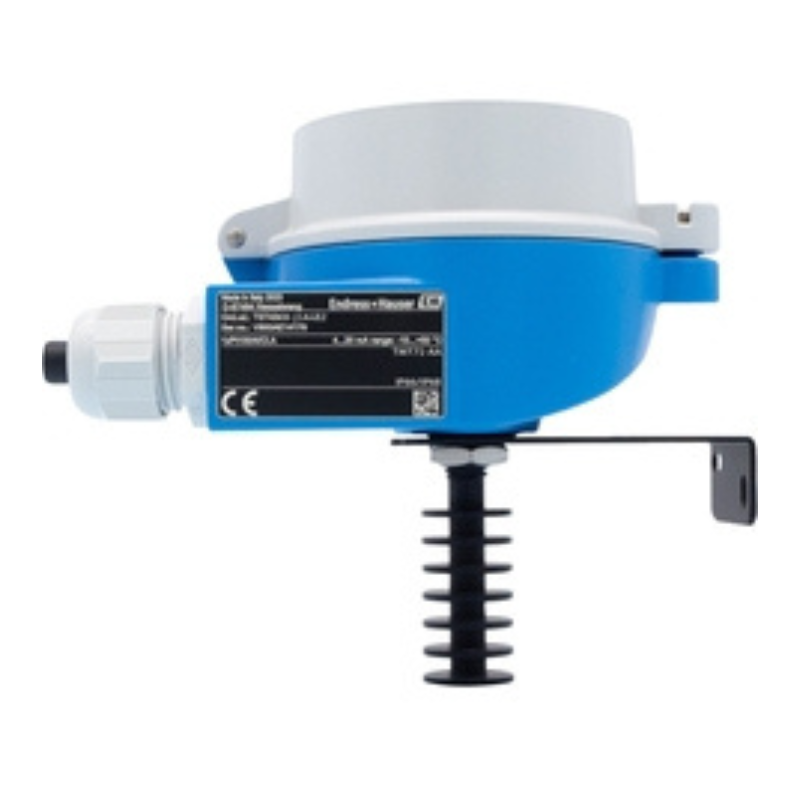

Endress+Hauser iTHERM ModuLine TST434B Industrial modular thermometer
$300.00
The iTHERM ModuLine TST434B RTD thermometer is specially designed for monitoring the room temperature in almost all industries.
It is available as a complete unit including Endress+Hauser temperature transmitters for enhanced measurement accuracy and reliability compared to directly wired sensors. With a variety of common and advanced outputs and communication protocols, they offer easy customizing.
iTHERM ModuLine TST434B Industrial modular thermometer
RTD thermometer for outdoor and indoor ambient temperature measurement
Specs at a glance
-
Accuracy
class A acc. to IEC 60751
class B acc. to IEC 60751 -
Max. process pressure (static)
at 20 °C: 1 bar (15 psi)
-
Operating temperature range
PT 100:
-50 °C …150 °C
(-58 °F …302 °F)
Field of application
The iTHERM ModuLine TST434B RTD thermometer is specially designed for monitoring the room temperature in almost all industries.
It is available as a complete unit including Endress+Hauser temperature transmitters for enhanced measurement accuracy and reliability compared to directly wired sensors. With a variety of common and advanced outputs and communication protocols, they offer easy customizing.
-

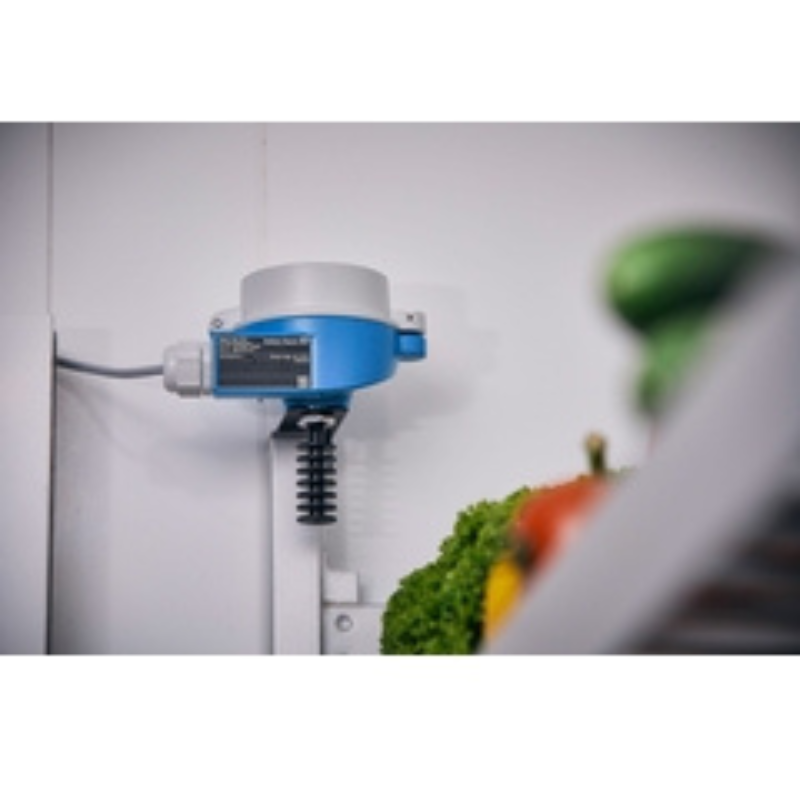

Outdoor or indoor ambient temperature measurement
-
Maximum measuring range: –50 to +150 °C (–58 to +302 °F)
-
Degree of protection: IP66/68 (NEMA Type 4x encl.)
Benefits
-
Robust terminal heads according to DIN EN 50446 or stable plastic housings offer optimal protection from extreme ambient conditions
-
Reliable, long term stable and accurate indoor or outdoor ambient temperature measurement
-
Simple and fast wall mounting
-
Optional head transmitters: Analog 4 to 20 mA, HART®, PROFIBUS® PA, FOUNDATION Fieldbus™, IO-Link, PROFINET® over Ethernet-APL/SPE
| Measuring principle | Resistance Temperature Detector |
|---|---|
| Characteristic / Application | probe for ambient temperature measurement |
| Thermowell / protection tube | without (not intended to use with thermowell) |
| Outer diameter protection tube / Insert | 20,0 mm (0,79'') |
| Material protection tube/ thermowell | Aluminium |
| Operating temperature range | PT 100: |
| Max. process pressure (static) | at 20 °C: 1 bar (15 psi) |
| Accuracy | class A acc. to IEC 60751 |
| Integration head transmitter | yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) |
| Certification | SIL (transmitter only) |
