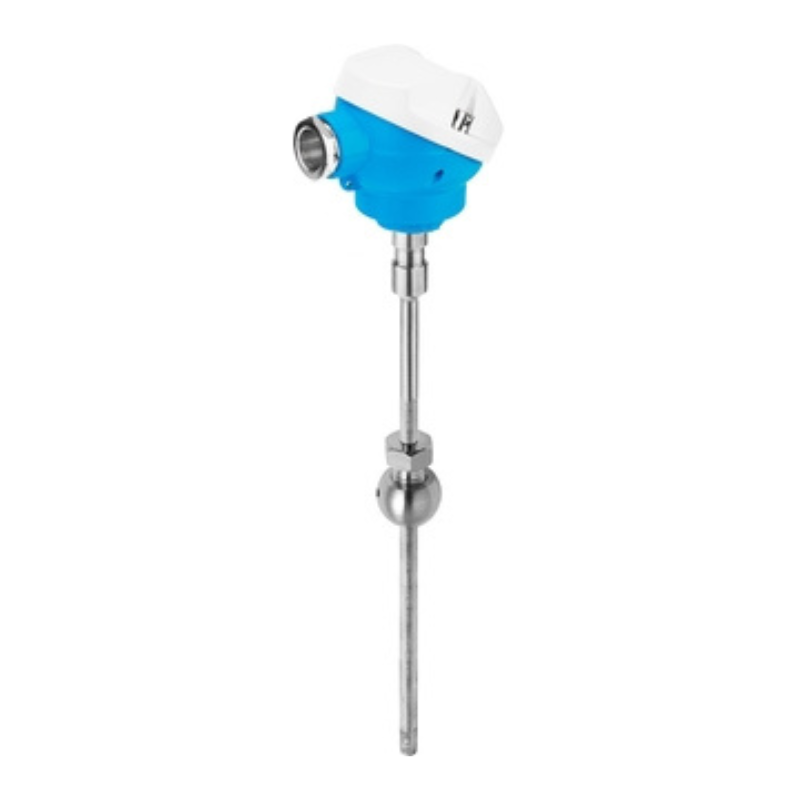

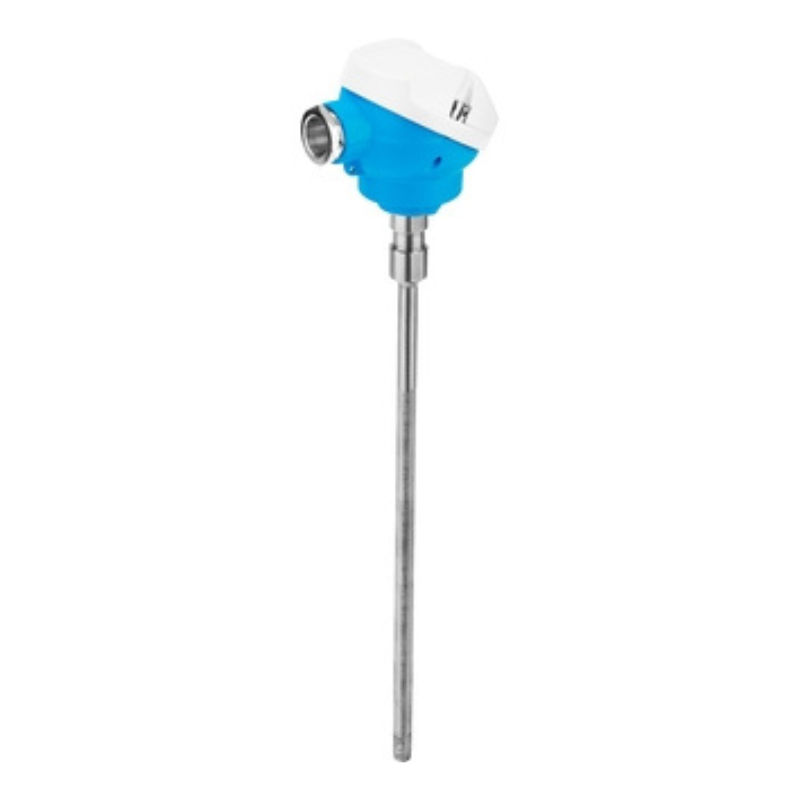

Endress+Hauser iTHERM ModuLine TM111 Industrial modular thermometer

iTHERM ModuLine TM111 Industrial modular thermometer

Metric RTD/TC direct contact thermometer for a wide range of industrial applications

Specs at a glance

• Accuracy

  Class AA acc. to IEC 60751
  Class A acc. to IEC 60751
  Class B acc. to IEC 60751
  Class special or standard acc. to ASTM E230
  Class 1 or 2 acc. to IEC 60584-2

• Response time

  t90 starting at < 1,5 s iTHERM QuickSens
  depending on configuration

• Max. process pressure (static)

  depending on the configuration

• Operating temperature range

  PT100 TF iTHERM StrongSens:
  -50 °C …500 °C
  (-58 °F …932 °F)
  PT100 TF iTHERM QuickSens:
  -50 °C …200 °C
  (-58 °F …392 °F)
  PT100 WW:
  -200 °C …600 °C
  (-328 °F …1.112 °F)
  PT100 TF:
  -50 °C …400 °C
  (-58 °F …752 °F)
  Typ K:
  max. 1.100 °C
  (max. 2.012 °F)
  Typ J:
  max. 800 °C
  (max. 1.472 °F)
  Typ N:
  max. 1.100 °C
  (max. 2.012 °F)

• Max. immersion length on request

  up to 4.500,0 mm (177”)

Field of application

Our explosion-proof temperature sensor iTHERM ModuLine TM111 is ideal for a wide range of industrial applications and hazardous areas. Easy-to-use metric version with outstanding RTD or TC sensor technology. An optional head transmitter, with all common communication protocols – Bluetooth® technology for high measurement accuracy and reliability. It features vibration-resistant and fast-response sensor technology (iTHERM StrongSensand QuickSens).

Benefits

• User-friendly and reliable from product selection to maintenance

• iTHERM inserts: globally unique, automated production. Full traceability and consistently high product quality for reliable measured values

• iTHERM QuickSens: fastest response times 1.5 s for optimum process control

• iTHERM StrongSens: unsurpassed vibration resistance (> 60g) for ultimate plant safety

• iTHERM TA30x: variety of terminal heads for easier handling and lower installation and maintenance costs

• International certification: explosion protection according to ATEX, IECEx, CSA C US and NEPSI
