Endress+Hauser iTEMP TMT72 temperature transmitter
$280.00
Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals using HART® communication. Diagnostics information according to NAMUR NE 107. Seamless integration into all major control and asset management systems. Integrated Bluetooth® interface for remote operation via Endress+Hauser SmartBlue App.
iTEMP TMT72 temperature transmitter
HART® temperature transmitter as head, field or DIN rail device with one universal sensor input suitable for use in hazardous areas
Specs at a glance
-
Accuracy
(Pt100, -50…200 °C) <= 0,1 K
(Pt100, -58…392 °F) <= 0,18 °F
Field of application
Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals using HART® communication. Diagnostics information according to NAMUR NE 107. Seamless integration into all major control and asset management systems. Integrated Bluetooth® interface for remote operation via Endress+Hauser SmartBlue App.
-
Bluetooth®-enabled temperature transmitter with HART® communication for the conversion of various input signals into a scalable, analog 4 to 20 mA output signal
-
Improved process efficiency and increased plant uptime
-
Universal input for RTD, TC, resistance transmitters (Ω), voltage transmitters (mV)
-

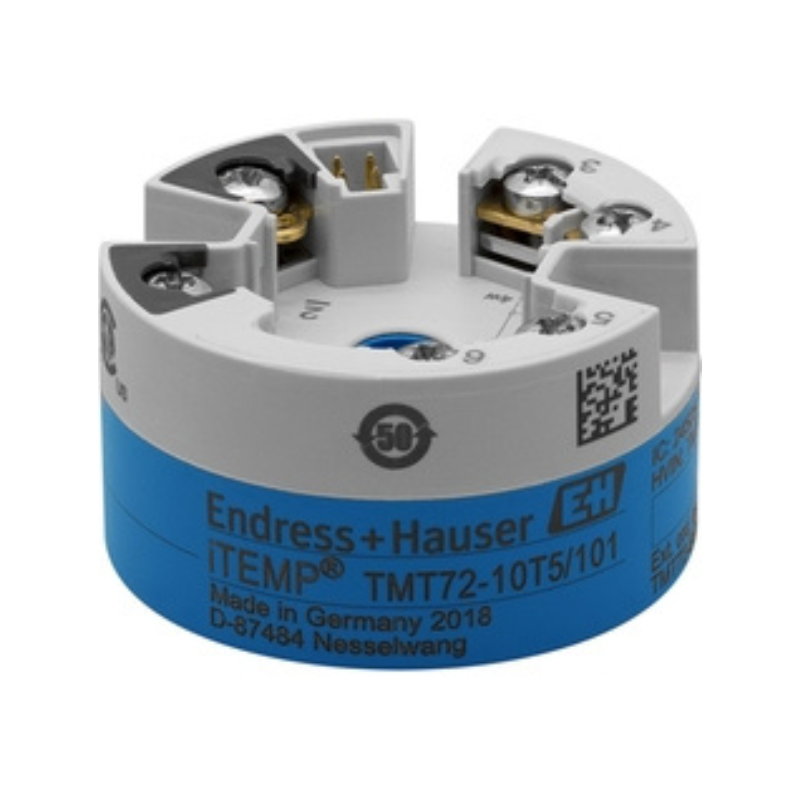

Installation in terminal head form B (flat face) as per DIN EN 50446
-

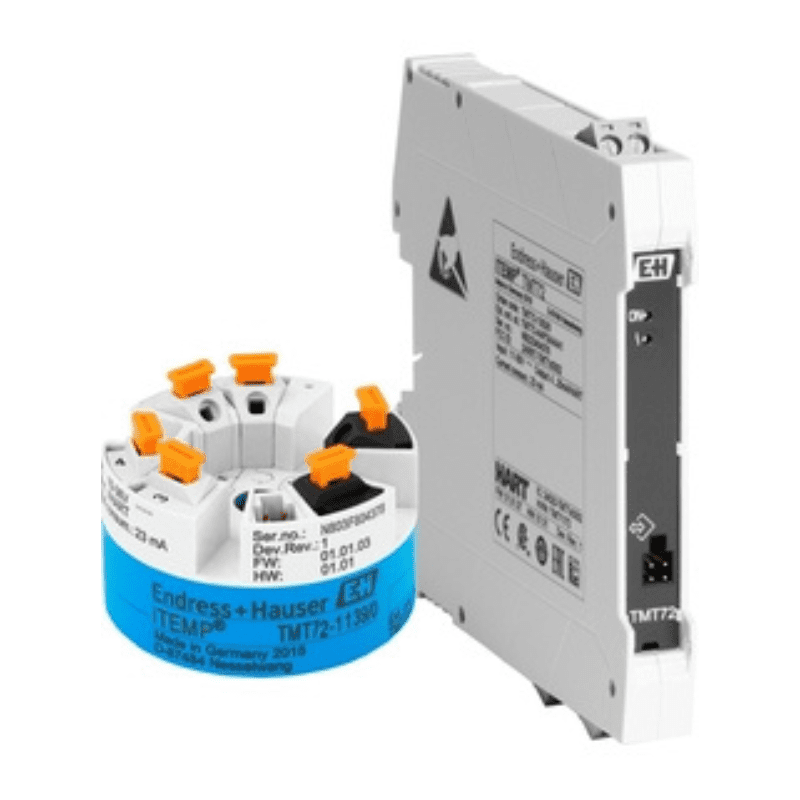

Installation in cabinets with DIN rail housing
-

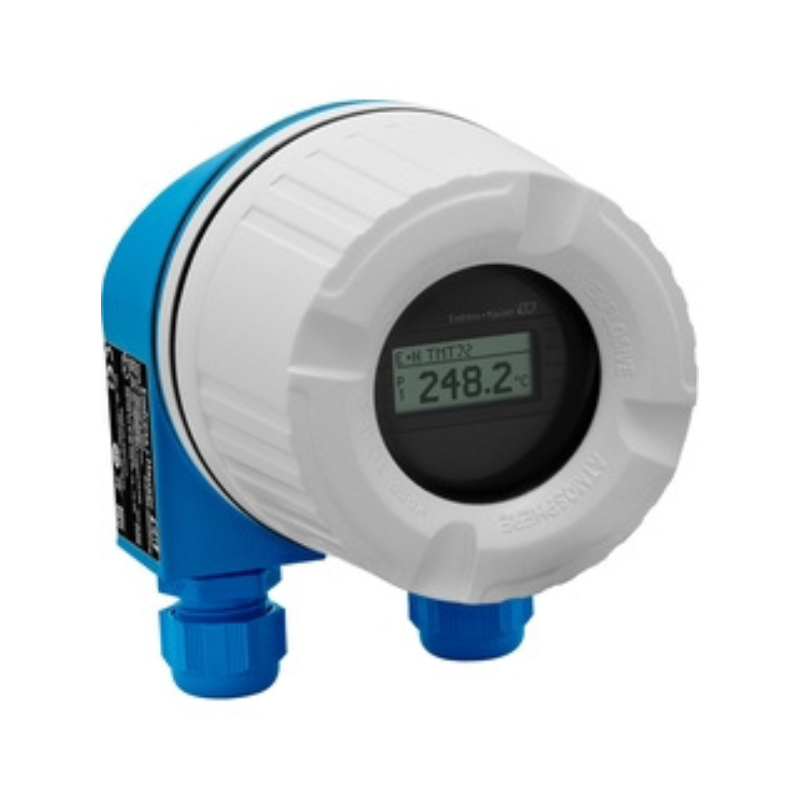

Optional installation in field housing even for use in Ex d applications
Benefits
-
Safe operation in hazardous areas thanks to international approvals
-
Reliable operation thanks to sensor and device monitoring
-
Integrated Bluetooth® interface for the wireless display of measured values and configuration via E+H SmartBlue (app), optional
-
Diagnostics information according to NAMUR NE 107
-

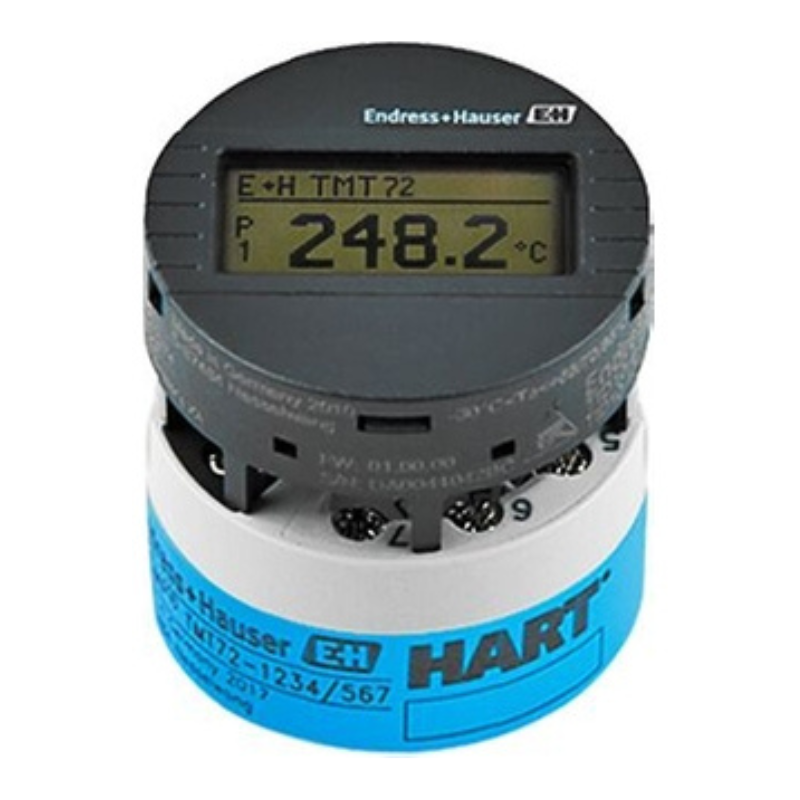

Available with plug-on display TID10
-
Optimization of the measurement accuracy by sensor-transmitter matching.
| Measuring principle | Head transmitter |
|---|---|
| Input | 1 x RTD, TC, Ohm, mV |
| Output | 1 x analog 4…20 mA / HART |
| Auxiliary power supply | 10…36 V DC (Head transmitter) |
| Communication | HART-protocol |
| Installation | Terminal head form B / DIN rail / field mount housing |
| Accuracy | (Pt100, -50…200 °C) <= 0,1 K |
| Galvanic isolation | yes |
| Certification | ATEX Ex ia, Ex ic, Ex tc, Ex nA, Ex db, Ex tb |
