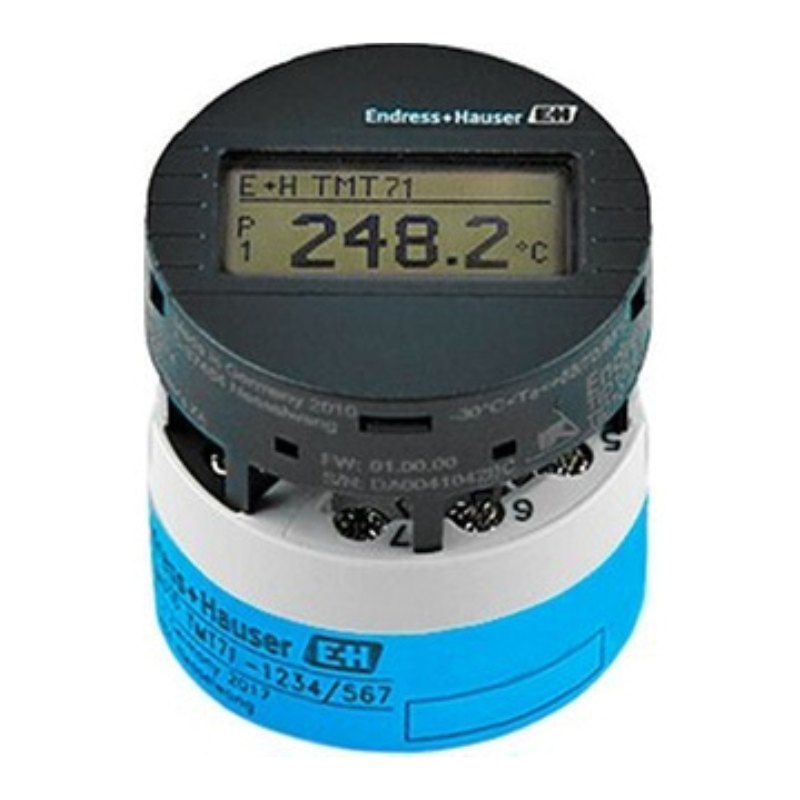

Endress+Hauser iTEMP TMT71 temperature transmitter
$200.00
Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals. The standardized 4 to 20 mA output signal is used for process measurement. Swift and easy commissioning, operation and maintenance via PC software or with integrated Bluetooth® technology and Endress+Hauser SmartBlue App.
iTEMP TMT71 temperature transmitter

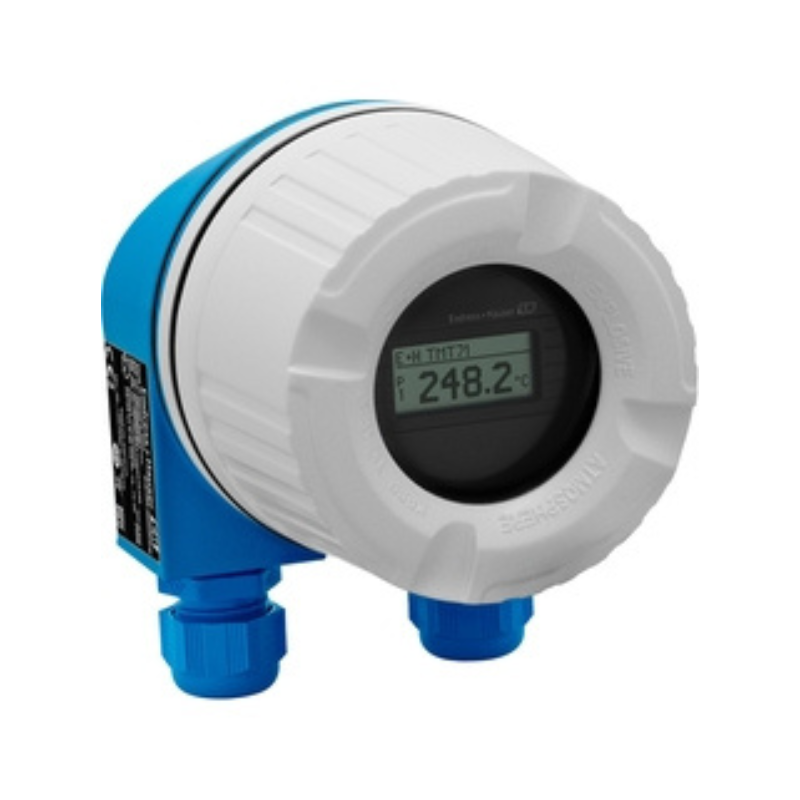

4-20 mA temperature transmitter as head, field or DIN rail device with one universal sensor input suitable for use in hazardous areas
Specs at a glance
-
Accuracy
(Pt100, -50…200 °C) <= 0,1 K
(Pt100, -58…392 °F) <= 0,18 °F
Field of application
Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals. The standardized 4 to 20 mA output signal is used for process measurement. Swift and easy commissioning, operation and maintenance via PC software or with integrated Bluetooth® technology and Endress+Hauser SmartBlue App.
-
Bluetooth®-enabled or PC programmable temperature transmitter for the conversion of various input signals into a scalable, analog 4 to 20 mA output signal
-
Improved process efficiency and increased plant uptime
-
Universal input for resistance thermometers (RTD), thermocouples (TC), resistance transmitters (Ω) and voltage transmitters (mV)
-
Installation in terminal head form B as per DIN EN 50446
-
Installation in cabinets with DIN rail housing
-
Optional installation in field housing for Ex d applications
Benefits
-
Safe operation in hazardous areas thanks to international approvals
-
Reliable operation thanks to sensor and device monitoring
-
Integrated Bluetooth® interface for the wireless display of measured values and configuration via Endress+Hauser SmartBlue App, optional
-
User-friendly guided user interface concept also on-site via Bluetooth®
-
Available with plug-on display TID10
-
Diagnostics information according to NAMUR NE 107
| Measuring principle | Head transmitter |
|---|---|
| Input | 1 x RTD, TC, Ohm, mV |
| Output | 1 x analog 4…20 mA |
| Auxiliary power supply | 10…36 V DC (Head transmitter) |
| Communication | pc-programmable |
| Installation | Terminal head form B / DIN rail / field mount housing |
| Accuracy | (Pt100, -50…200 °C) <= 0,1 K |
| Galvanic isolation | yes |
| Certification | ATEX Ex ia, Ex ic, Ex tc, Ex nA, Ex db, Ex tb |
