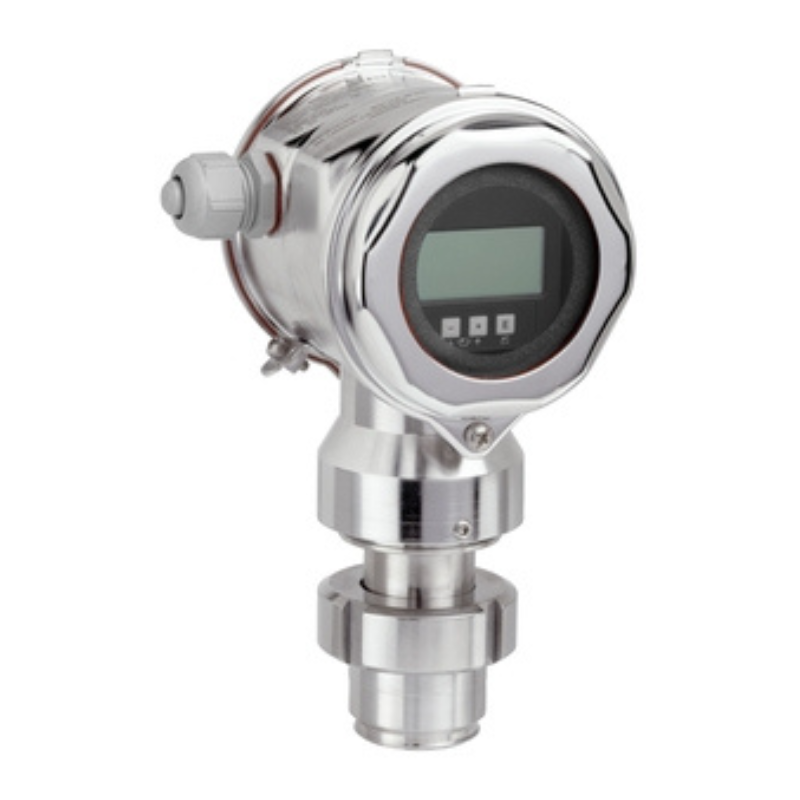

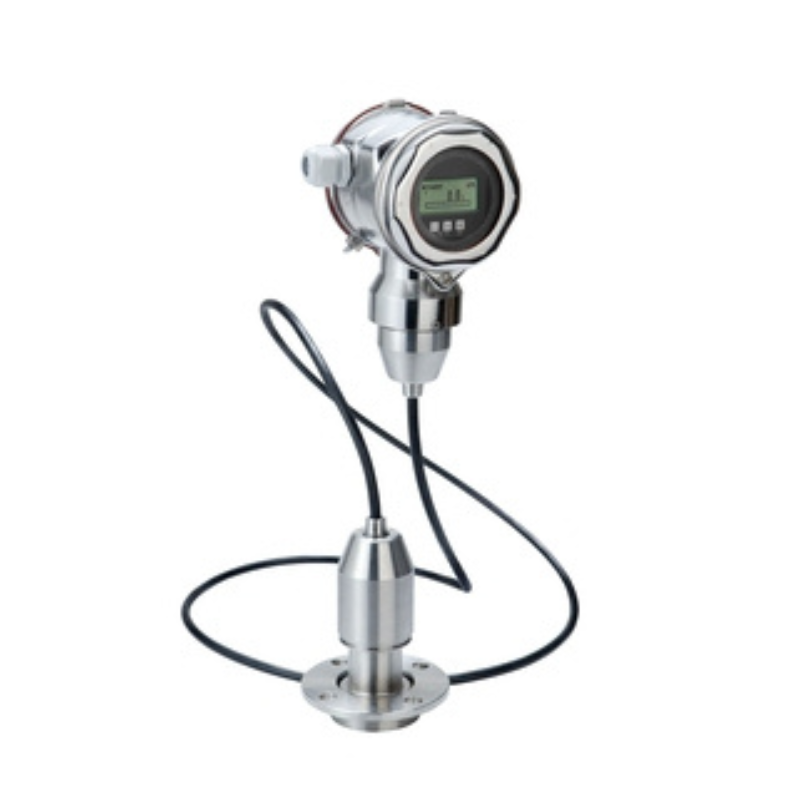

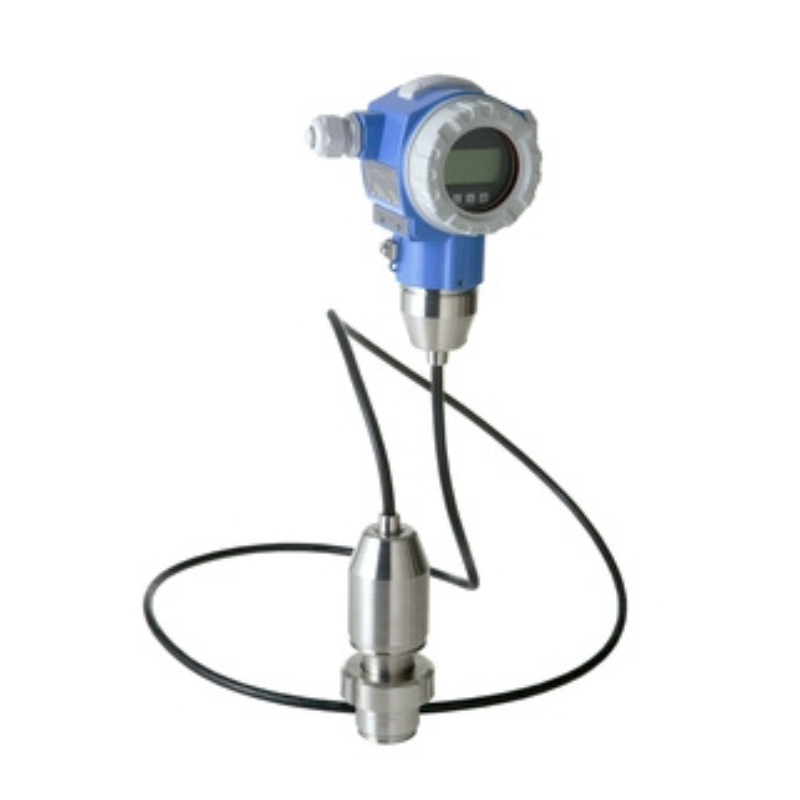

Endress+Hauser Hydrostatic Level measurement Deltapilot FMB70

Hydrostatic Level measurement Deltapilot FMB70

Highest performance pressure sensor with the Contite cell for hydrostatic level measurement

Specs at a glance

• Accuracy

  Standard 0.1%
  Optional 0.075%

• Process temperature

  -10°C…+100°C
  (+14°F…+212°F)

• Pressure measuring range

  100 mbar…10 bar
  (1.5 psi…150 psi)

• Process pressure / max. overpressure limit

  40 bar (600 psi)

• Main wetted parts

  Alloy C
  316L

• Max. measurement distance

  100 m (328 ft) H2O

• Material process membrane

  316L, AlloyC,
  Gold-Rhodium

• Measuring cell

  100 mbar…10 bar
  (1.5 psi…150 psi)

Field of application

The Deltapilot FMB70 with the condensate resistant Contite measuring cell and two-chamber housing is typically used in the process and hygienic applications. It is made for level measurement in liquid and paste-like media in open or closed containers and unaffected by possible foam formation. The integrated HistoROM/M-DAT data module makes management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety systems.

Benefits

• Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.1%, optionally ±0.075% and minimum temperature effects thanks to active temperature compensation

• Best batch-to-batch repeatability and long-term stability

• Modular concept for easy replacement of display or electronics

• HistoROM/M-DAT data backup for instrument settings and measured values

• Function-monitored from the measuring cell to the electronics

• Seamless and independent system integration (HART/PA/FF)

• International usage thanks to a wide range of approvals
