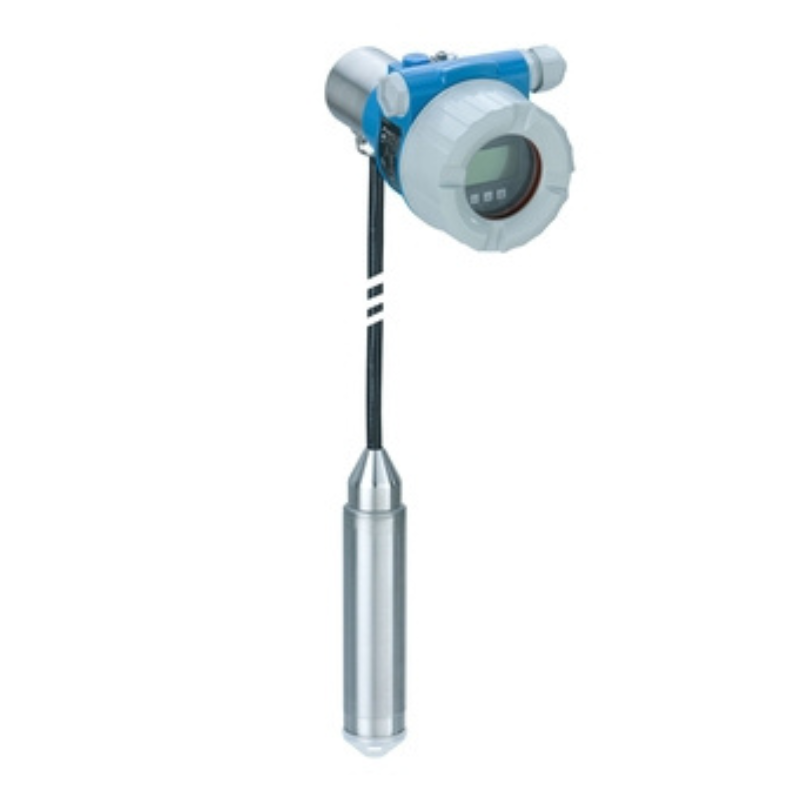

Endress+Hauser Hydrostatic Level measurement Deltapilot FMB53
$1,150.00
The Deltapilot FMB53 is a cable version with mounting clamp. This device with the Contite measuring cell is typically used in the environmental industries. It is made for level measurement in liquid and paste-like media in open or closed containers and unaffected by possible foam formation. For use in SIL2 safety systems.
Hydrostatic Level measurement Deltapilot FMB53
Pressure sensor with Contite measuring cell for hydrostatic level measurement
Specs at a glance
-
Accuracy
Standard 0.2%
Optional 0.1% -
Process temperature
PE cable: -10°C…70°C / 14°F…158°F
FEP cable: -10°C…80°C / 14°F…176°F -
Pressure measuring range
100mbar…10bar
(1.5psi…150psi) -
Process pressure / max. overpressure limit
40 bar (600 psi)
-
Main wetted parts
Alloy C
316L
Cable (PE/FEP)
optional coating AuPt
optional coating AuRh -
Max. measurement distance
100 m (328 ft) H2O
-
Material process membrane
316L, AlloyC,
Gold-Rhodium
PE, FEP -
Measuring cell
100 mbar…10 bar
(1.5 psi…150 psi)
Field of application
The Deltapilot FMB53 is a cable version with mounting clamp. This device with the Contite measuring cell is typically used in the environmental industries. It is made for level measurement in liquid and paste-like media in open or closed containers and unaffected by possible foam formation. For use in SIL2 safety systems.
For level measurement.
-
Process connection: Suspension clamp
-
Temperature: With PE cable: -10 to +70°C (+14 to +158°F),
with FEP cable: -10 to +80°C (+14 to +176°F)
-
Measuring range: 0.1 to 10bar / 100m H2O (1.5 to 150psi / 300ft H2O)
-
Accuracy: ±0.2%, ±0.1% (option)
-
International explosion protection certificates, overfill prevention WHG, SIL, drinking water approval
Benefits
-
Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.2%, optionally ±0.1% and minimum temperature effects
-
Modular concept for easy replacement of display or electronics
-
Seamless and independent system integration (HART/PA/FF)
-
Easy and safe menu-guided operation: On-site via display module, via 4 to 20mA with HART, via PROFIBUS PA, via FOUNDATION Fieldbus
-
International usage thanks to a wide range of approvals
| Measuring principle | Hydrostatic pressure |
|---|---|
| Characteristic | Pressure transmitter for hydrostatic level measurement with flush mounted metallic Contite measuring cell: |
| Supply voltage | 4…20 mA HART |
| Reference Accuracy | Standard 0.2% |
| Long term stability | 0.05 % of URL/year |
| Process temperature | PE cable: -10°C…70°C / 14°F…158°F |
| Ambient temperature | -40°C…85°C |
| Measuring cell | 100 mbar…10 bar |
| Smallest calibratable span | 10 mbar (1.45 psi) |
| Vacuum resistance | 0 mbar abs. |
| Max. Turn down | 100:1 |
| Max. overpressure limit | 40 bar (600 psi) |
| Process connection | Mounting clamp |
| Material process membrane | 316L, AlloyC, |
| Material gasket | Viton, EPDM, Kalrez, none |
| Fill fluid | Inert oil, |
| Material housing | 316L, Die-cast aluminum |
| Communication | 4…20 mA HART |
| Certificates / Approvals | ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, UK Ex |
| Safety approvals | SIL |
| Design approvals | EN10204-3.1 |
| Marine approvals | GL/ ABS/ LR/ BV/ DNV |
| Drinking water approvals | KTW/ NSF/ ACS |
| Specialities | Modularity to differential pressure and process pressure devices (replacable display, universal electronics) |
