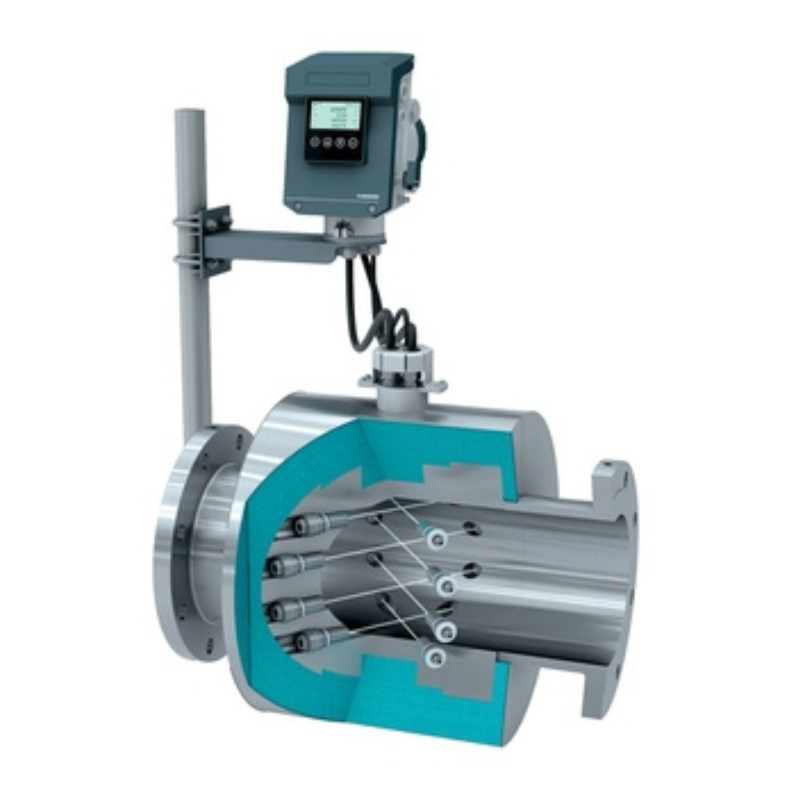

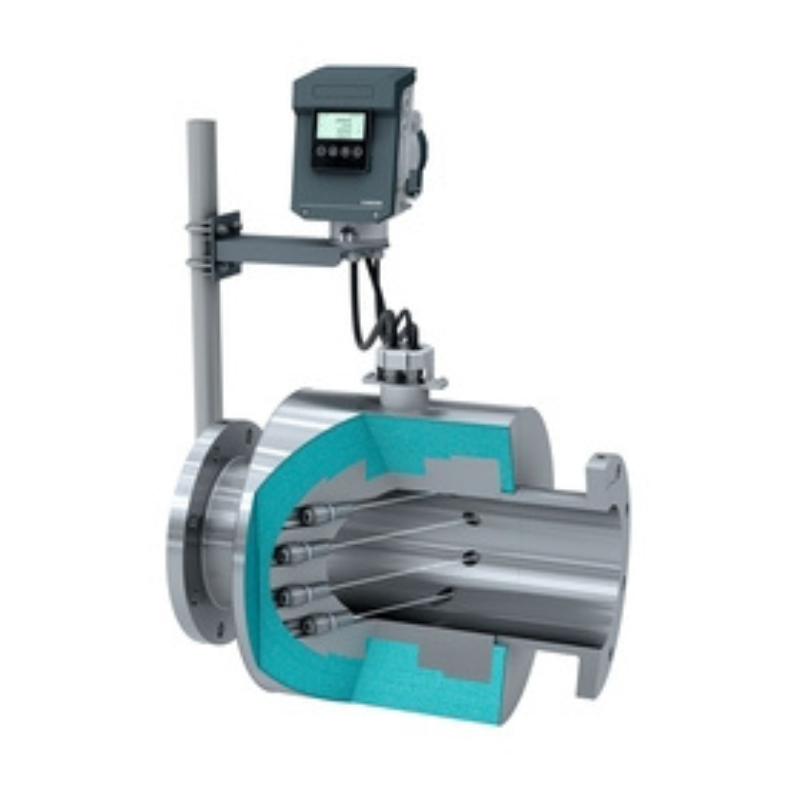

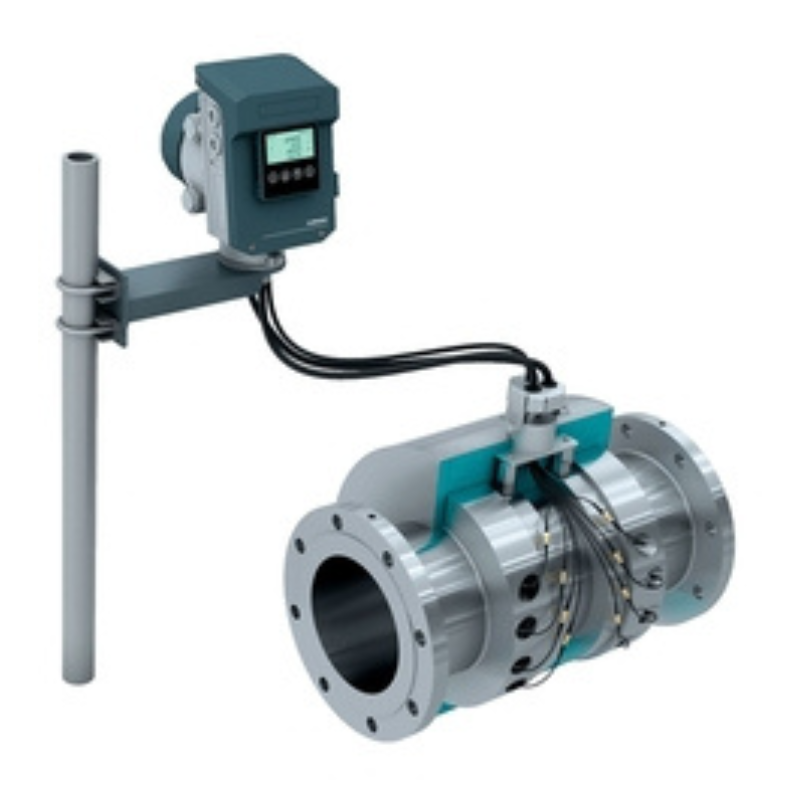

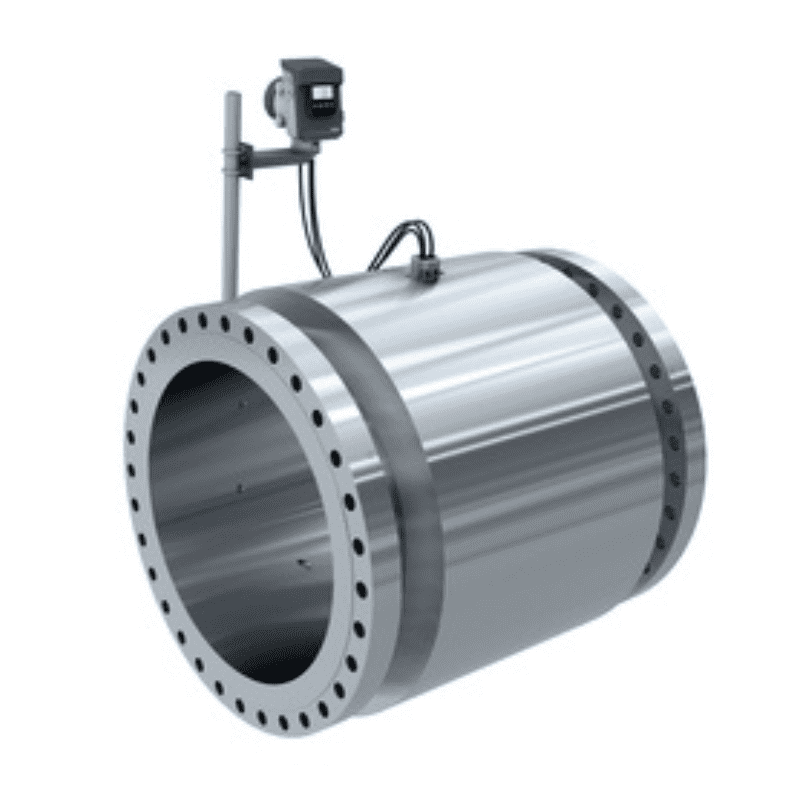

Endress+Hauser FLOWSIC900 IFL900 ultrasonic flowmeter
$5,800.00
FLOWSIC900 is the result of our many years of experience in natural gas measurement: a flowmeter specially tailored to the requirements of the LNG industry. It offers the required custody transfer accuracy for volume flow measurement and meets highest metrological standards. With FLOWSIC900 and the proven products FLOWSIC600-XT and FLOWSIC100 Flare-XT, we offer high-end measurement solutions from a single source to bring measurement performance and reliability in LNG plants to a new level.
FLOWSIC900 IFL900 ultrasonic flowmeter
Custody transfer ultrasonic LNG meter
Specs at a glance
-
Measured variables
Volume a. c., volumetric flow a. c., Fluid velocity, Speed of sound
-
Measuring Medium
LNG (Liquefied Natural Gas)
-
Nominal pipe size
8 ″ … 36 ″
DN200 … DN900, Schedule 40S/STD acc. ASME B36.19 / B36.10, others on request
Field of application
FLOWSIC900 is the result of our many years of experience in natural gas measurement: a flowmeter specially tailored to the requirements of the LNG industry. It offers the required custody transfer accuracy for volume flow measurement and meets highest metrological standards. With FLOWSIC900 and the proven products FLOWSIC600-XT and FLOWSIC100 Flare-XT, we offer high-end measurement solutions from a single source to bring measurement performance and reliability in LNG plants to a new level.
-
Custody transfer measurement of LNG
-
On- and offshore applications
-
Liquefaction, transport and storage of LNG
Device properties:
-
Intrinsically safe and reliable ultrasonic transducers
-
Conform to OIML R117 Cl. 0.3 and API MPMS Ch. 5.8
-
Real time measurement and diagnostics
-
Full bore design without pressure drop or need for flow conditioner
-
Factory thermal pre-insulation
-
Remote Signal Processing Unit
Benefits
-
Low measurement uncertainty directly at custody transfer point reducing financial risks during LNG-transaction
-
Increased transparency during LNG transaction by dynamic & real-time measurement &
diagnostics -
Operational expenditure savings by reduced boil-off gas losses and efficient LNG transfer due to minimized pressure drop
-
Capital expenditure savings by simpliefied meter integration and installation due to compact design and factory pre-insulation
-
Easy and fast access during commissioning and regular checks with remote SPU
| Measuring principle | Ultrasonic transit time difference measurement |
|---|---|
| Measured variables | Volume a. c., volumetric flow a. c., Fluid velocity, Speed of sound |
| Measuring Medium | LNG (Liquefied Natural Gas) |
| Repeatability | ≤ ± 0.05 % of the measured value |
| Accuracy | Typical error limits Qmin … Qmax |
| Operating pressure range | 0 bar (g) … 19 bar (g) / 0 psi(g) … 275 psi(g) |
| Nominal pipe size | 8 ″ … 36 ″ |
| Metrological approvals and certificates | Metrological: Explosion protection: Pressure rating: Other: API MPMS Ch. 5.8 For details see operating instructions |
| Hazardous area approvals | IECEx NEC/CEC (US/CA) |
| Digital Outputs | 2 Digital output/Frequency output: |
| Digital communication | Modbus RS-485 (2x) |
