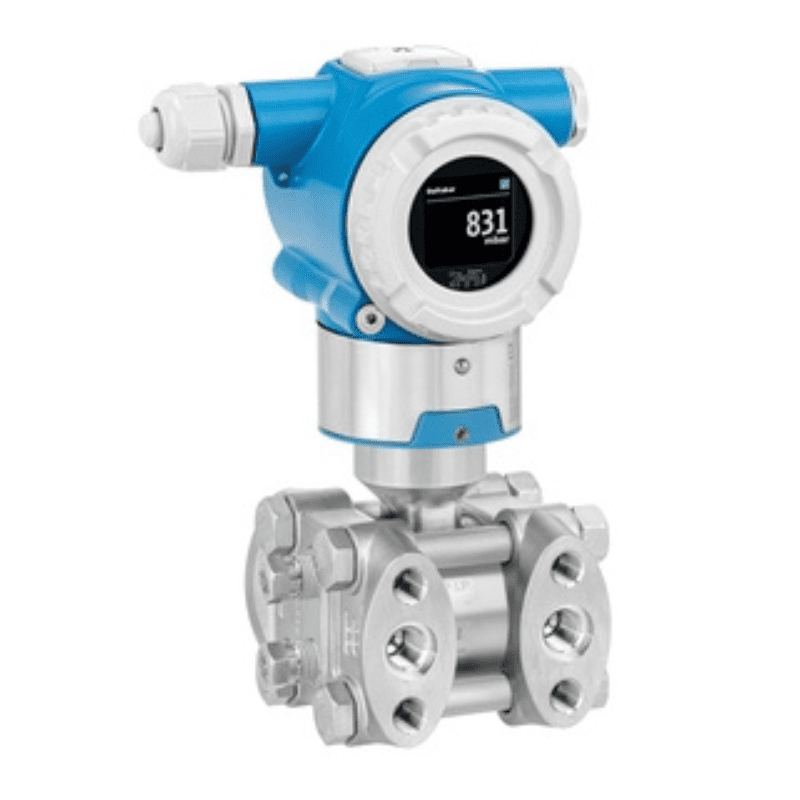

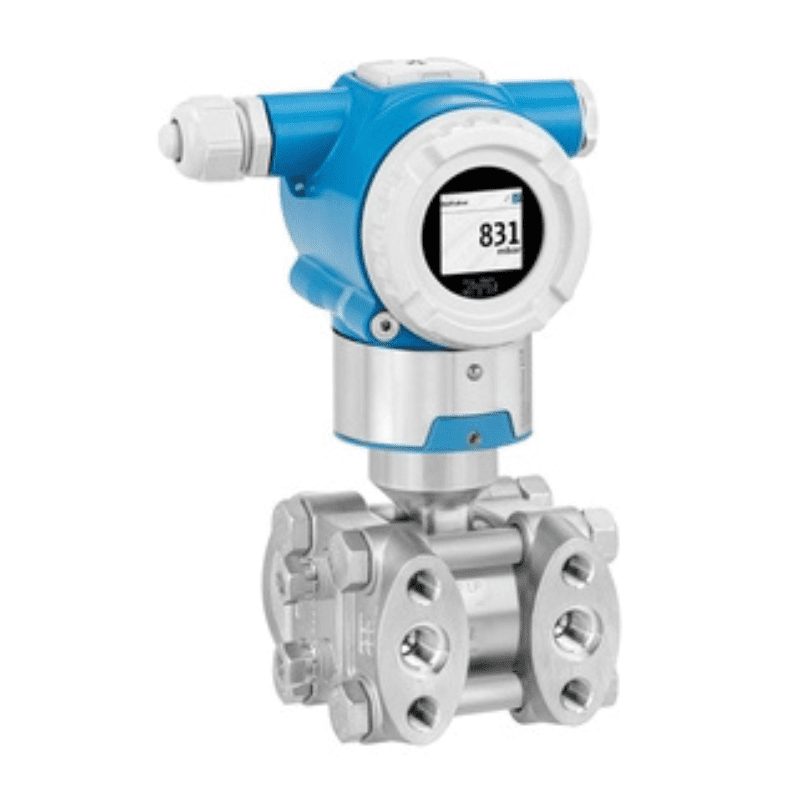

Endress+Hauser Deltabar PMD50 – differential pressure transmitter
$1,200.00
The Deltabar PMD50 is a differential pressure transmitter with metal membrane for measurement of liquids and gases. It is optimized for standard applications and offers intuitive operating functions.
-
Pressure measuring range: up to 40 bar (600 psi)
-
Process temperatures up to 400°C (752°F) with diaphragm seal
-
Accuracy: up to +/-0.055%
Deltabar PMD50 – differential pressure transmitter
Transmitter with metal membrane for measuring differential pressure, level and flow in liquids and gases
Specs at a glance
-
Material process membrane
316L, AlloyC, Gold
-
Measuring cell
100 mbar…40 bar
(1.45 psi…580 psi)
Field of application
The Deltabar PMD50 is a differential pressure transmitter with metal membrane for measurement of liquids and gases. It is optimized for standard applications and offers intuitive operating functions.
-
Pressure measuring range: up to 40 bar (600 psi)
-
Process temperatures up to 400°C (752°F) with diaphragm seal
-
Accuracy: up to +/-0.055%
Benefits
-
Software wizard enables fast and easy commissioning
-
Devices developed in accordance with IEC 61508
-
Flexible write protection via hardware and/or software wizard
-

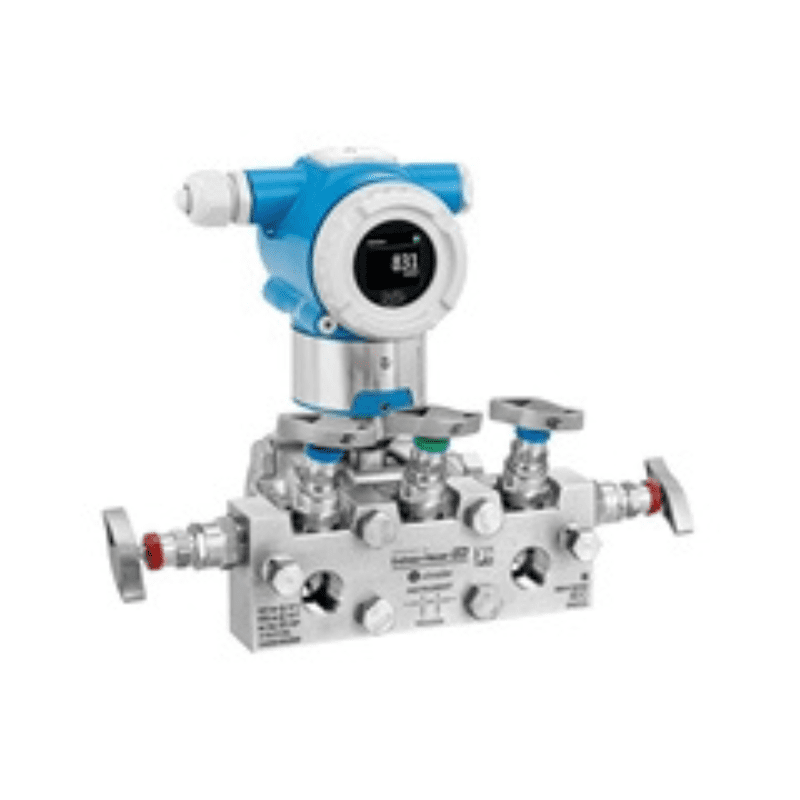

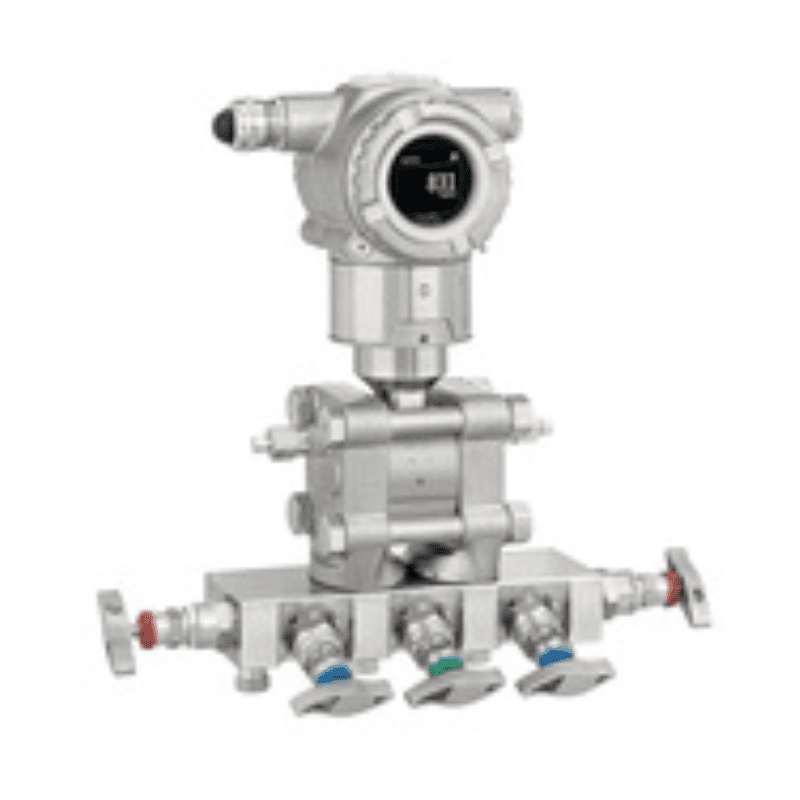

Pre-assembled manifolds (pressure and leakage-tested) for faster installation
| Measuring principle | Differential pressure |
|---|---|
| Characteristic | Transmitter with metal membrane |
| Supply voltage | Ex d, Ex e, non-Ex: |
| Reference Accuracy | Standard: |
| Long term stability | 0.1 % of URL/ year |
| Process temperature | -40°C…+110°C |
| Ambient temperature | -40°C…+85°C |
| Measuring cell | 100 mbar…40 bar |
| Smallest calibratable span | 0.3 mbar (0.0043 psi) |
| Vacuum resistance | 25 mbar (0.0375 psi) |
| Max. Turn down | 20:1 |
| Max. overpressure limit | 375 bar (5625 psi) |
| Process connection | NPT1/4-18 |
| Material process membrane | 316L, AlloyC, Gold |
| Material gasket | PTFE, FKM, EPDM, FFKM |
| Fill fluid | Silicone oil, |
| Material housing | Aluminum, 316L |
| Communication | 4…20 mA HART |
| Certificates / Approvals | ATEX, FM, IECEx, JPN Ex, |
| Safety approvals | SIL |
| Design approvals | EN10204-3.1, |
| Specialities | Zero/Span buttons, |
