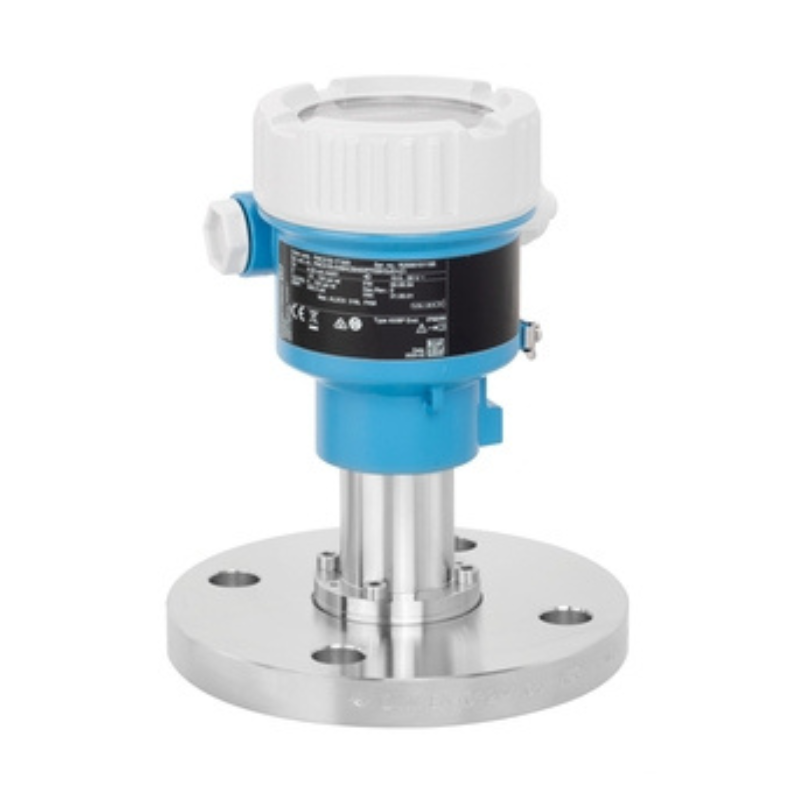

Endress+Hauser Cerabar PMC51B – pressure transmitter
$290.00
This transmitter belongs to the new Cerabar generation. It combines robustness with numerous benefits: e.g. easiest local or remote operation and condition-based maintenance.
The software is designed to simplify the handling. Intuitive wizards guide you through the commissioning and proof testing of the device which minimizes operating errors. The transmitter can be remotely controlled via app on a mobile device and a secure Bluetooth connection.
Cerabar PMC51B – pressure transmitter
Smart transmitter with ceramic membrane for highly accurate measurement of liquids and gases
Specs at a glance
-
Accuracy
Standard:
up to 0.075 %
Platinum:
up to 0.055 % -
Process temperature
-40°C…+100°C
(-40°F…+212°F) -
Pressure measuring range
100 mbar…40 bar
(1.5 psi…600 psi) -
Main wetted parts
Ceraphire ceramic
FKM, EPDM, HNBR,
Perlast, Kalrez -
Material process membrane
Ceramic
-
Measuring cell
100 mbar…40 bar
(1.5 psi…600 psi)
Field of application
This transmitter belongs to the new Cerabar generation. It combines robustness with numerous benefits: e.g. easiest local or remote operation and condition-based maintenance.
The software is designed to simplify the handling. Intuitive wizards guide you through the commissioning and proof testing of the device which minimizes operating errors. The transmitter can be remotely controlled via app on a mobile device and a secure Bluetooth connection.
-
Pressure measuring range: up to 40 bar (600 psi)
-
Fully vacuum resistant up to +100°C (212°F) process temperature
-
Accuracy: up to +/-0.055%
Benefits
-
Wireless control of the device in the process area with the SmartBlue App. Process interruption is not necessary.
-
Reduce systematic failures – error free SIL commissioning and instrument guided proof testing
-
Reduce on site accidents and protect equipment when instruments are in difficult to reach areas
| Measuring principle | Absolute and gauge pressure |
|---|---|
| Characteristic | Pressure transmitter with ceramic process membran for accurate measurement in liquid or gases. |
| Supply voltage | Ex d, Ex e, non-Ex: |
| Reference Accuracy | Standard: |
| Long term stability | 0.10% of URL/ year |
| Process temperature | -40°C…+100°C |
| Ambient temperature | -40°C…+85°C |
| Measuring cell | 100 mbar…40 bar |
| Smallest calibratable span | 5 mbar (0.075 psi) |
| Vacuum resistance | 0 mbar abs. |
| Max. Turn down | 100:1 |
| Max. overpressure limit | 60 bar (900 psi) |
| Process connection | Thread: |
| Material process membrane | Ceramic |
| Material gasket | FKM, EPDM, HNBR, FFKM |
| Fill fluid | none, dry measuring cell |
| Material housing | Aluminium |
| Communication | 4…20 mA, |
| Certificates / Approvals | ATEX, CSA, IECEx, JPN Ex, INMETRO, NEPSI, UK Ex |
| Safety approvals | SIL |
| Design approvals | EN10204-3.1 |
| Drinking water approvals | NSF, KTW |
| Specialities | Bluetooth® Operation and maintenance SmartBlue App, |
