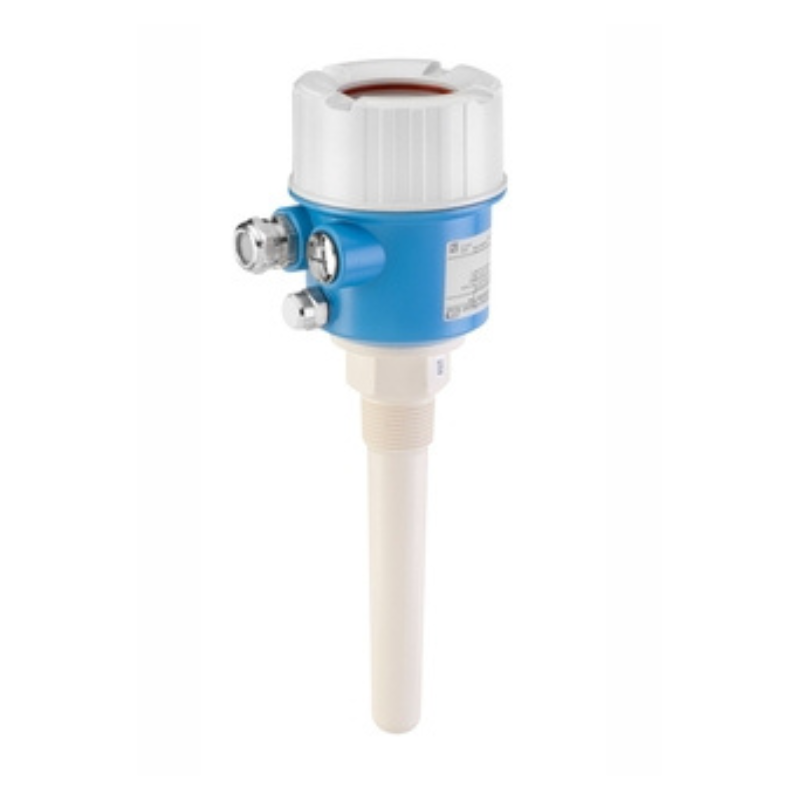

Endress+Hauser Capacitance Point level detection Minicap FTC260
$300.00
Minicap FTC260 is a simple and cost-effective rod probe for point level detection in bulk solids, particularly suited to applications involving aggressive media and heavy build-up. It is designed for point level detection of light bulk solids, e.g. grain products, flour, milk powder, animal feed, cement, chalk or gypsum.
Capacitance Point level detection Minicap FTC260
Designed for light bulk solids
Specs at a glance
-
Process temperature
-40°C …+120°C
(-40°F …+248°F) -
Process pressure / max. overpressure limit
-1 … 25 bar
(-14.5 … 360 psi)
Field of application
Minicap FTC260 is a simple and cost-effective rod probe for point level detection in bulk solids, particularly suited to applications involving aggressive media and heavy build-up. It is designed for point level detection of light bulk solids, e.g. grain products, flour, milk powder, animal feed, cement, chalk or gypsum.
For point level detection of light bulk solids, with a grain size up to max. 30mm and a dielectric constant εr ≥ 1.6.
Typical applications: Grain products, flour, milk powder, animal feed, cement, chalk or gypsum.
-
Process connection: Threads
-
Temperature: -40 to +80°C (-40 to +176°F)
-
Pressure: -1 to +25bar (-14.5 to +360psi)
-
Sensor length: 140mm (5.51″)
-
International explosion protection certificates, overfill prevention WHG
Benefits
-
Simple mounting and commissioning without calibration
-
Mechanical safety, cost-efficiency and long operating life due to no wearing parts
-
High operational safety and reliability due to active build-up compensation
| Measuring principle | Capacitive Solid |
|---|---|
| Characteristic / Application | Compact rod probe with build-up compensation |
| Specialities | FDA-listed material |
| Supply / Communication | 10,8 … 45V DC, DC-PNP 3-wire |
| Ambient temperature | -40°C…+70°C |
| Process temperature | -40°C …+120°C |
| Process pressure / max. overpressure limit | -1 … 25 bar |
| Main wetted parts | PPS = Polyphenylene sulphide |
| Process connection | R1" |
| Sensor length | 140 mm (5.51") |
| Communication | PNP transistor output |
| Certificates / Approvals | ATEX , IEC Ex, FM, CSA, NEPSI, UK Ex |
| Options | Aluminium Housing |
| Application limits | Solids, grain size max. 30 mm (1.2"), |
