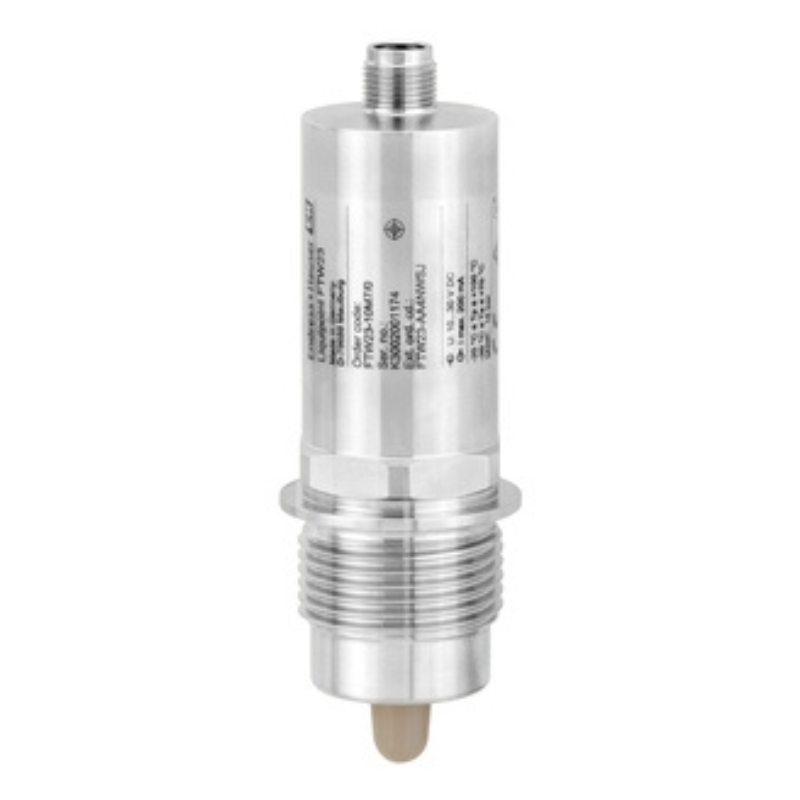

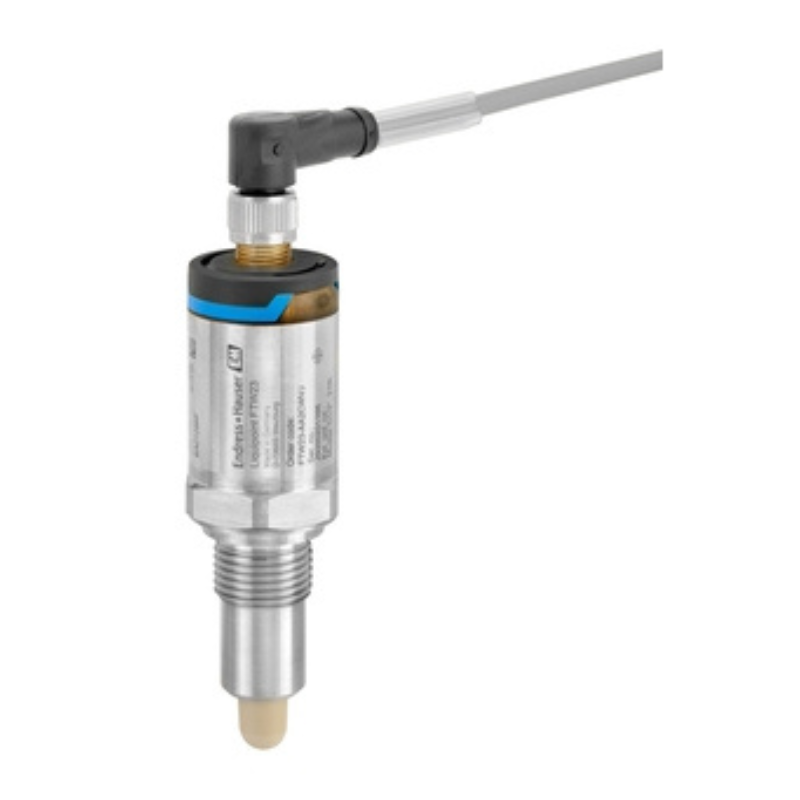

Endress+Hauser Capacitance Point level detection Liquipoint FTW23
$200.00
The Liquipoint FTW23 is developed and built for the food industry and meets all international hygiene requirements. The device also fits perfectly for industrial applications in all industries. It is intended for use in applications in liquid media without build-up. The IO-Link capability allows easy parameter setting.
Capacitance Point level detection Liquipoint FTW23
Cost effective point level switch for water-based liquids
Specs at a glance
-
Process temperature
Standard:
-20 … 100°C
Cleaning:
-20 … 135°C for 1h
-4 … 275F for 1h -
Process pressure / max. overpressure limit
Vacuum … 16 bar
Vacuum ….232 psi
Specs at a glance
-
Process temperature
Standard:
-20 … 100°C
Cleaning:
-20 … 135°C for 1h
-4 … 275F for 1h -
Process pressure / max. overpressure limit
Vacuum … 16 bar
Vacuum ….232 psi
Benefits
-
Easy installation thanks to compact design, even in tight conditions or where access is restricted
-
IO-Link reduces costs and complexity due to easy configuration of the devices via engineering tools
-
CIP and SIP cleanability ensured – up to protection class IP 69
-
Individual adjustment to each medium not necessary
-
LED display for on-site function check
| Measuring principle | Capacitive Liquid |
|---|---|
| Characteristic / Application | Compact point level switch for using in water based liquids |
| Specialities | CIP and SIP suitable |
| Supply / Communication | 10…30 V DC |
| Ambient temperature | -20…70°C |
| Process temperature | Standard: |
| Process pressure / max. overpressure limit | Vacuum … 16 bar |
| Main wetted parts | Sensor: 316L |
| Process connection | Thread G1, G1/2, G3/4, M24 |
| Communication | DC PNP |
| Certificates / Approvals | CSA C/US |
| Design approvals | EN 10204-3.1 |
| Hygienic approvals | 3A, EHEDG |
| Options | Weld-in adapter, |
| Application limits | Conductive foam is recognizes as a liquid |
