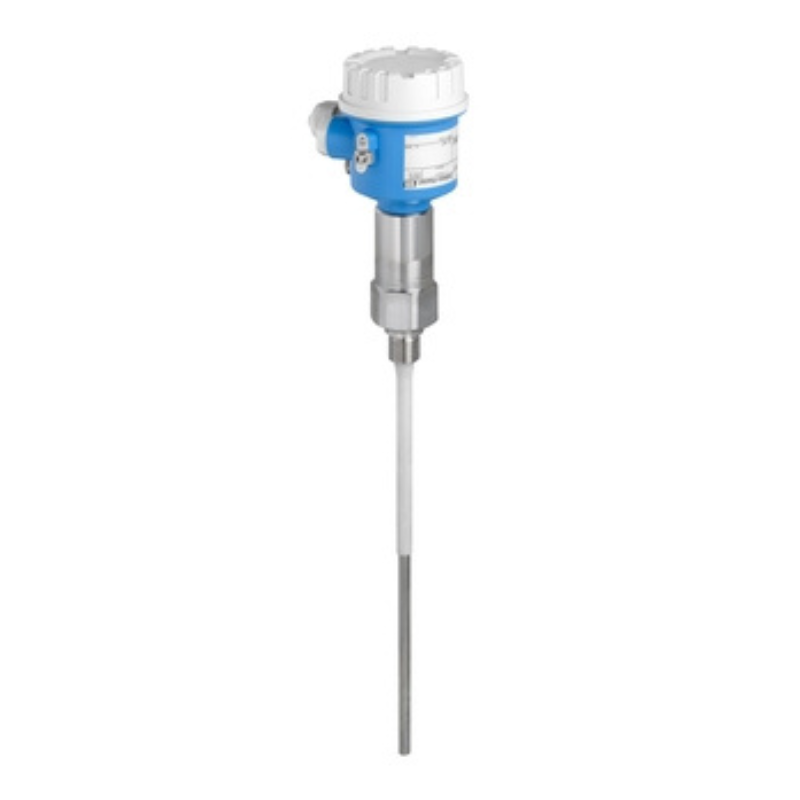

Endress+Hauser Capacitance Point level detection Liquicap FTI51
$1,000.00
Liquicap FTI51 is a rod probe for point level detection of liquids that are highly viscous and tend to form build-up. Also used for detection of interface and foam of conductive liquids. Due to its active build-up compensation FTI51 offers maximum reliability and is suited for a wide range of applications thanks to international certificates. The parts in contact with the process are made of corrosion-resistant and FDA-listed materials – this guarantees a high safety standard.
Capacitance Point level detection Liquicap FTI51
For liquids that are highly viscous and tend to form build-up
Specs at a glance
-
Process temperature
-80 °C … +200 °C
(-112 °F … +392 °F) -
Process pressure / max. overpressure limit
Vacuum … 100 bar
(Vacuum … 1450 psi)
Field of application
Liquicap FTI51 is a rod probe for point level detection of liquids that are highly viscous and tend to form build-up. Also used for detection of interface and foam of conductive liquids. Due to its active build-up compensation FTI51 offers maximum reliability and is suited for a wide range of applications thanks to international certificates. The parts in contact with the process are made of corrosion-resistant and FDA-listed materials – this guarantees a high safety standard.
For liquids that tend to form build-up. Interface detection of different liquids. Two-point control (pump control) with just one process connection. Foam detection of conductive liquids.
-
Process connections: Flanges, threads, special hygienic process connections
-
Temperature: -80 to +200°C (-112 to +392°F)
-
Pressure: Vacuum to +100bar (vacuum to +1,450psi)
-
Sensor length: 6m (20ft)
-
International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approval
Benefits
-
Cost savings thanks to easy and fast commissioning as calibration takes place at the press of a button
-
Reliable and safe measurement due to active build-up compensation
-
Reliable and universal application thanks to wide range of certificates and approvals
-
Short reaction time
-
Material in contact with the process made of corrosion-resistant and FDA-listed materials
-
Two-stage overvoltage protection
-
No need for recalibration after replacing electronics
| Measuring principle | Capacitive Liquid |
|---|---|
| Characteristic / Application | Capacitive rod probe |
| Specialities | Interface detection |
| Ambient temperature | -50 °C … +70 °C |
| Process temperature | -80 °C … +200 °C |
| Process pressure / max. overpressure limit | Vacuum … 100 bar |
| Main wetted parts | Insulation material: PTFE, PFA |
| Process connection | G 1/2 … 1 1/2 |
| Process connection hygienic | Tri-Clamp ISO2852 gap free plated |
| Sensor length | Total length of probe: max 6 m (20 ft) |
| Communication | 2- wire 19-253 VAC |
| Certificates / Approvals | ATEX, FM, CSA, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI, EAC |
| Safety approvals | Overfill prevention WHG |
| Design approvals | EN 10204-3.1 |
| Marine approval | GL/ ABS/ DNV |
| Options | Inactive length |
| Components | Transmitter |
| Application limits | Notice the pressure and temperature derating. |
