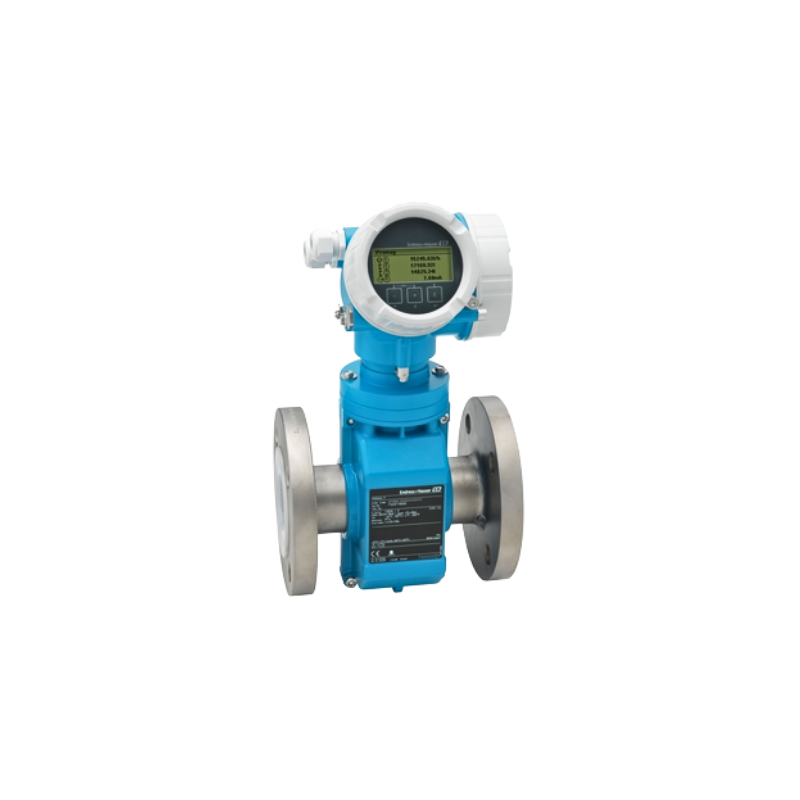

E+H Proline Promag P 200 5P2B electromagnetic flowmeter
$4,000.00
The Proline Promag P 200 is an advanced electromagnetic flowmeter designed for demanding process applications across various industries. Building upon the proven Promag platform, this model offers enhanced measurement performance and comprehensive diagnostic capabilities for optimal process control. Its robust construction ensures reliable operation in challenging environments, while the advanced sensor technology provides exceptional accuracy for conductive liquids. With easy integration into modern control systems and flexible communication options, the Promag P 200 delivers superior performance for chemical processing, water management, and industrial applications where precise flow measurement is critical.
Field of application
Promag P is dedicated to chemical and process applications with corrosive liquids and high medium temperatures. With genuine loop-powered technology, Promag P 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas thanks to its intrinsically safe design (Ex ia). Heartbeat Technology enables process safety at all times.
-
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
-
Dedicated to chemical and process applications with corrosive liquids and high medium temperatures
Benefits
-
Versatile applications – wide variety of wetted materials
-
Energy-saving flow measurement – no pressure loss due to cross-section constriction
-
Maintenance-free – no moving parts
-
Convenient device wiring – separate connection compartment
-
Safe operation – no need to open the device due to display with touch control, background lighting
-
Integrated verification – Heartbeat Technology
| Nominal diameter range | DN 15 to 200 (½ to 8") |
|---|---|
| Wetted materials | Liner: PFA; PTFE |
| Measured variables | Volume flow, mass flow |
| Max. measurement error | Volume flow: ±0.5 % o.r. ± 2 mm/s (0.08 in/s) |
| Measuring range | 4 dm3/min to 1100 m3/h (1 to 4850 gal/min) |
| Max. process pressure | PN 40, Class 300, 20K |
| Medium temperature range | Liner material PFA: –20 to +150 °C (–4 to +302 °F) |
| Ambient temperature range | Flange material carbon steel: –10 to +60 °C (+14 to +140 °F) |
| Sensor housing material | AlSi10Mg, coated |
| Transmitter housing material | AlSi10Mg, coated |
| Degree of protection | IP66/67, type 4X enclosure |
| Display/Operation | 4‐line backlit display with touch control (operation from outside) |
| Outputs | 4‐20 mA HART (passive) |
| Digital communication | HART, PROFIBUS PA, FOUNDATION Fieldbus |
| Power supply | DC 18 to 35 V (4‐20 mA HART with/without pulse/frequency/switch output) |
| Hazardous area approvals | ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, JPN, UK Ex |
| Product safety | CE, C-Tick |
| Functional safety | Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511 |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) |
| Pressure approvals and certificates | CRN, PED |
| Material certificates | 3.1 material |
| Hygienic approvals and certificates | Drinking water approvals: ACS, NSF 61 |
