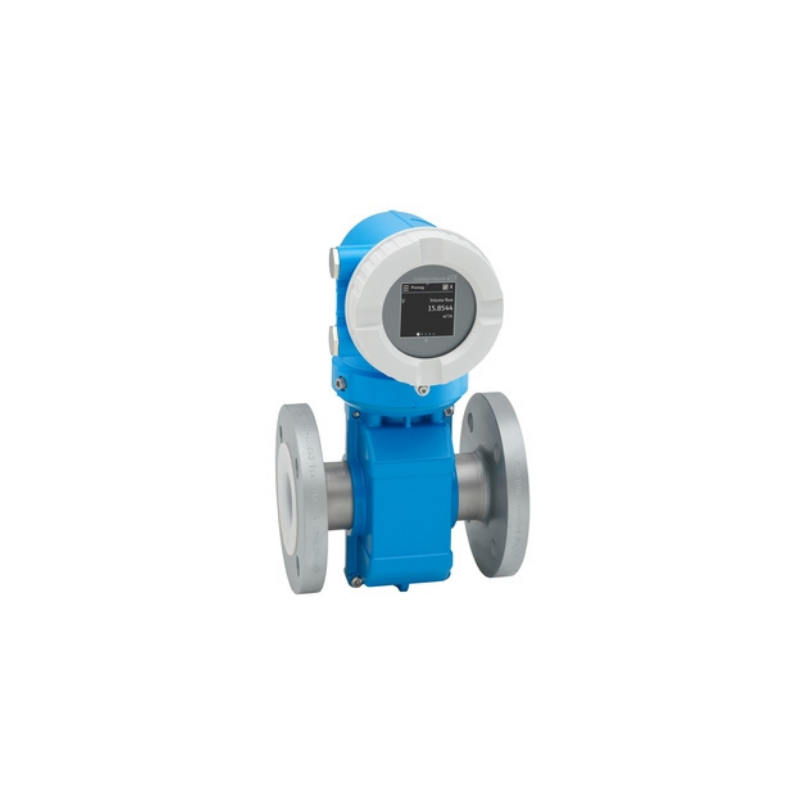

Proline Promag P 10 electromagnetic flowmeter

E+H Proline Promag P 10 5PBB electromagnetic flowmeter

$2,000.00

The Proline Promag P 10 is a compact and economical electromagnetic flowmeter designed for basic process applications. This entry-level instrument provides reliable measurement of conductive liquids in simple industrial processes. Featuring a space-saving design and straightforward installation, it offers an affordable solution where advanced features are not required. The flowmeter maintains the quality and reliability of the Promag series while focusing on essential functionality. Ideal for water distribution, HVAC systems, and basic industrial applications, the Promag P 10 delivers dependable performance for applications where simple, cost-effective flow monitoring is sufficient.

TI Proline Promag P 10

Category: Tag: Brand:

Field of application

Promag P is dedicated to chemical and process applications with corrosive liquids and high medium temperatures. With its straightforward hard- and software design, Promag P 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables safe processes.

  • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.

  • Dedicated to chemical and process applications with corrosive liquids.

Benefits

  • Diverse applications – wide variety of wetted materials

  • Energy-saving flow measurement – no pressure loss due to cross section constriction

  • Maintenance-free – no moving parts

  • Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen

  • Simple, time-saving commissioning – guided parameterization in advance and in the field

  • Integrated verification – Heartbeat Technology

Nominal diameter range

DN 15 to 600 (½ to 24")
Wetted materials

Liner: PFA; PTFE
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium
Measured variables

Volume flow, conductivity, mass flow
Max. measurement error

Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
Measuring range

4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)
Max. process pressure

PN 40, Class 300, 20K
Medium temperature range

Liner material PFA: –20 to +150 °C (–4 to +302 °F)
Liner material PTFE: –40 to +130 °C (–40 to +266 °F)
Ambient temperature range

Flange material carbon steel: –10 to +60 °C (+14 to +140 °F)
Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)
Sensor housing material

DN 15 to 300 (½ to 12""): AlSi10Mg, coated
DN 350 to 600 (14 to 24""): Carbon steel with protective varnish
Transmitter housing material

AlSi10Mg, coated
Degree of protection

Standard: IP66/67, Type 4X enclosure
Display/Operation

2.4" LCD display with touch & auto rotate; Configuration and operation via Bluetooth technology possible
Outputs

4-20 mA HART (active/passive), Pulse/frequency/switch output
Modbus RS485, 4-20 mA
Digital communication

HART, MODBUS RS485
Power supply

DC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous area approvals

ATEX, IECEx, cCSAus, EAC, NEPSI, INMETRO, IND Ex, KC, JPN, UK Ex
Metrological approvals and certificates

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Pressure approvals and certificates

PED, CRN
Material certificates

3.1 material
Hygienic approvals and certificates

Driking water approvals: ACS; NSF61, WRAS
