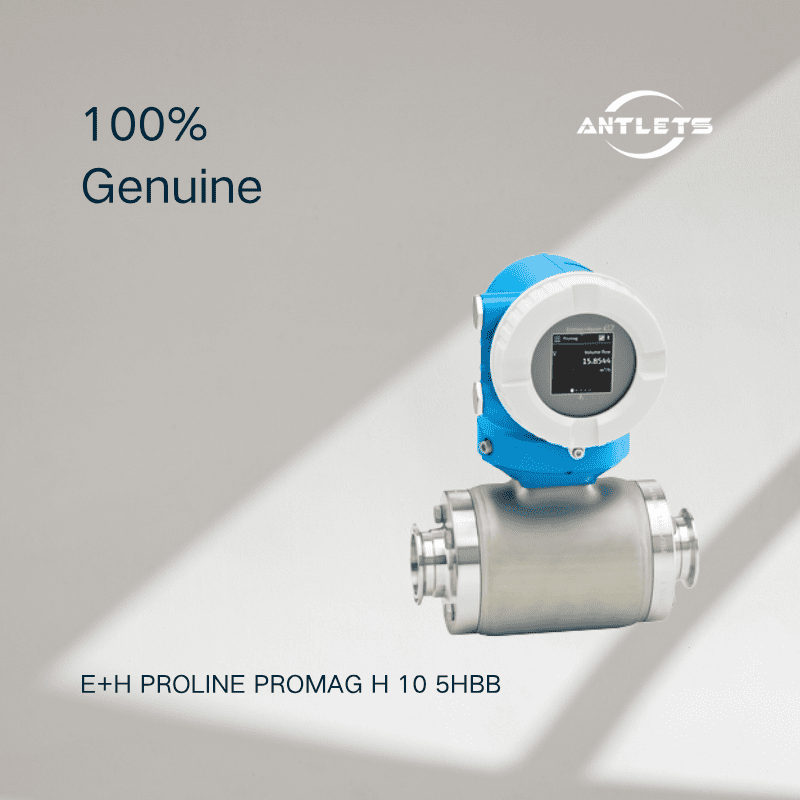

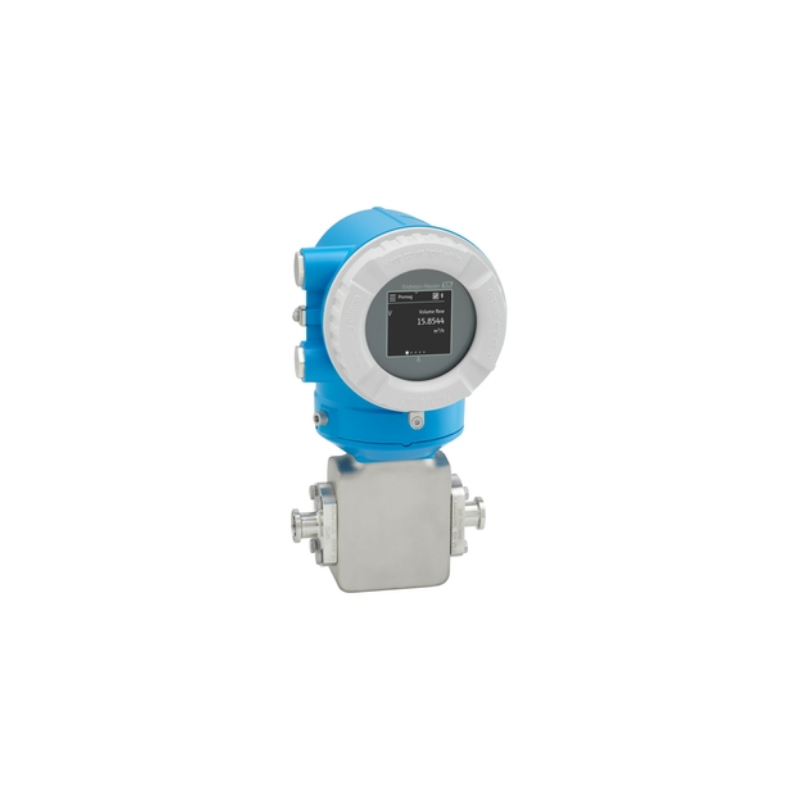

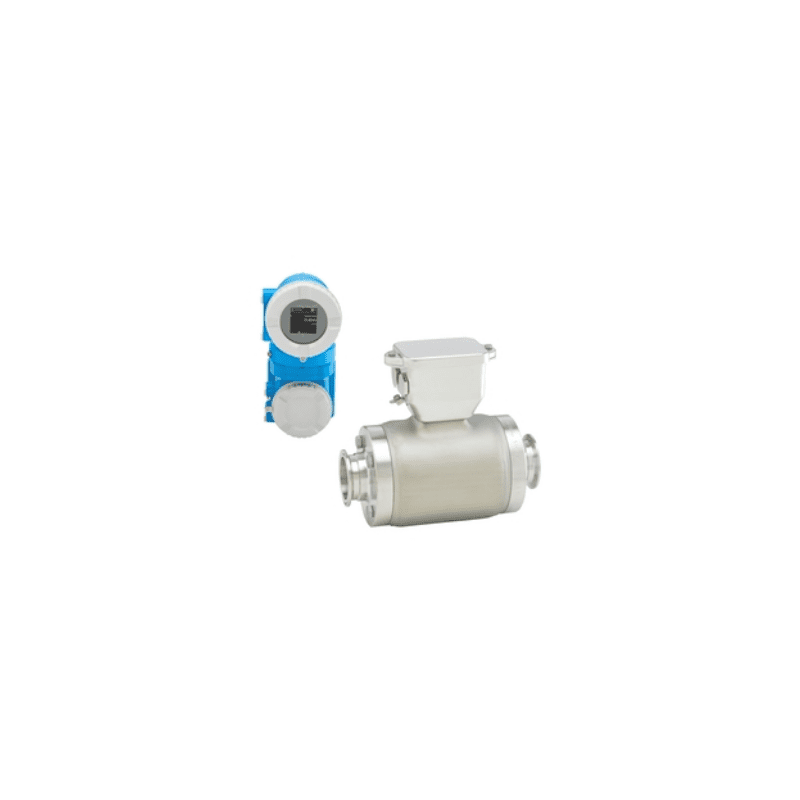

E+H Proline Promag H 10 5HBB electromagnetic flowmeter
$1,700.00
The Proline Promag H 10 is a compact and cost-effective electromagnetic flowmeter designed for basic hygienic applications in food, beverage, and pharmaceutical industries. This entry-level instrument provides reliable flow measurement while maintaining essential sanitary standards with its crevice-free design and smooth surfaces. Easy to install and operate, it offers an economical solution for applications where advanced features are not required but basic hygienic requirements must be met. The flowmeter combines Promag series quality with straightforward functionality, making it ideal for simple sanitary processes, secondary lines, and budget-conscious hygienic applications.
Field of application
Promag H is the preferred sensor for hygienic applications in the food and beverage and life sciences industries. With its straightforward hard- and software design, Promag H 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables measurement reliability and extension of recalibration cycles.
-
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.
-
For applications with sanitary requirements
Benefits
-
Easy integration into your plant infrastructure with IO-link
-
Flexible installation concept – numerous hygienic process connections
-
Energy-saving flow measurement – no pressure loss due to cross section constriction
-
Maintenance-free – no moving parts
-
Optimum usability – display with touch screen (HART and Modbus RS485 communication only) or operation with mobile devices and SmartBlue app
-
Simple, time-saving commissioning – guided parameterization in advance and in the field
-
Integrated verification – Heartbeat Technology
| Nominal diameter range | DN 2 to 150 (¹⁄₁₂ to 6") |
|---|---|
| Wetted materials | Liner: PFA |
| Measured variables | Volume flow, temperature, conductivity, mass flow, corrected volume flow, corrected |
| Max. measurement error | Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) |
| Measuring range | 0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min) |
| Max. process pressure | PN 40, Class 150, 20K |
| Medium temperature range | –20 to +150 °C (–4 to +302 °F) |
| Ambient temperature range | Ambient temperature range |
| Sensor housing material | 1.4301 (304), corrosion resistant |
| Transmitter housing material | AlSi10Mg, coated |
| Display/Operation | 2.4" LCD display with touch & auto rotate; Configuration and operation via Bluetooth technology possible |
| Degree of protection | Standard: IP66/67, type 4X enclosure |
| Outputs | 4-20 mA HART (active/passive), Pulse/frequency/switch output |
| Digital communication | HART, MODBUS RS485, IO-Link |
| Power supply | DC 24 V |
| Hazardous area approvals | CSA, GP, KC |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) |
| Pressure approvals and certificates | PED, CRN |
| Material certificates | 3.1 material |
| Hygienic approvals and certificates | Sanitary approval: EHEDG, 3-A, liner and seals acc. to FDA, cGMP |
